Instrument Panel (IP) - Trim Panel Replacement - Center

Trim Panel Replacement - Instrument Panel (I/P) Center

Removal Procedure





1. Remove the radio. Refer toRadio Replacement Entertainment.
2. Remove the HVAC control. Refer toHVAC Control Module Replacement HVAC Systems with A/C - Automatic (Includes Electronic and Dual Zone).
3. Remove the center HVAC air outlet. Refer toDeflector Replacement - Instrument Panel Air - Center .

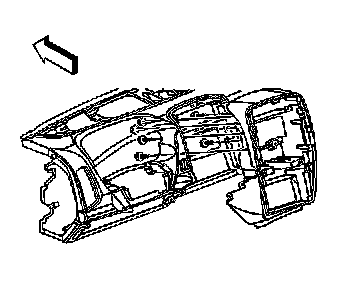

4. Remove the screws securing the I/P center trim panel.



Installation Procedure





1. Position the center trim panel to the I/P.

Notice: Refer toFastener Notice in Cautions and Notices.

2. Install the screws securing the I/P center trim panel.

Tighten the screws to 2 Nm (18 lb in).

3. Install the center HVAC air outlet. Refer toDeflector Replacement - Instrument Panel Air - Center .
4. Install the HVAC control. Refer toHVAC Control Module Replacement HVAC Systems with A/C - Automatic (Includes Electronic and Dual Zone).
5. Install the radio. Refer toRadio Replacement Entertainment.
