Home >> Cadillac >> 2003 >> CTS V6-3.2L VIN N >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Locations

Headlamp: Locations

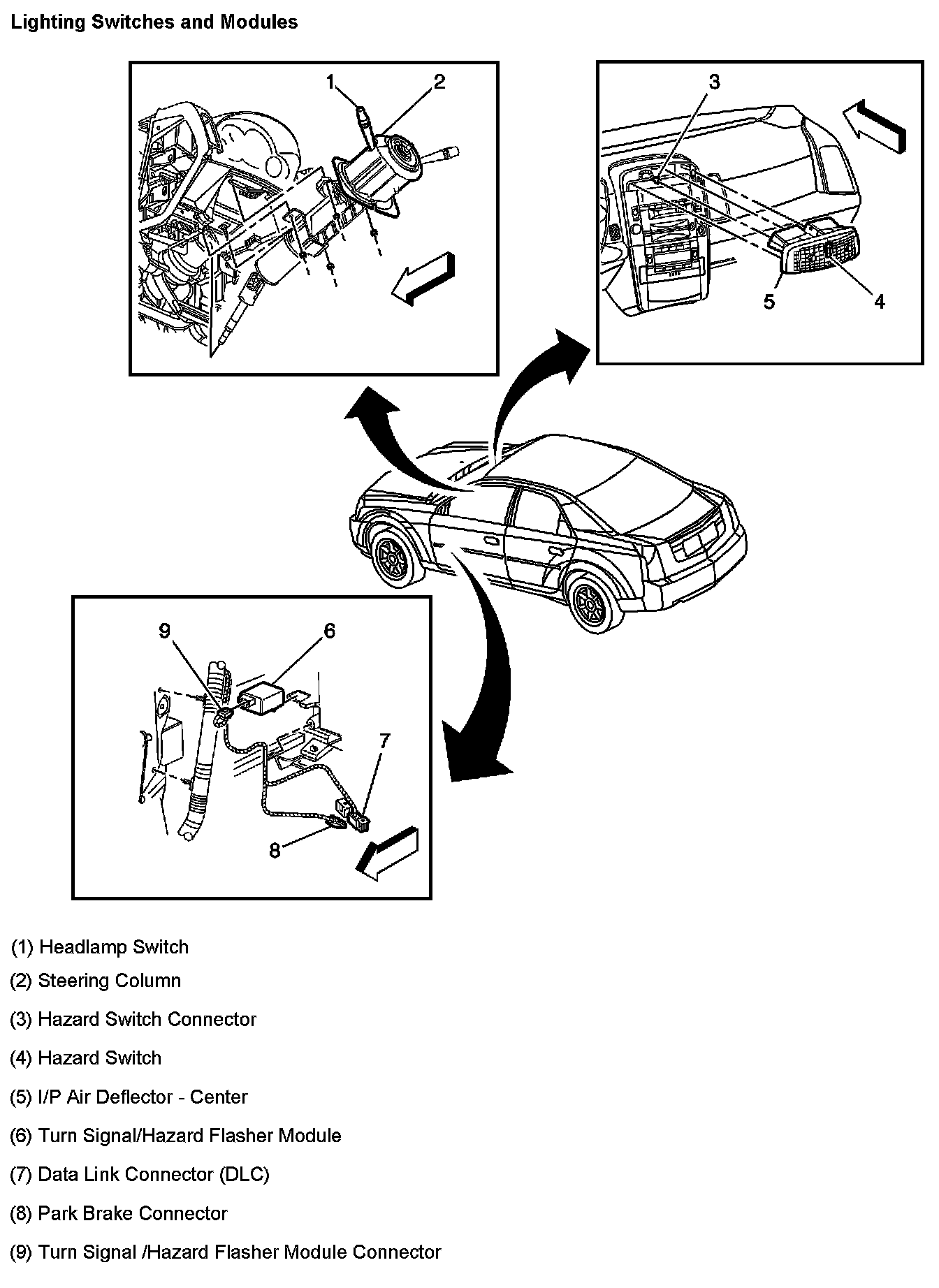

Lighting Switches And Modules:

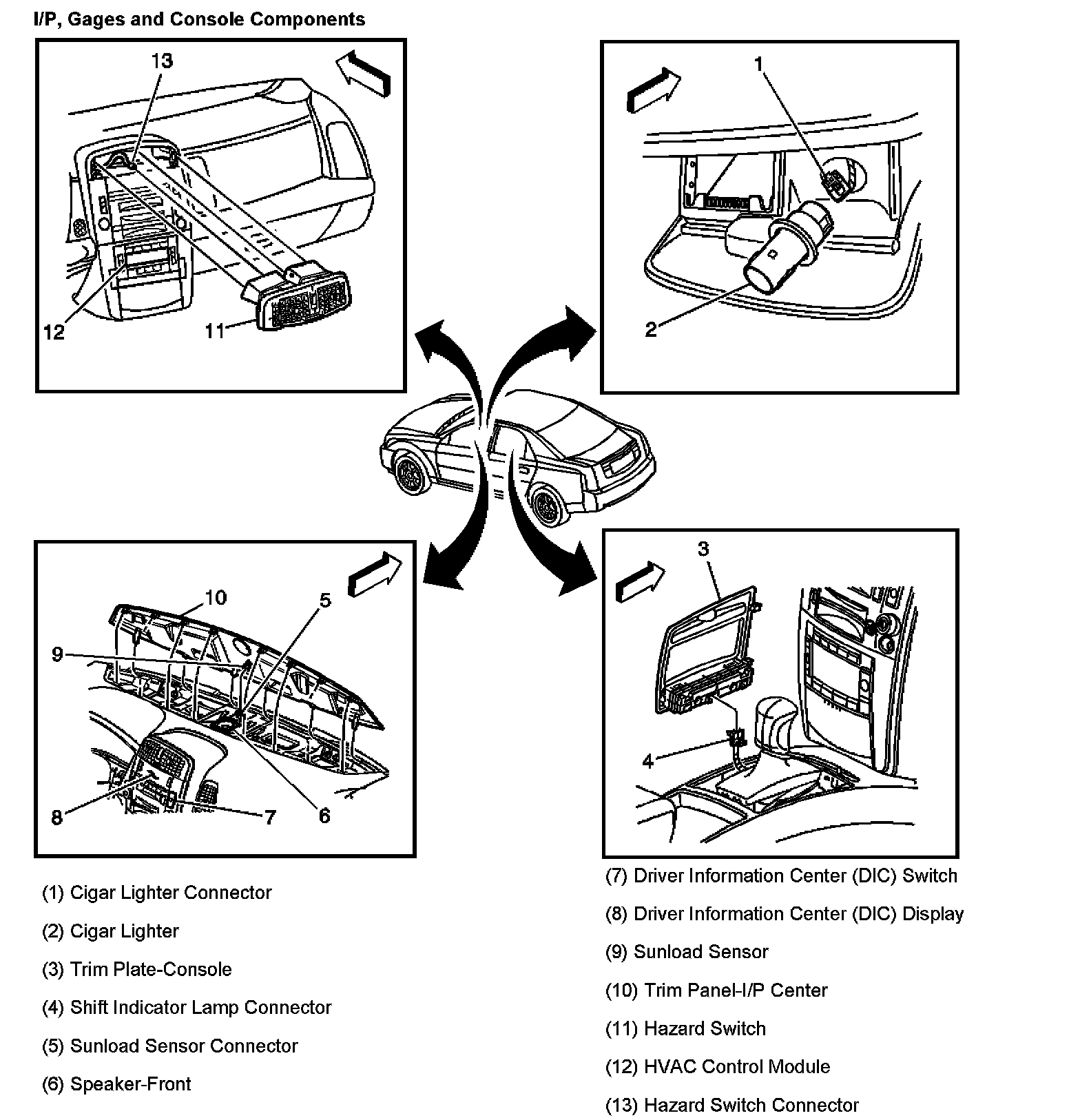

I/P, Gages And Console Components:
