Front

Wheel Bearing/Hub Replacement- Front

Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel.
3. Remove the brake rotor.

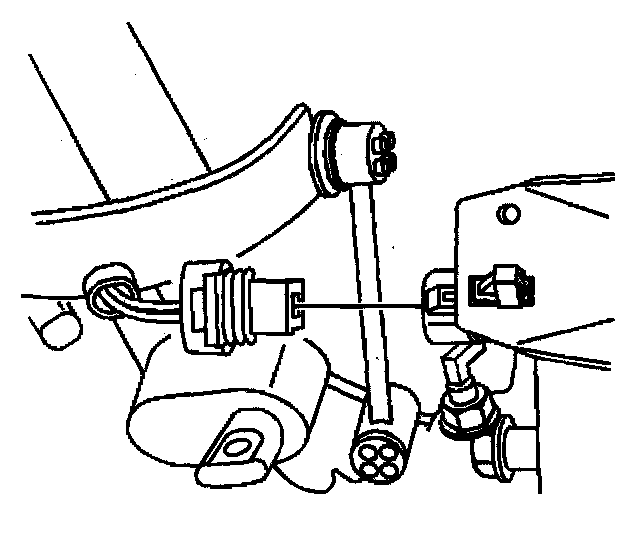

4. Disconnect the ABS electrical connector.
5. Remove the electrical connector from the splash shield.

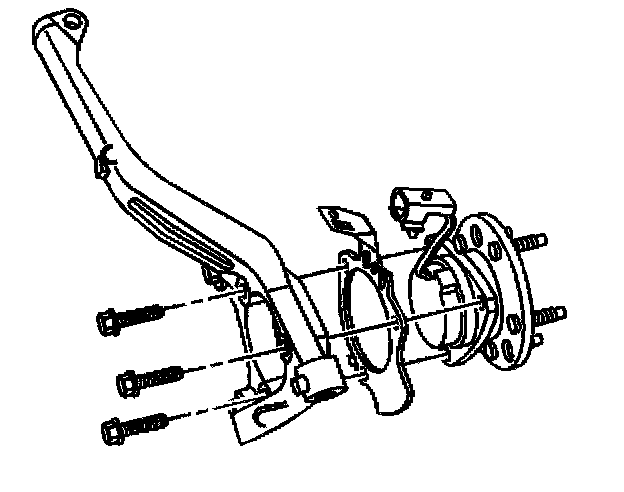

6. Remove the wheel bearing/hub mounting bolts.
7. Remove the wheel bearing/hub.

Installation Procedure





1. Install the wheel bearing/hub.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the wheel bearing/hub bolts.
^ Tighten the bolts to 135 Nm (100 ft. lbs.).

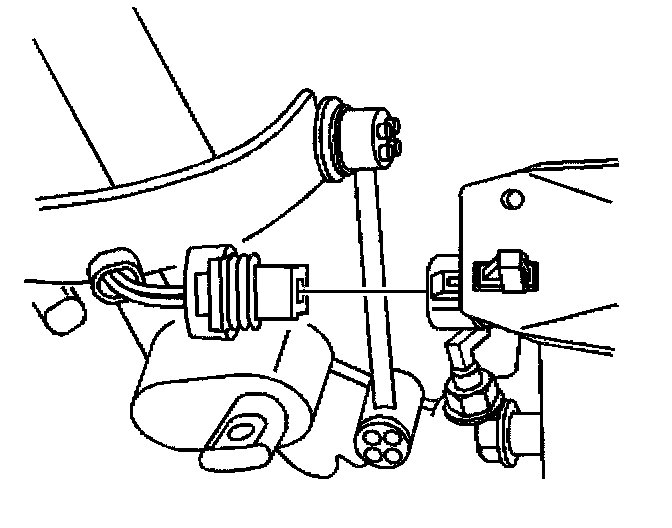

3. Connect the ABS electrical connector.
4. Install the brake rotor.
5. Install the tire and wheel.
6. Lower the vehicle.
