Instruments - Revised Service Information
Bulletin No.: 03-08-49-007Date: May 23, 2003
SERVICE MANUAL UPDATE
Subject:
Revised Instrument Panel, Gages and Console Service Information
Models:
2003 Cadillac CTS
This bulletin is being issued to revise various service information in the Instrument Panel, Gages and Console sub-section of the Service Manual. Please replace the current information in the Service Manual with the following information.

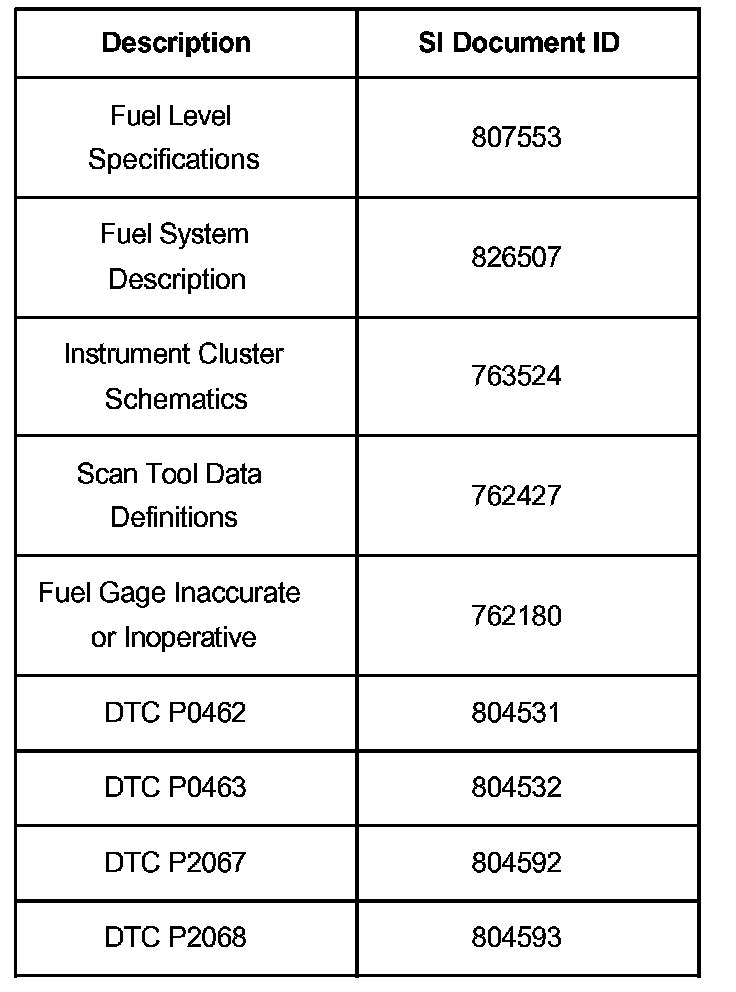

The following information has been updated within SI. If you are using a paper version of this Service Manual, please make a reference to this bulletin on the affected page.
The documents in SI have been revised to correct the on-vehicle location of the primary and secondary fuel tanks. The primary fuel tank should have been listed as being on the right hand (fuel fill) side of the vehicle. The secondary fuel tank should have been listed as being on the left hand (opposite the fuel fill) side of the vehicle.
