Floor Shift Control Replacement

Floor Shift Control Replacement
Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.

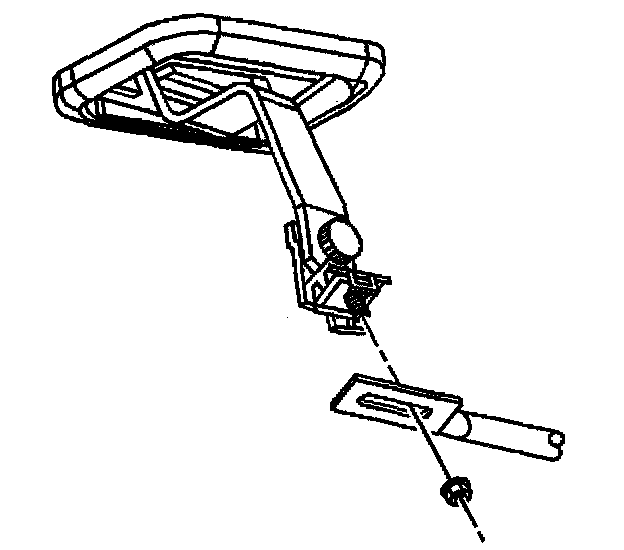

2. Remove the shift control linkage adjustment nut.
3. Disengage the shift control linkage rod from the shift control assembly.
4. Lower the vehicle.





5. Remove the shift control boot.
6. Remove the center console assembly.

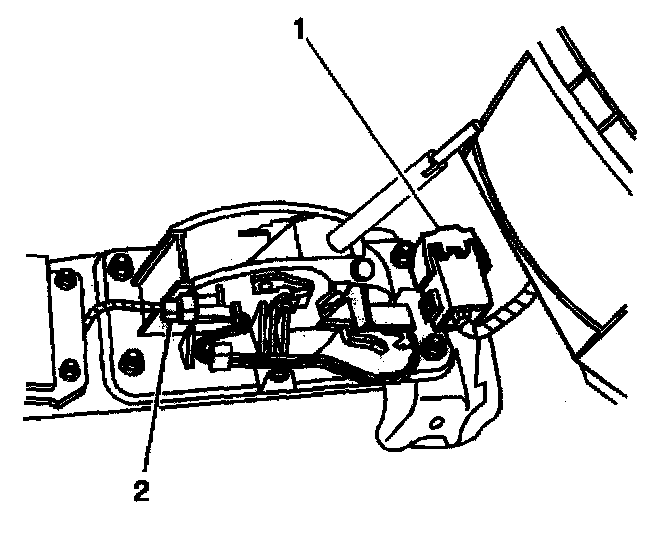

7. Remove the electrical connector (1) from the shift control assembly.
8. Disconnect the shift lock actuator electrical connector (2) at the shift control assembly.

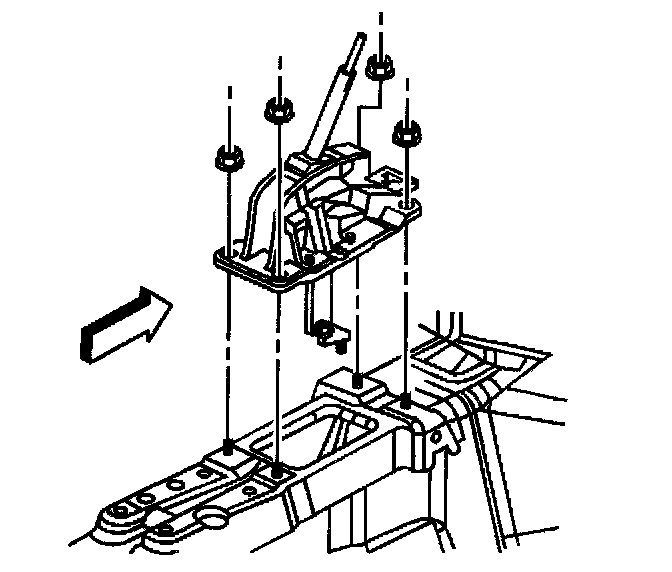

9. Remove the 4 nuts securing the shift control assembly to the tunnel reinforcement.
10. Remove the shift control assembly from the vehicle.

Installation Procedure

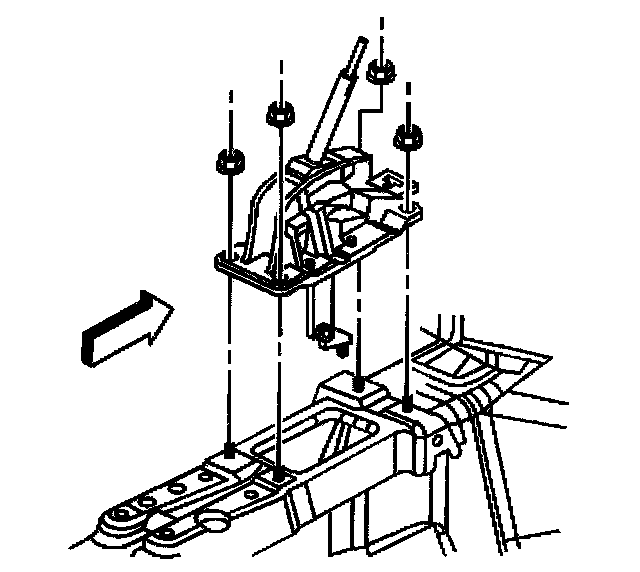

1. Install the shift control assembly to the tunnel reinforcement.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the 4 nuts securing the shift control assembly to the tunnel reinforcement.
Tighten the nuts to 12 Nm (106 inch lbs.).

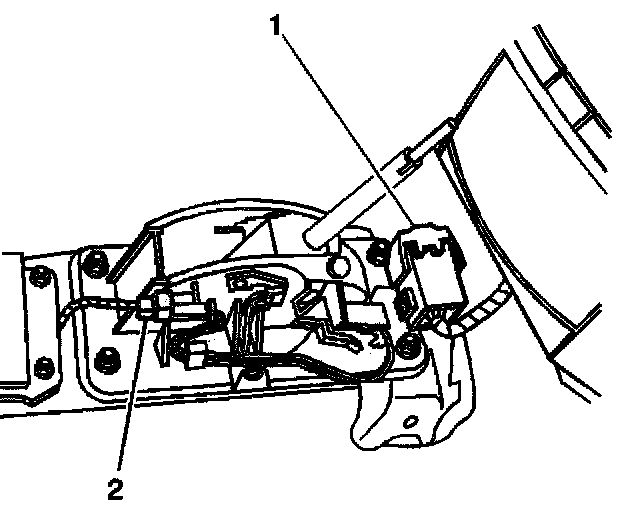

3. Install the electrical connector (1) to the shift control assembly.
4. Connect the shift lock actuator electrical connector (2) at the shift control assembly.
5. Install the center console assembly.
6. Install the shift control boot.
7. Raise and support the vehicle. Refer to Vehicle Lifting.

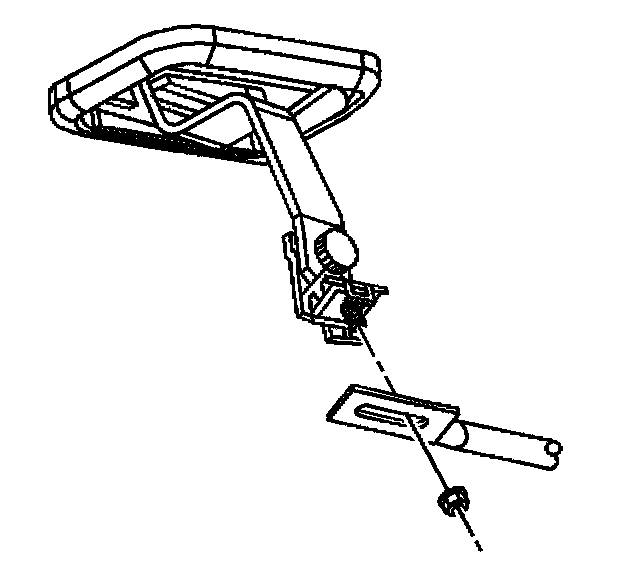

8. Connect the shift control linkage rod to the shift control assembly.
9. Install the shift control linkage adjustment nut finger tight.
10. Adjust the shift control linkage.
11. Lower the vehicle.
