Control Assembly, HVAC

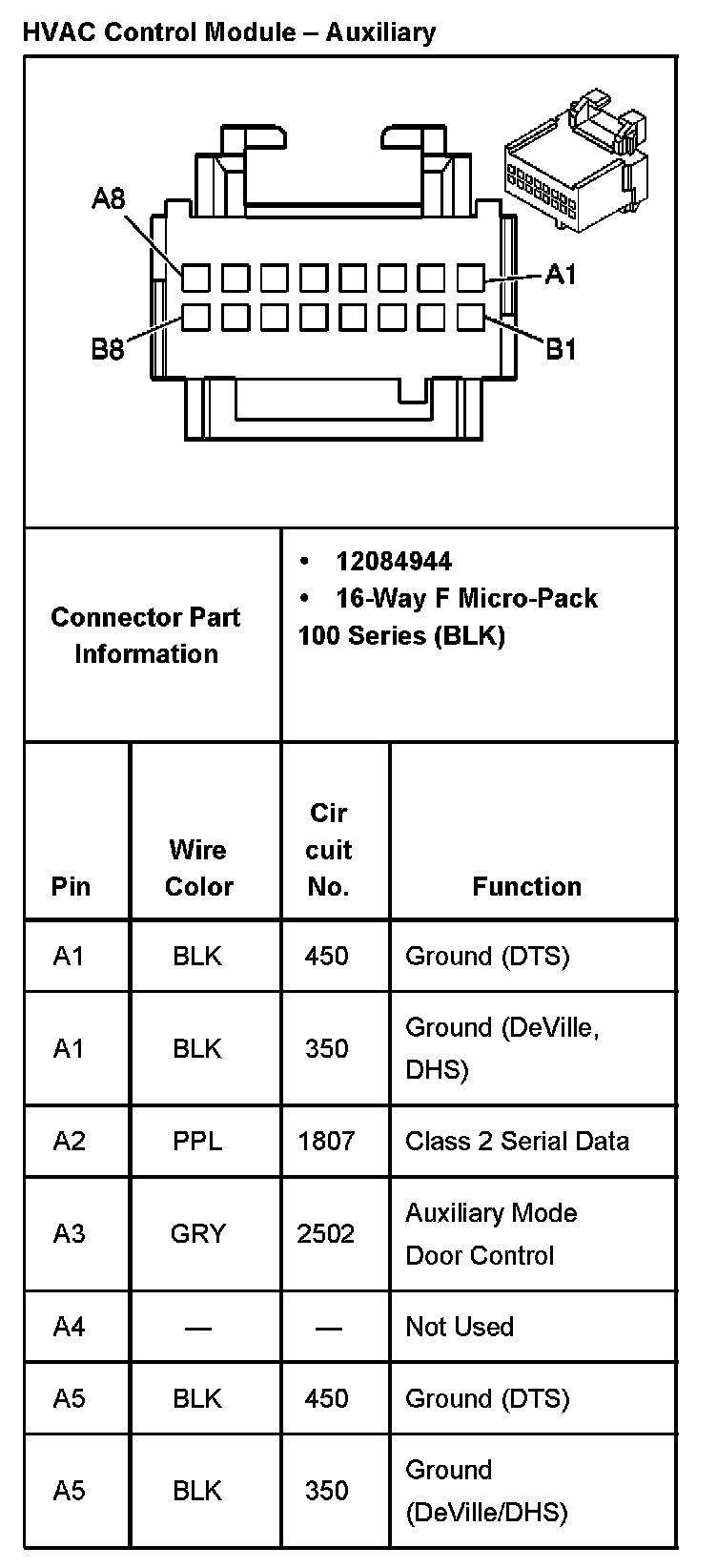

HVAC Control Module - Auxiliary Part 1:

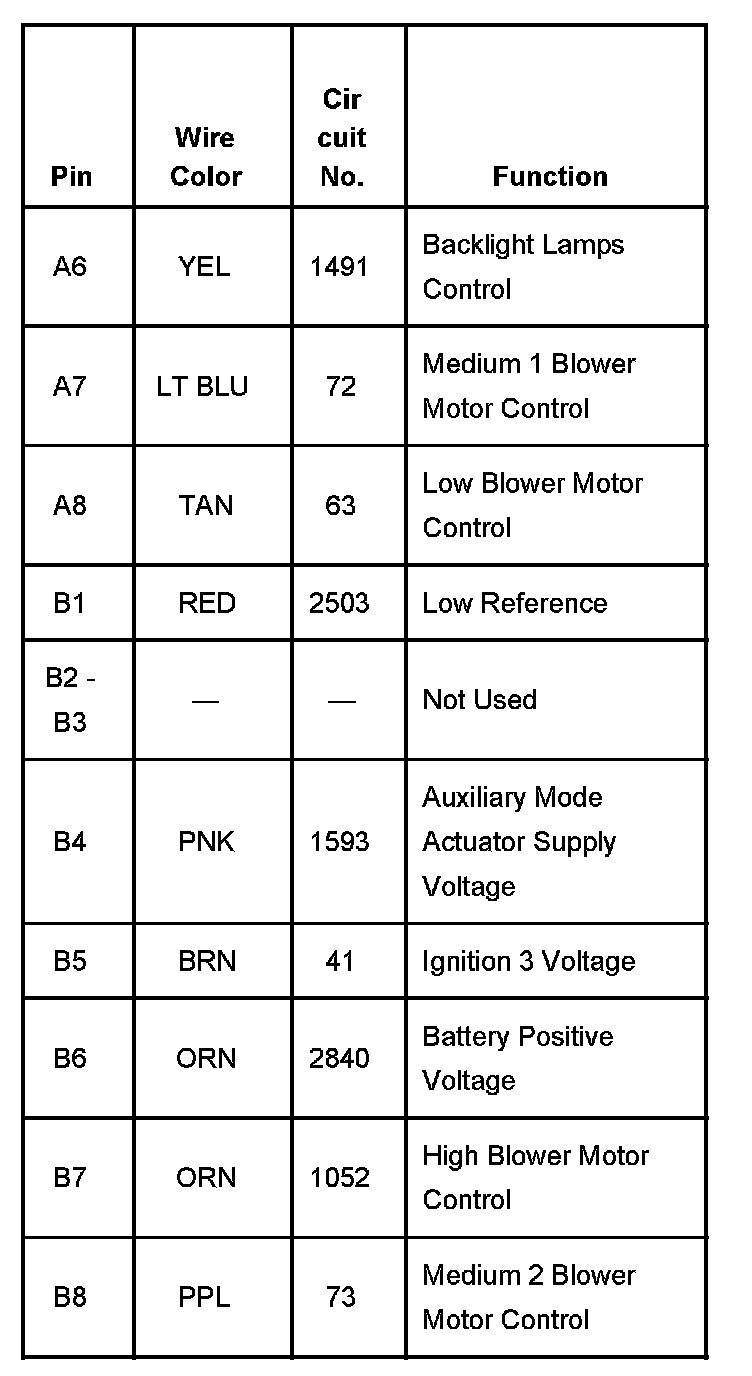

HVAC Control Module - Auxiliary Part 2:
