Power Seat Control Module

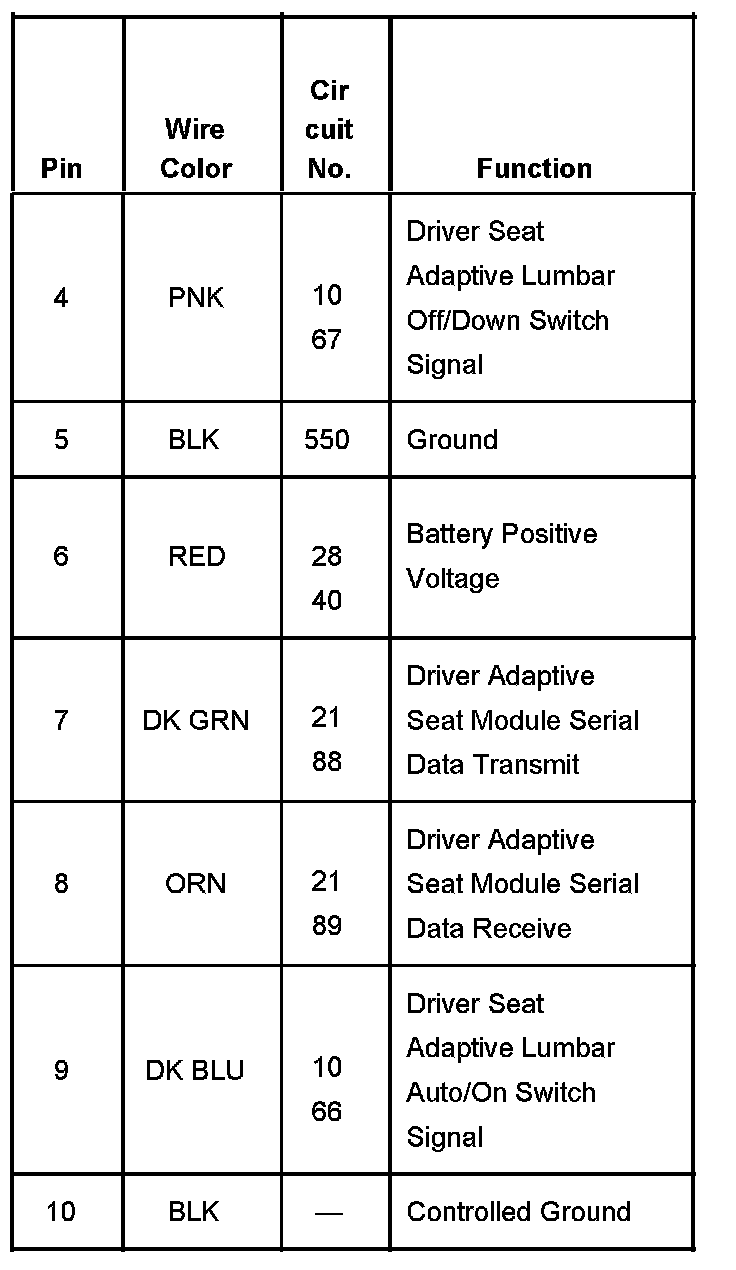

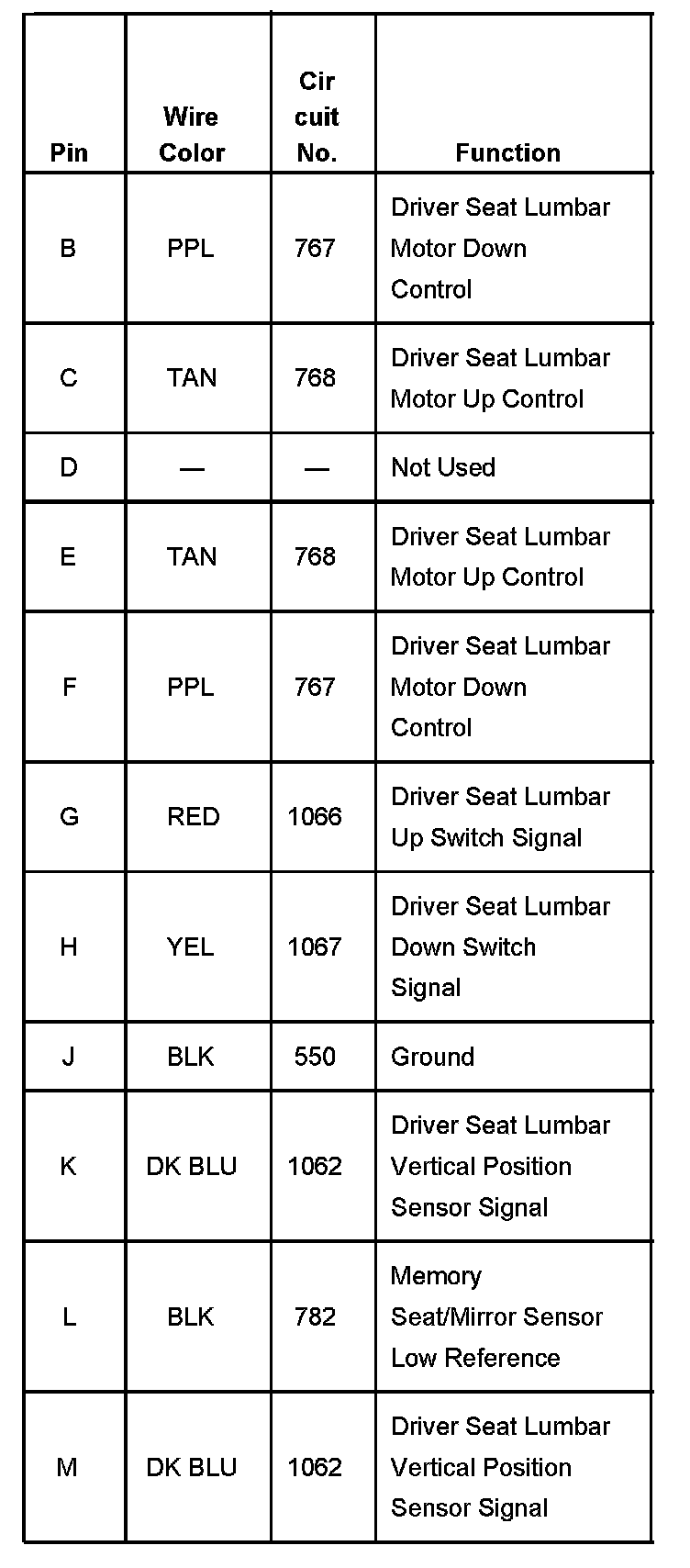

Adaptive Seat Lumbar Module - Driver (With RPO Code AC9) Part 1:

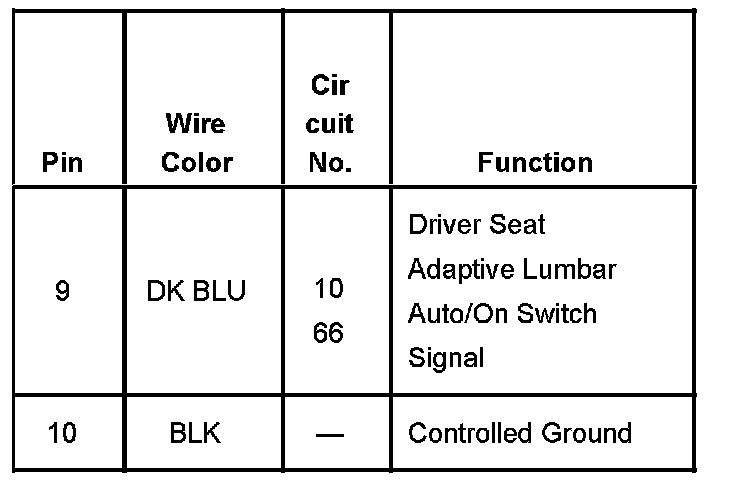

Adaptive Seat Lumbar Module - Driver (With RPO Code AC9) Part 2:

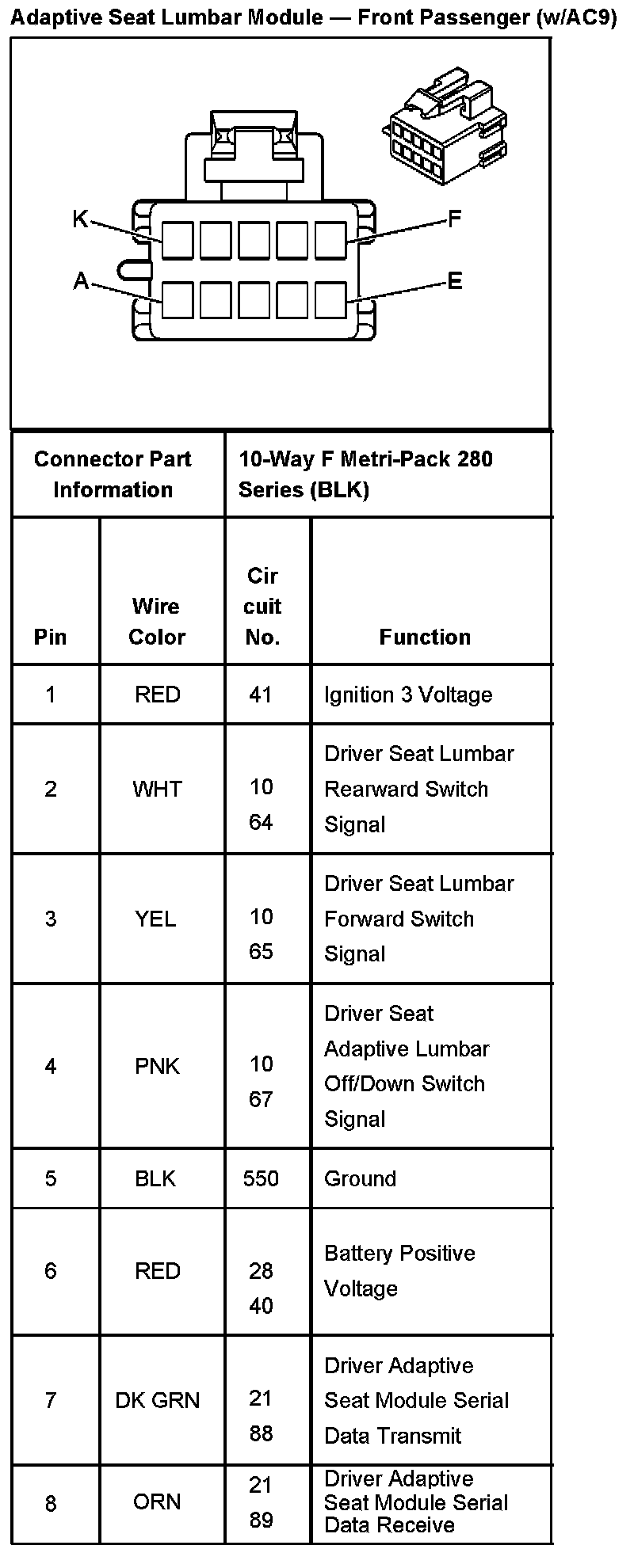

Adaptive Seat Lumbar Module - Front Passenger (With RPO Code AC9) Part 1:

Adaptive Seat Lumbar Module - Front Passenger (With RPO Code AC9) Part 2:

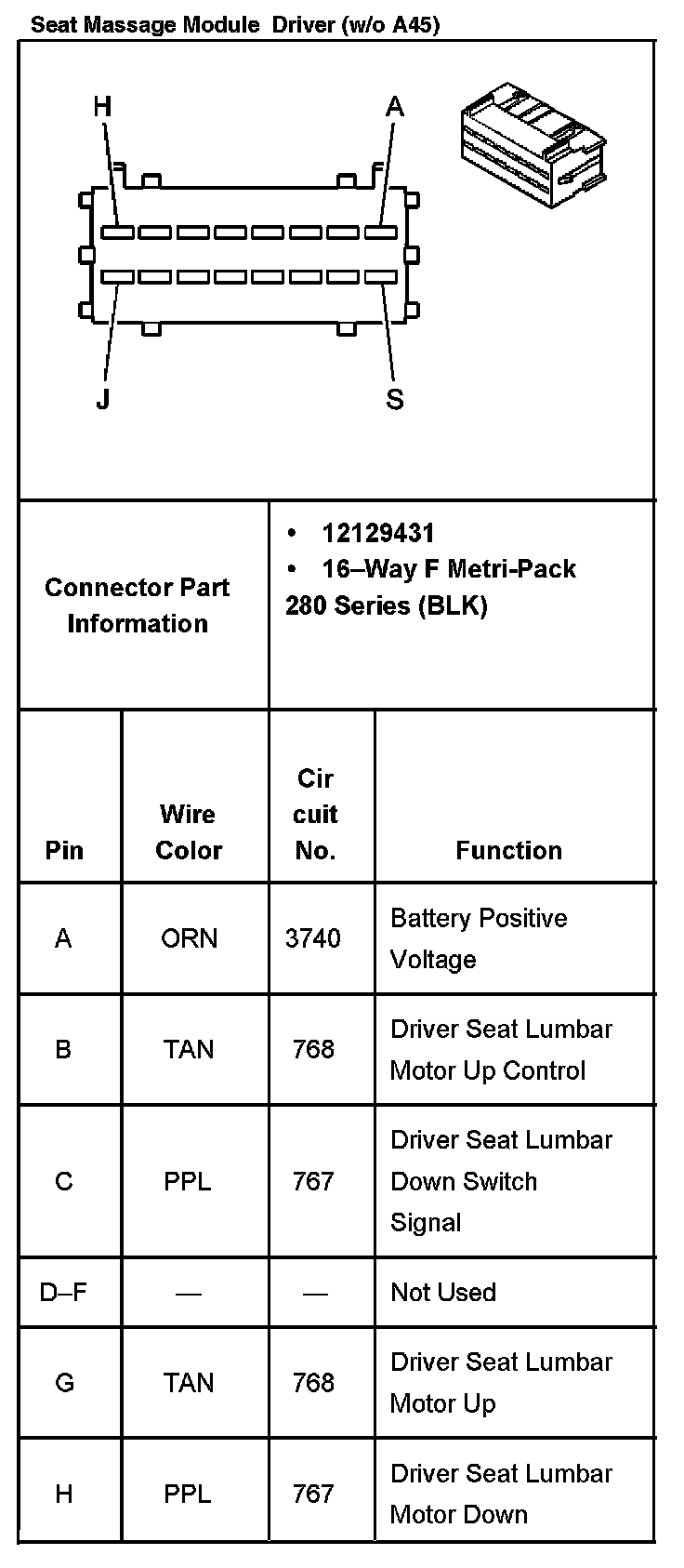

Seat Massage Module - Driver (Without RPO Code A45) Part 1:

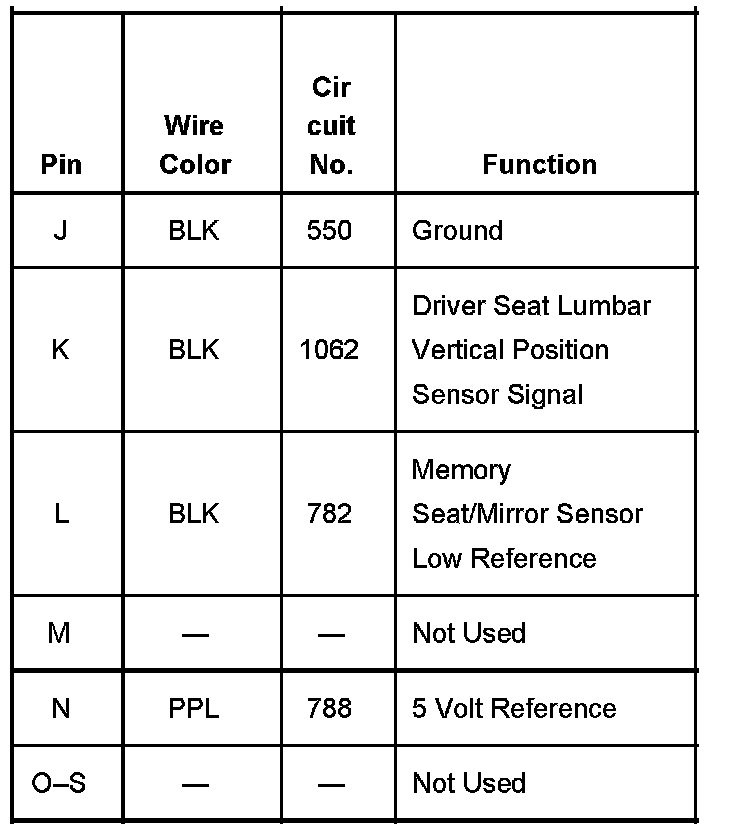

Seat Massage Module - Driver (Without RPO Code A45) Part 2:

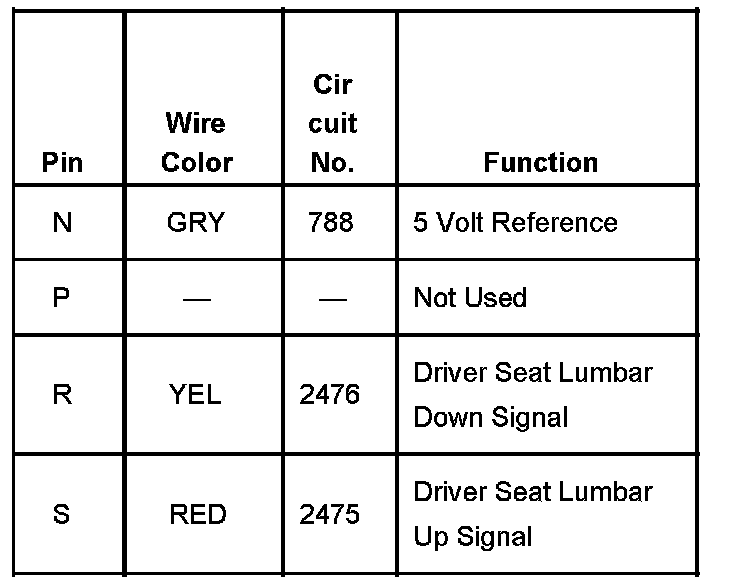

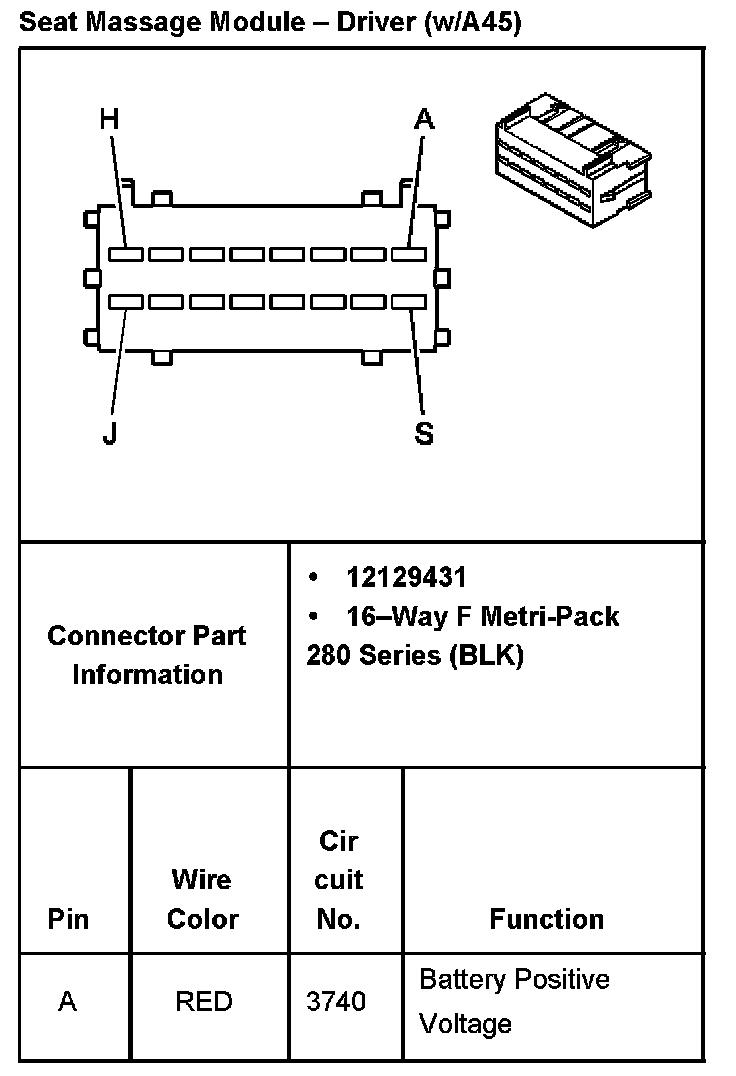

Seat Massage Module - Driver (With RPO Code A45) Part 1:

Seat Massage Module - Driver (With RPO Code A45) Part 2:

Seat Massage Module - Driver (With RPO Code A45) Part 3:

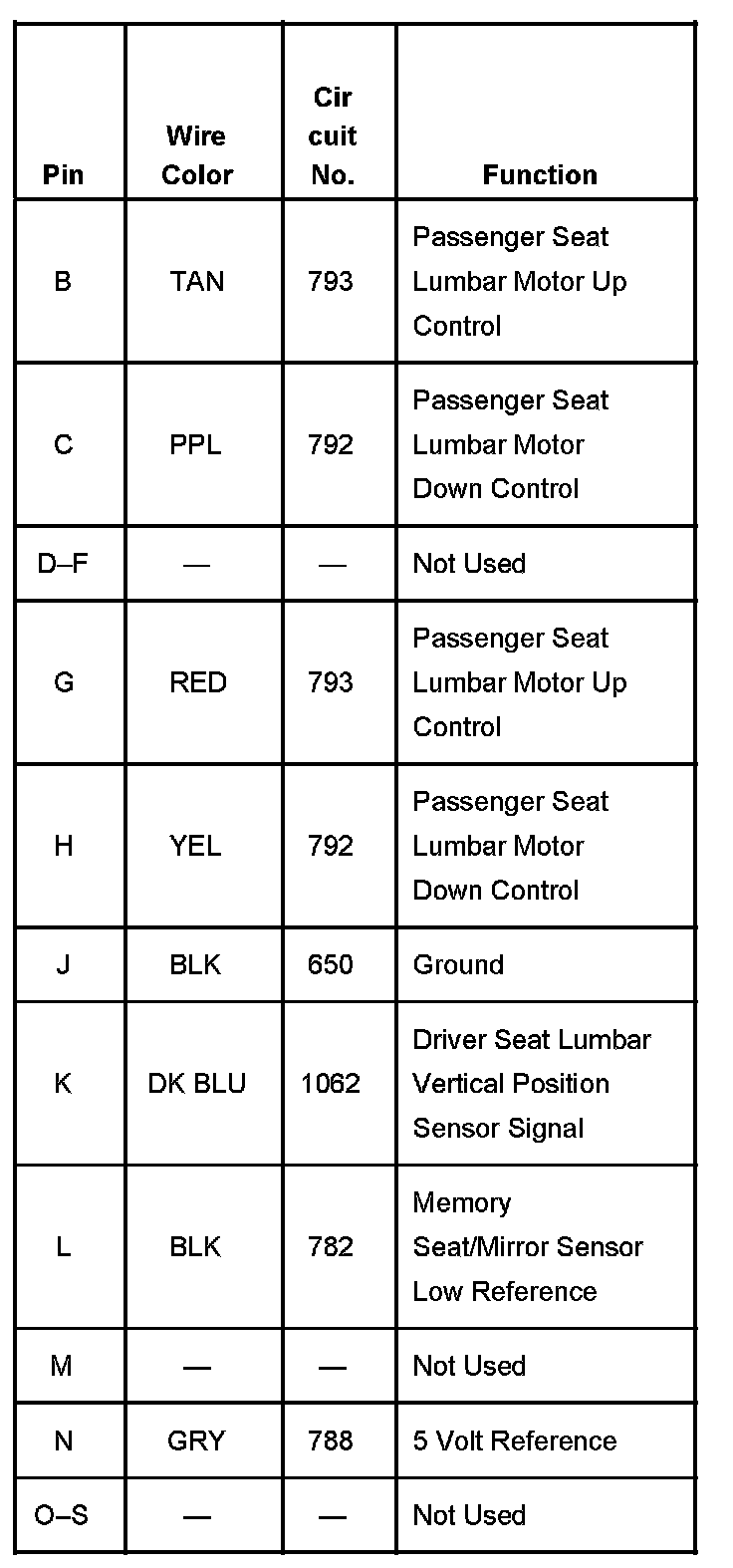

Seat Massage Module - Front Passenger (With RPO Code AM3) Part 1:

Seat Massage Module - Front Passenger (With RPO Code AM3) Part 2:
