Body Control Module

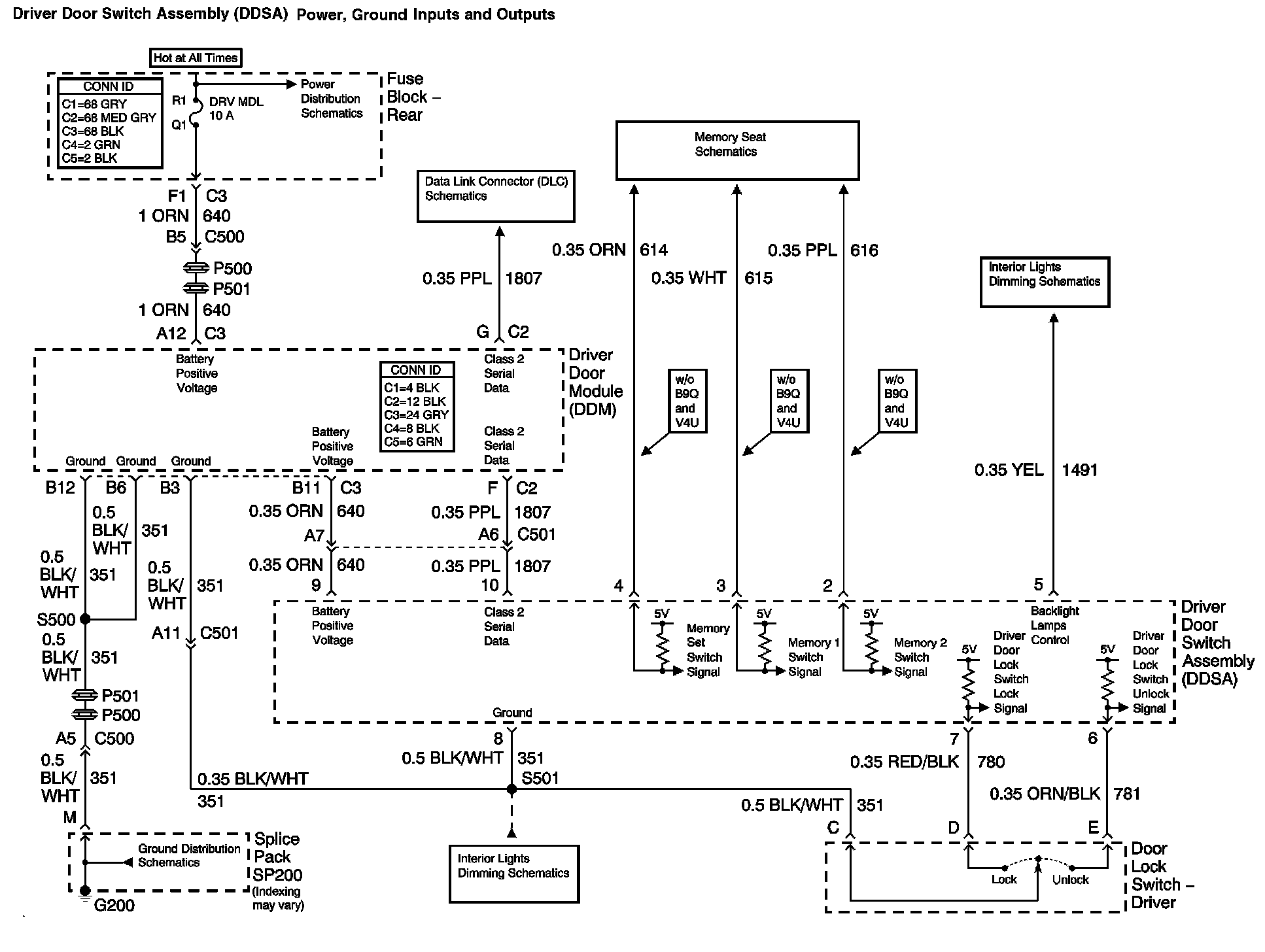

Driver Door Switch Assembly (DDSA) Power, Ground Inputs and Outputs:

Driver Door Switch Assembly (DDSA) Internal Details w/Memory (A45):

Driver Door Module (DDM) Power and Ground Input and Outputs 1 of 2:

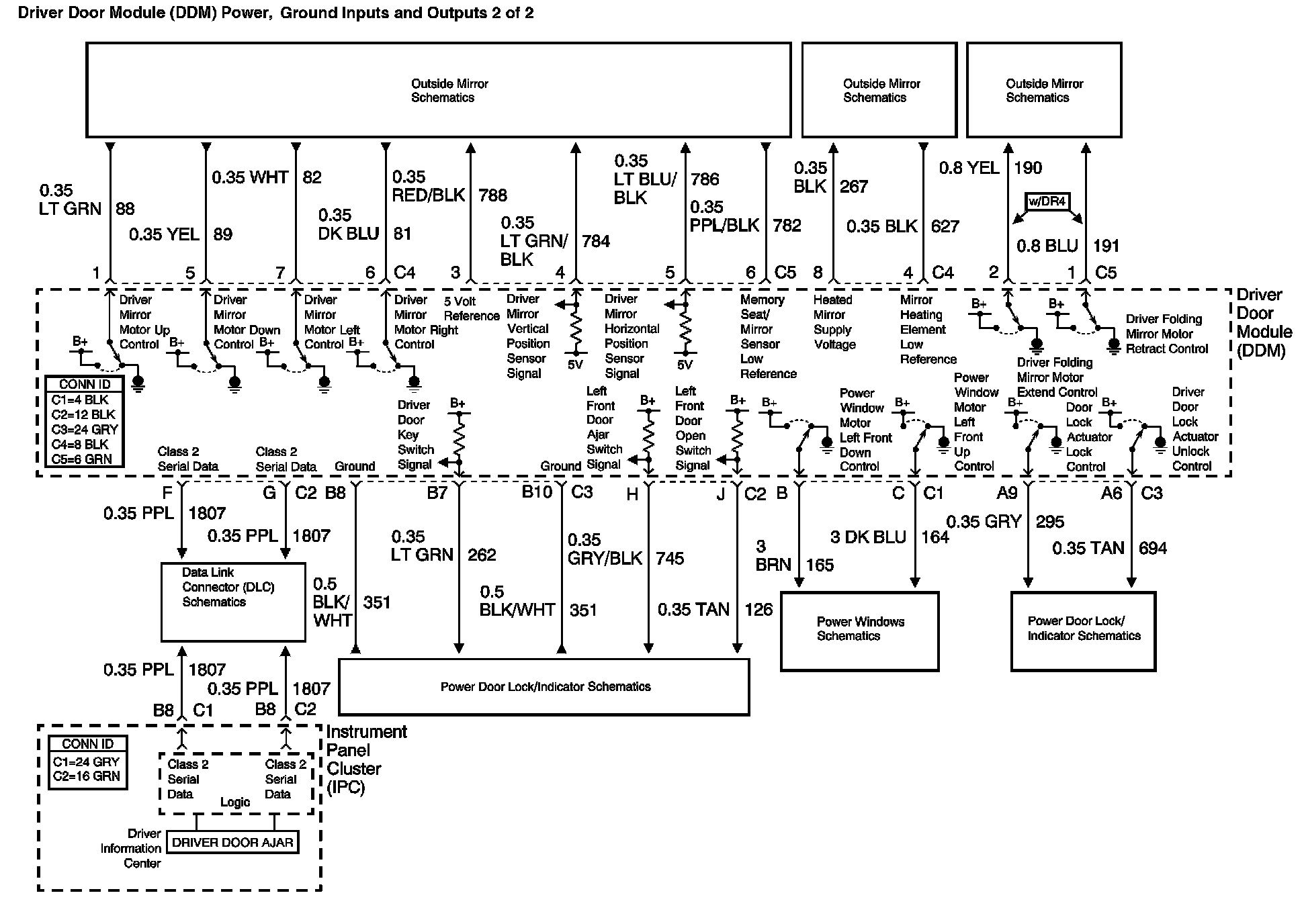

Driver Door Module (DDM) Power, Ground Inputs and Outputs 2 of 2:

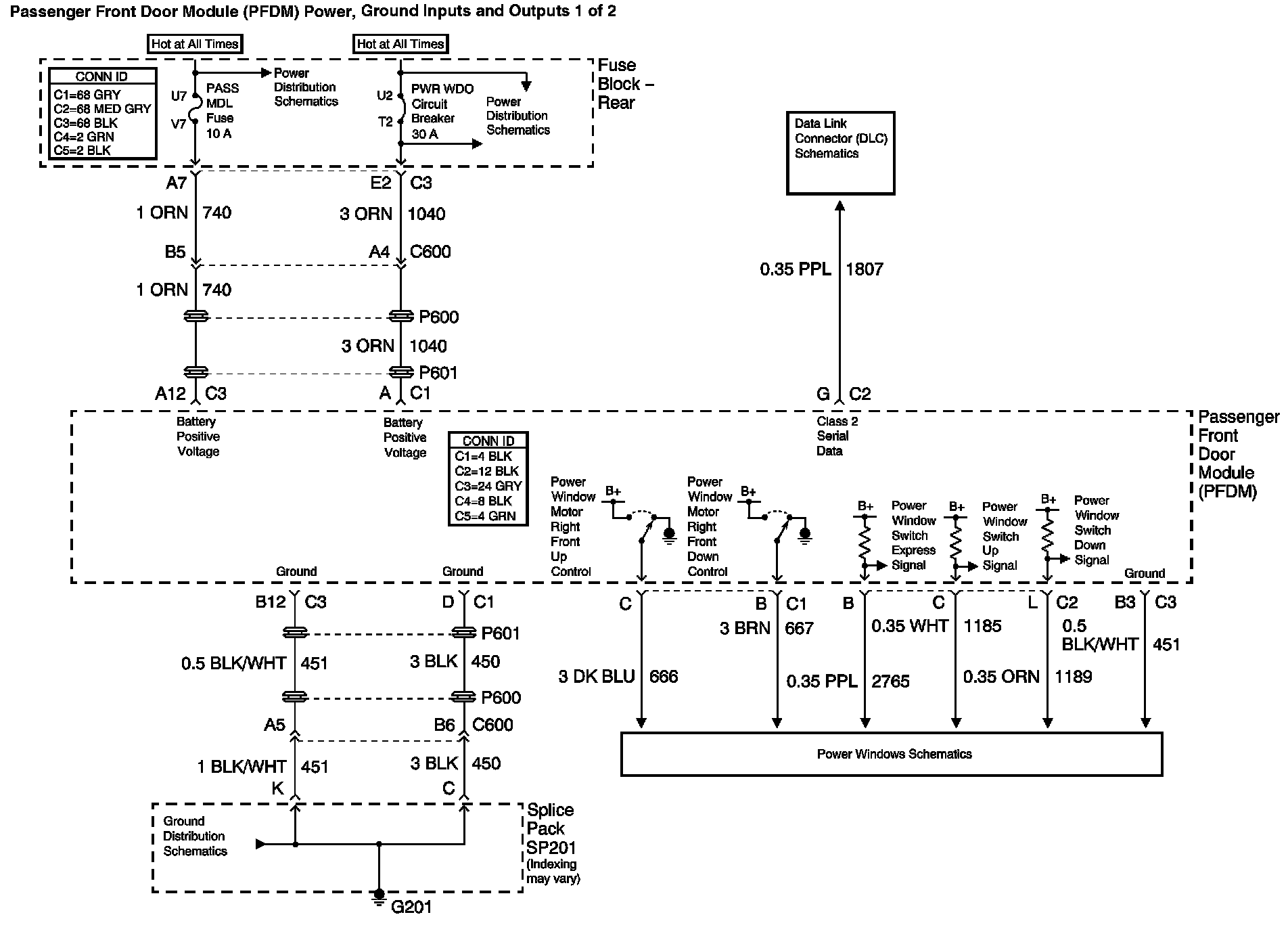

Passenger Front Door Module (PFDM) Power, Ground Inputs and Outputs 1 of 2:

Passenger Front Door Module (PFDM) Power, Ground Inputs and Outputs 2 of 2:

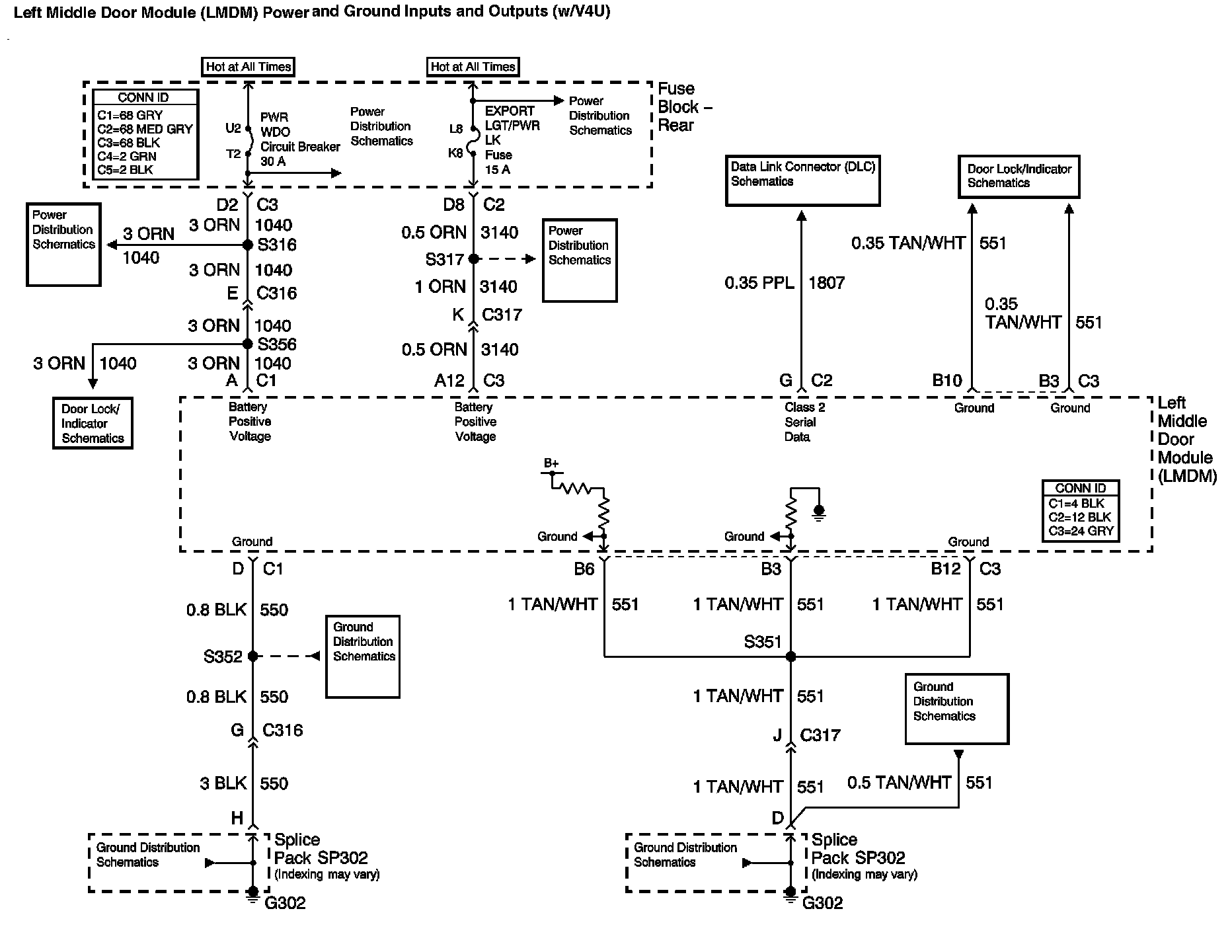

Left Middle Door Module (LMDM) Power and Ground Inputs and Outputs (w/V4U):

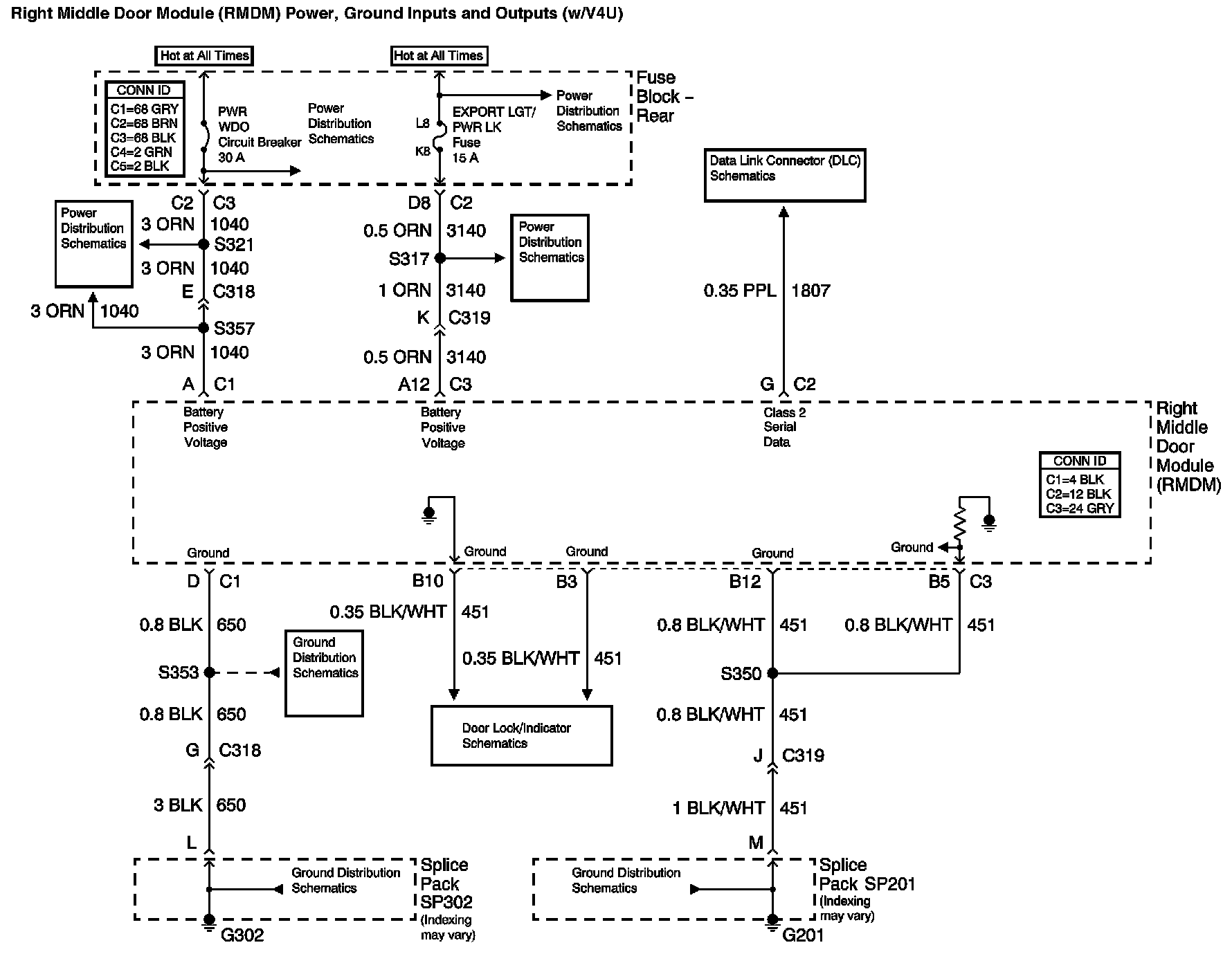

Right Middle Door Module (RMDM) Power, Ground Inputs and Outputs (w/V4U):

Left Rear Door Module (LRDM) Power, Ground Inputs and Outputs:

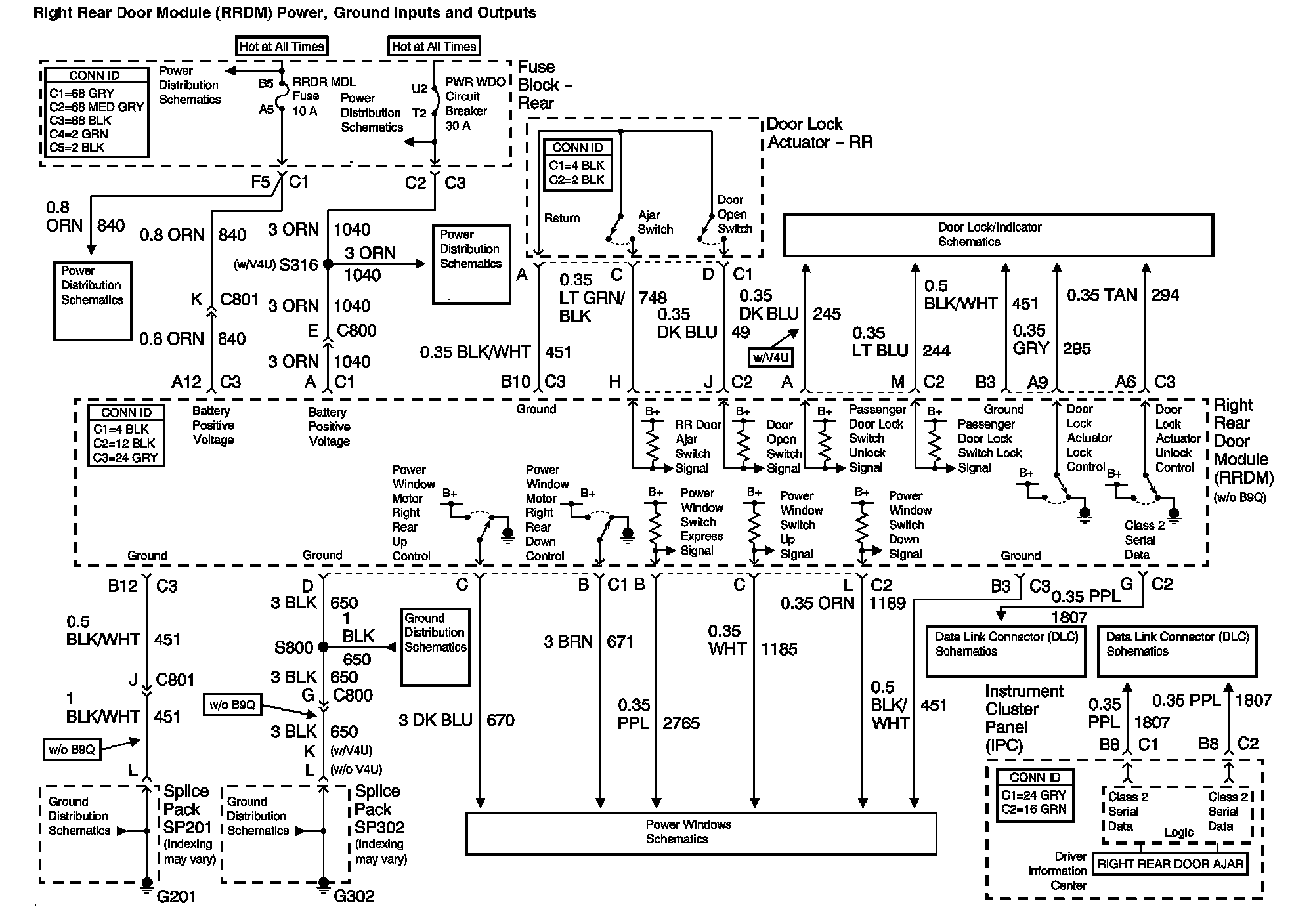

Right Rear Door Module (RRDM) Power, Ground Inputs and Outputs:
