Scan Tool Data List

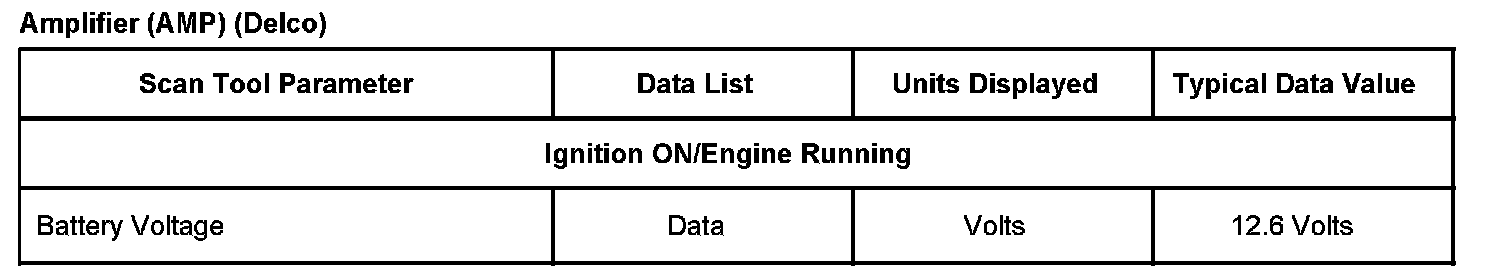

Amplifier (AMP) (Delco):

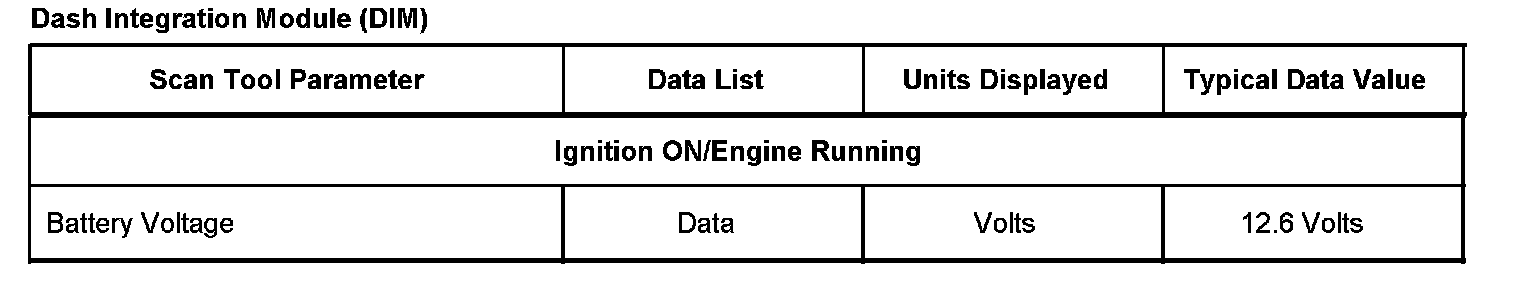

Dash Integration Module (DIM):

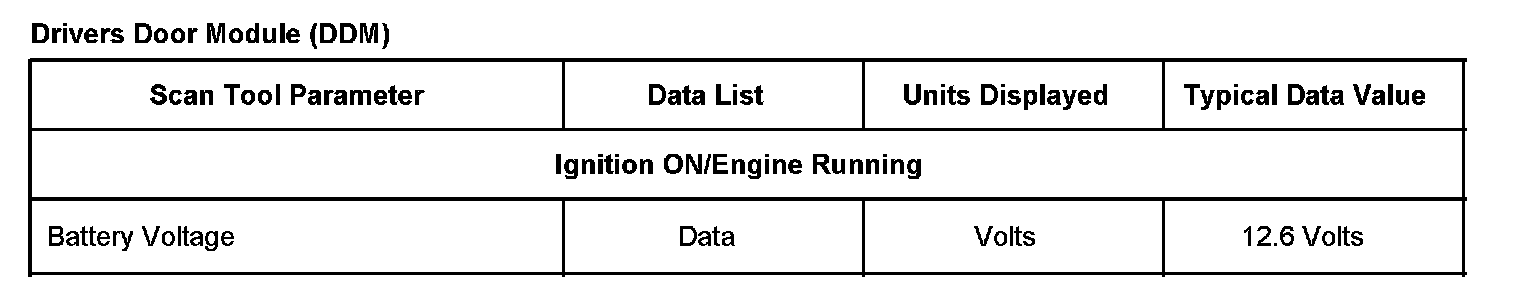

Divers Door Module (DDM):

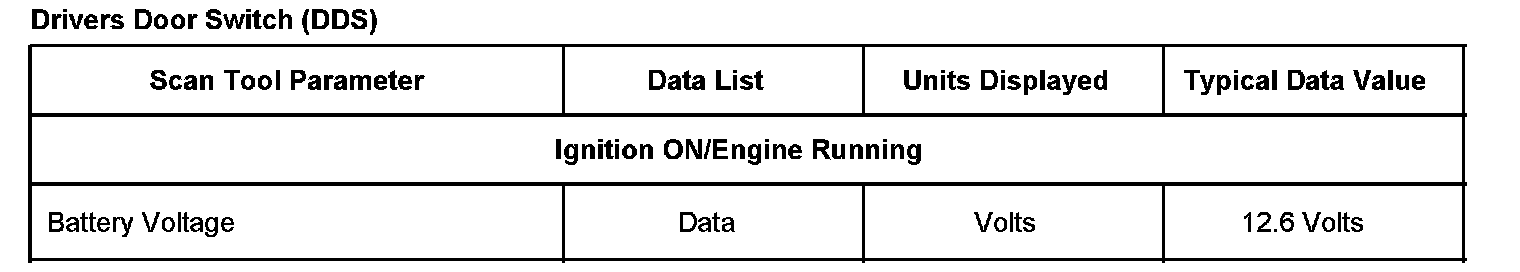

Divers Door Switch (DDS):

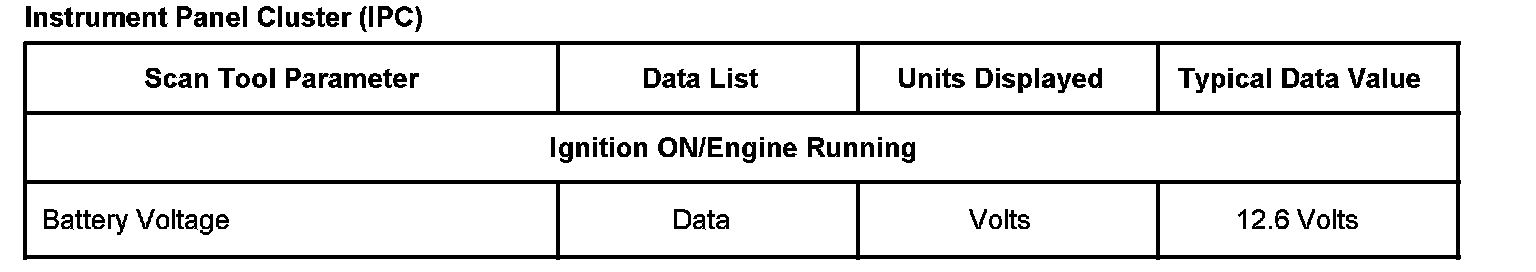

Instrument Panel Cluster (IPC):

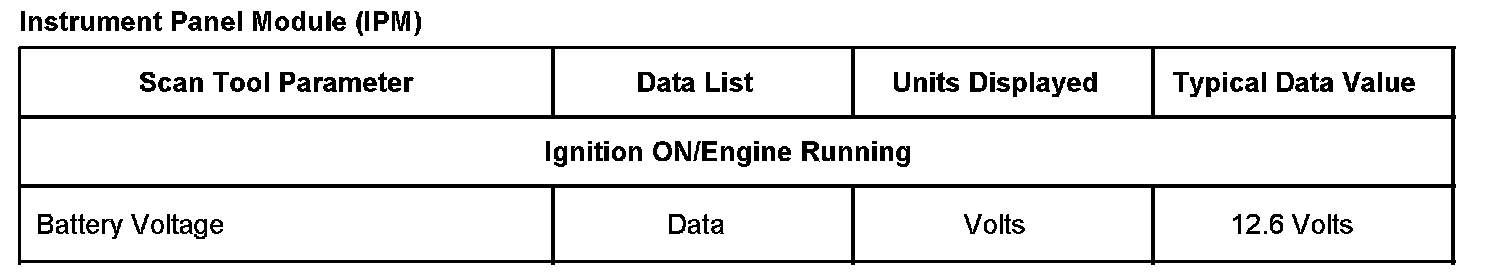

Instrument Panel Module (IPM):

Left Rear Door Module:

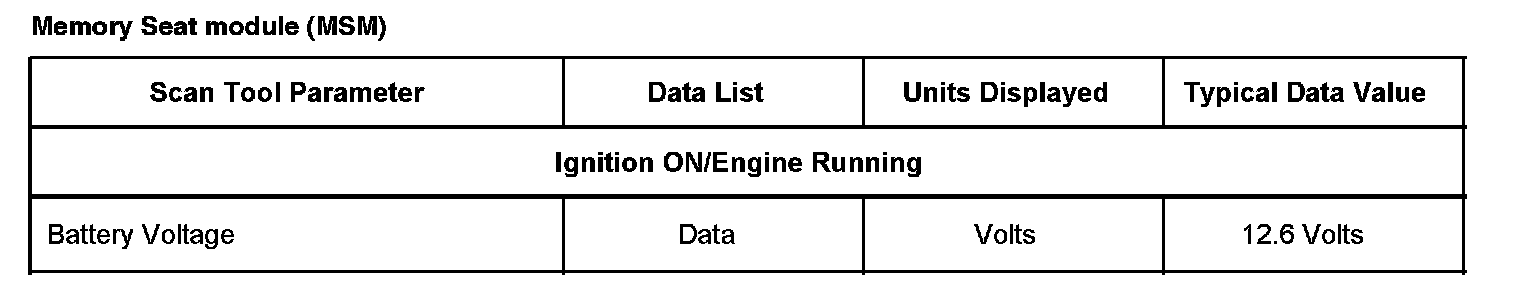

Memory Seat Module (MSM):

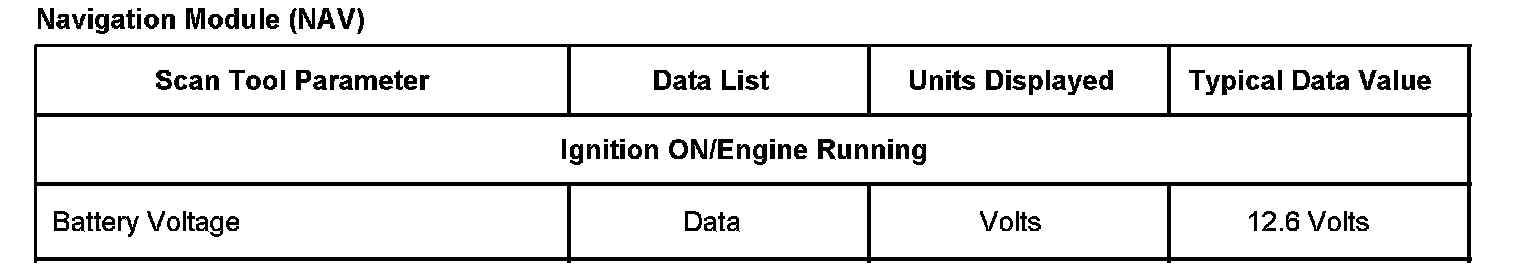

Navigation Module (NAV):

Passenger Door Module:

Rear Climate Control Panel:

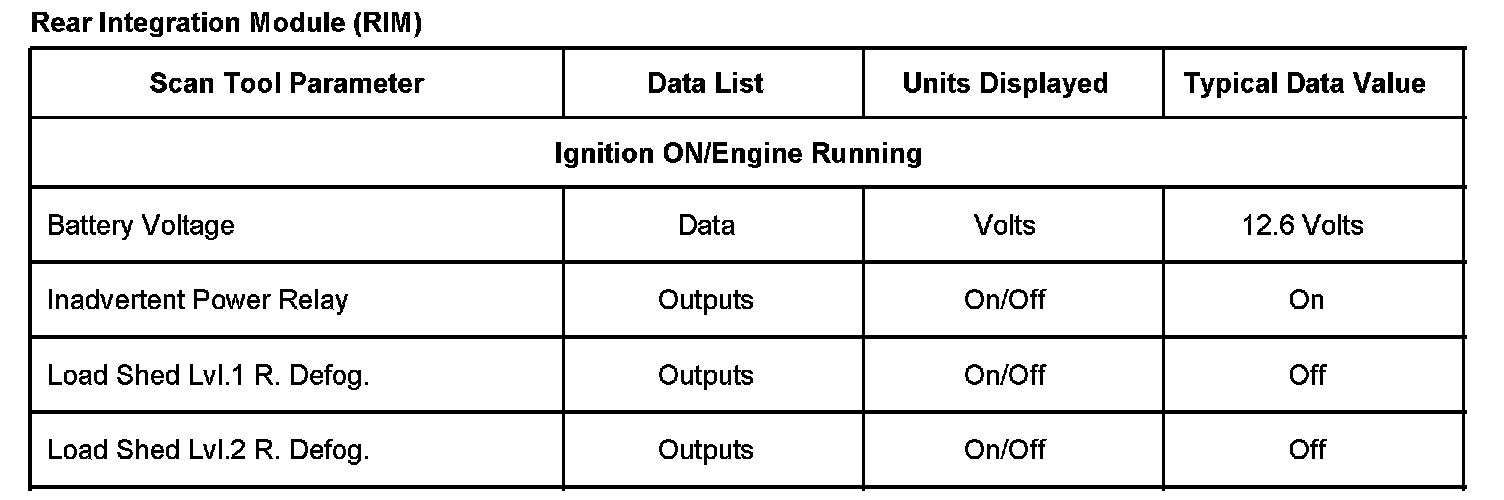

Rear Integration Module (RIM):

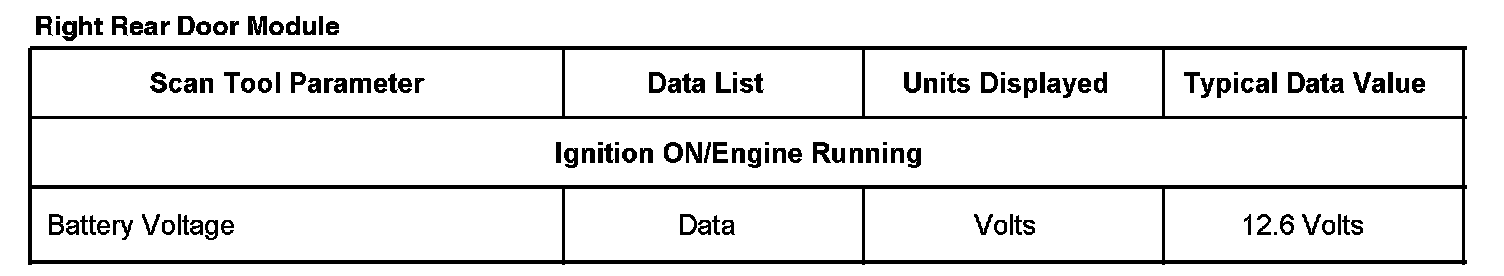

Right Rear Door Module:

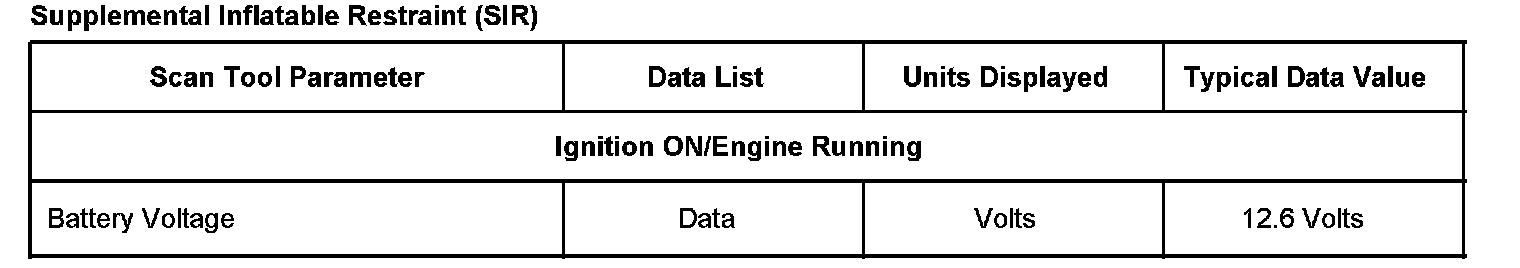

Supplemental Inflatable Restraint (SIR):

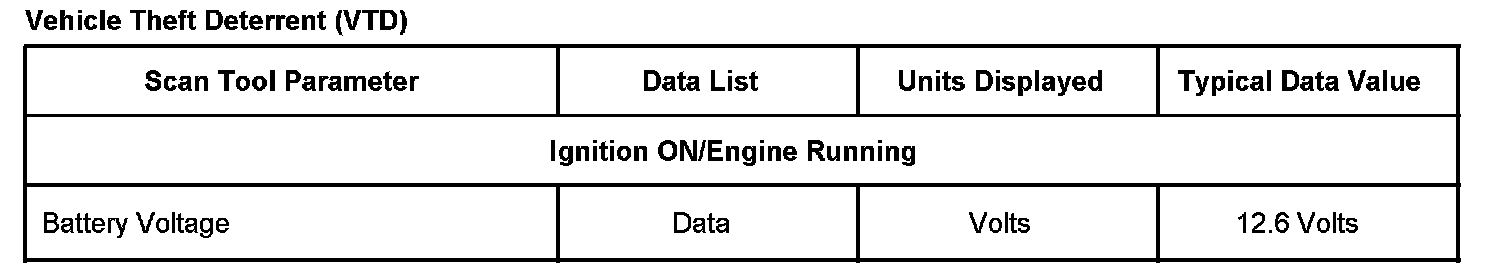

Vehicle Theft Deterrent (VTD):

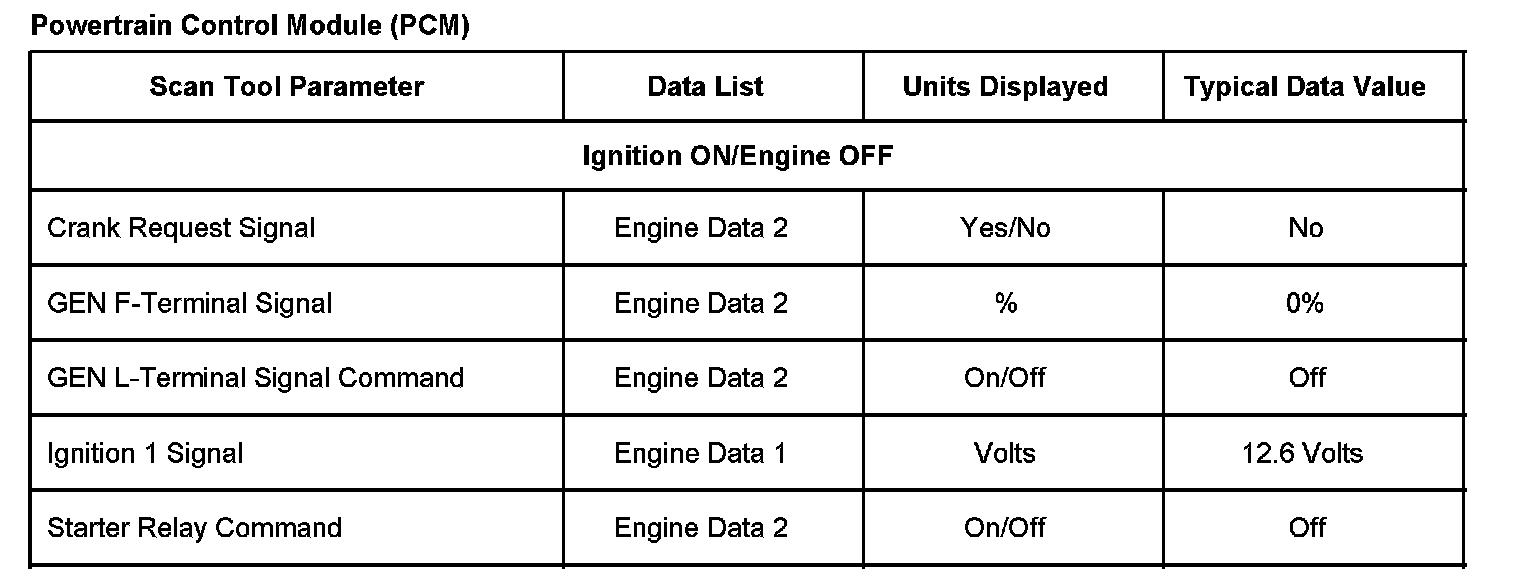

Powertrain Control Module (PCM):

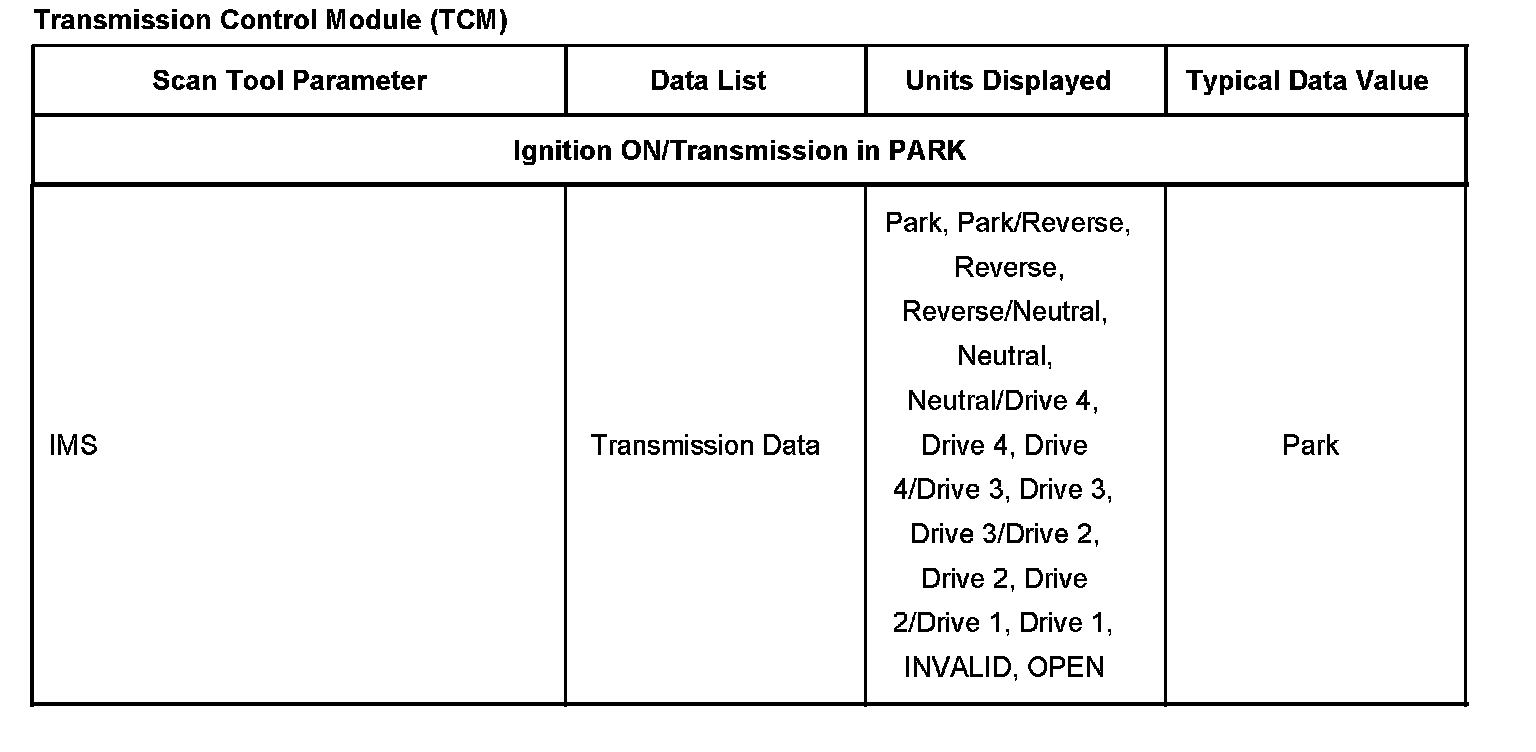

Transmission Control Module (TCM):
