Home >> Cadillac >> 2003 >> Seville V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Transmission Temperature Sensor/Switch, A/T

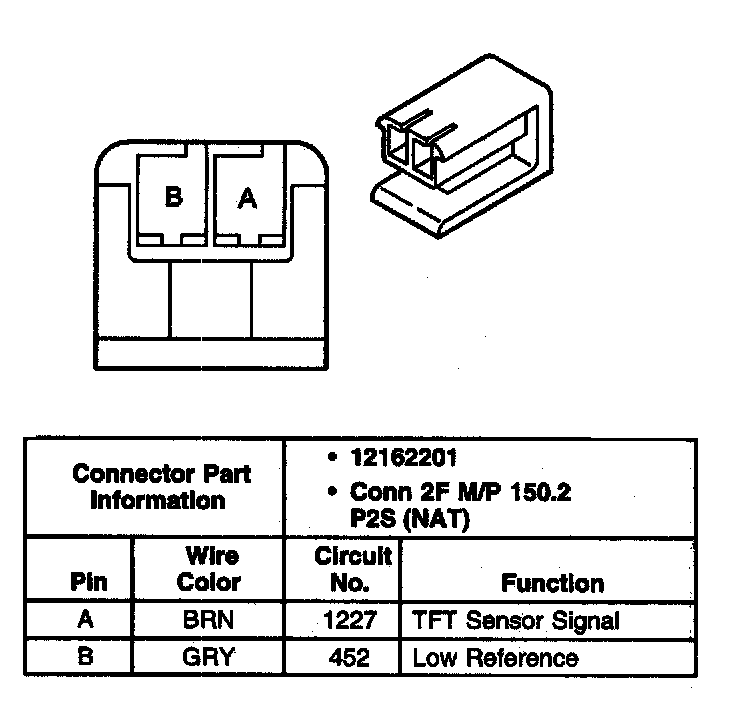

Transmission Temperature Sensor/Switch, A/T
