Fuse Block - Rear C1

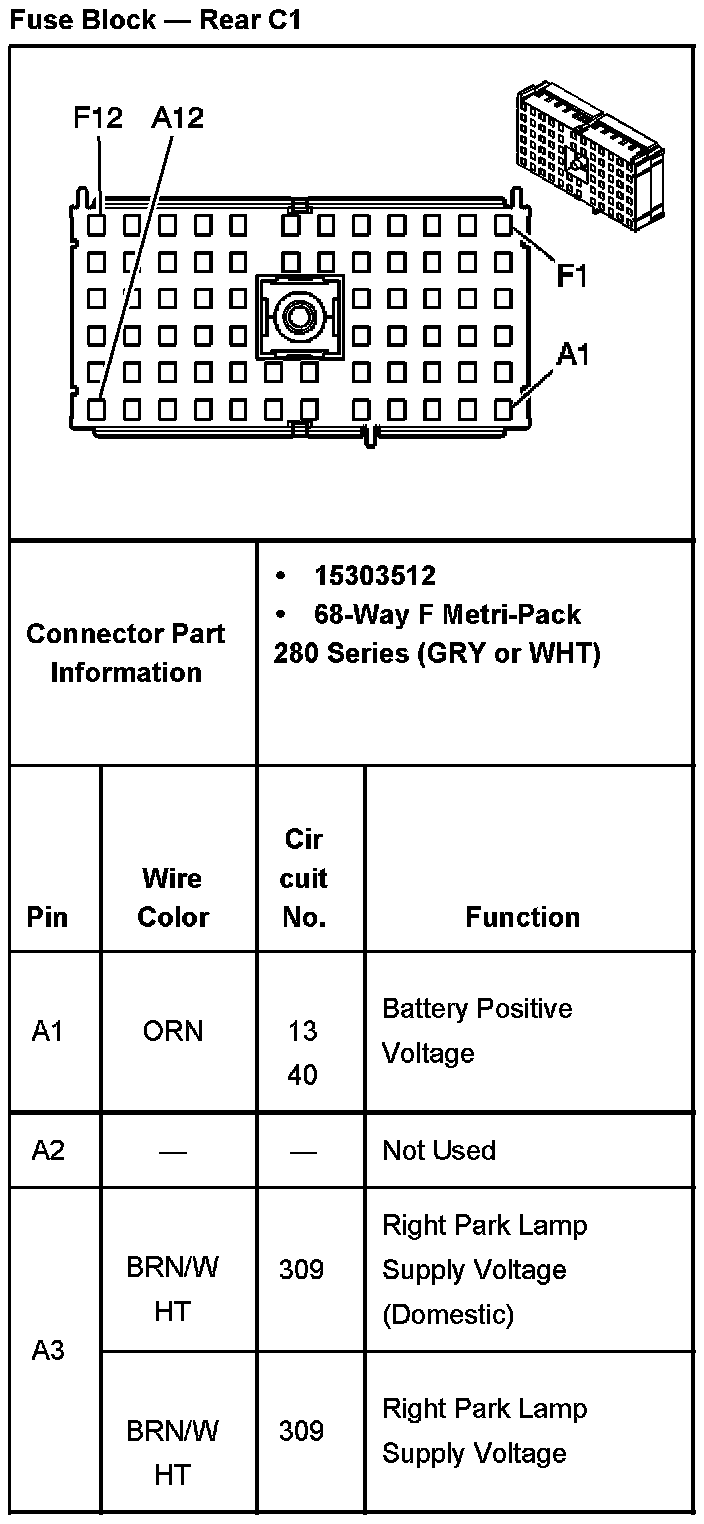

Fuse Block - Rear C1 Part 1:

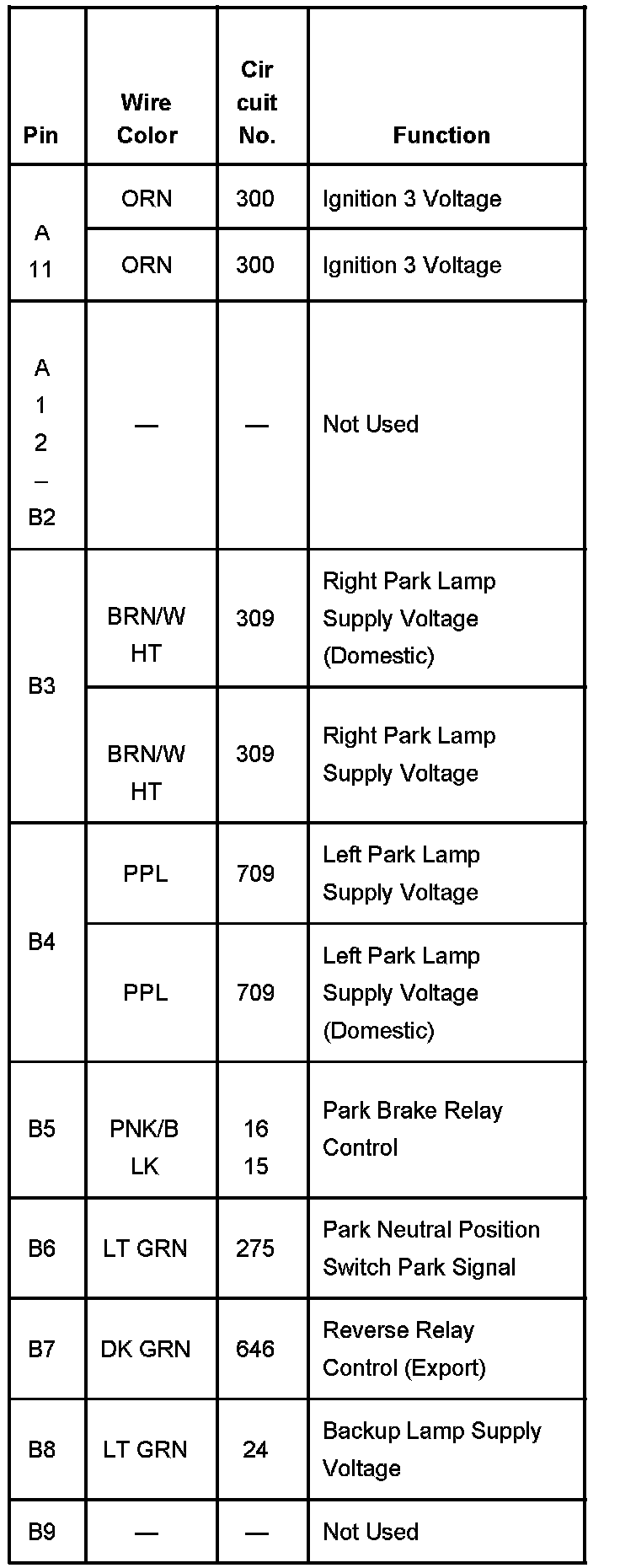

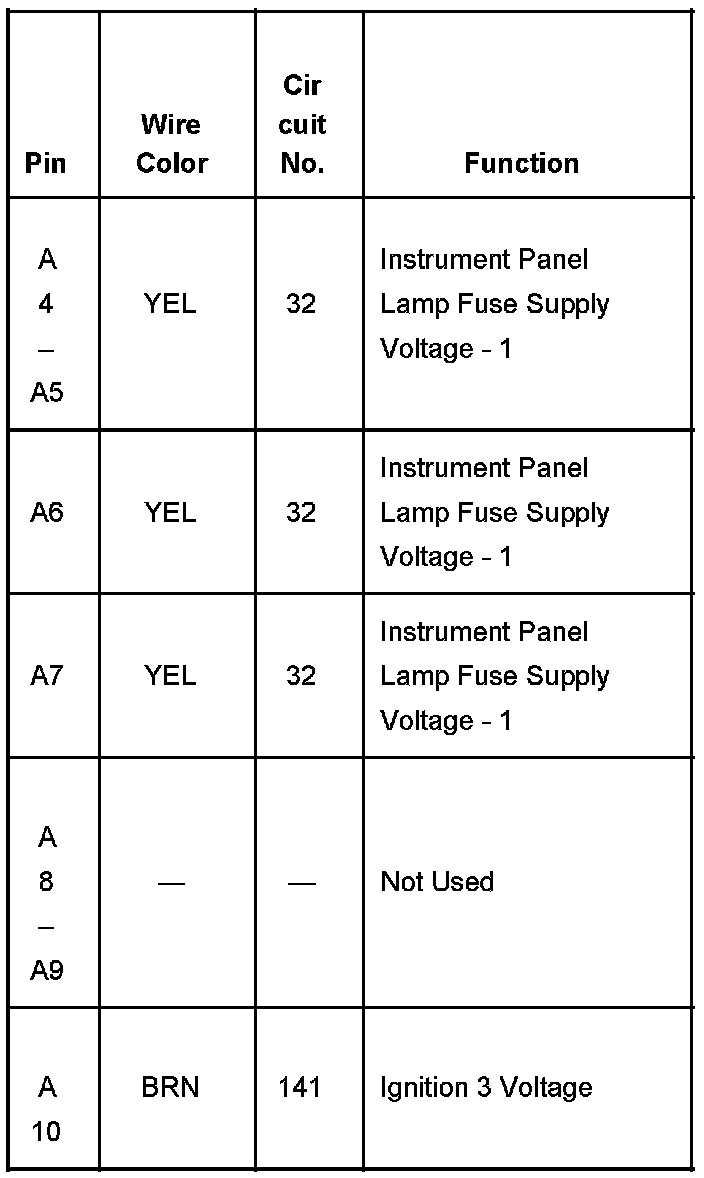

Fuse Block - Rear C1 Part 2:

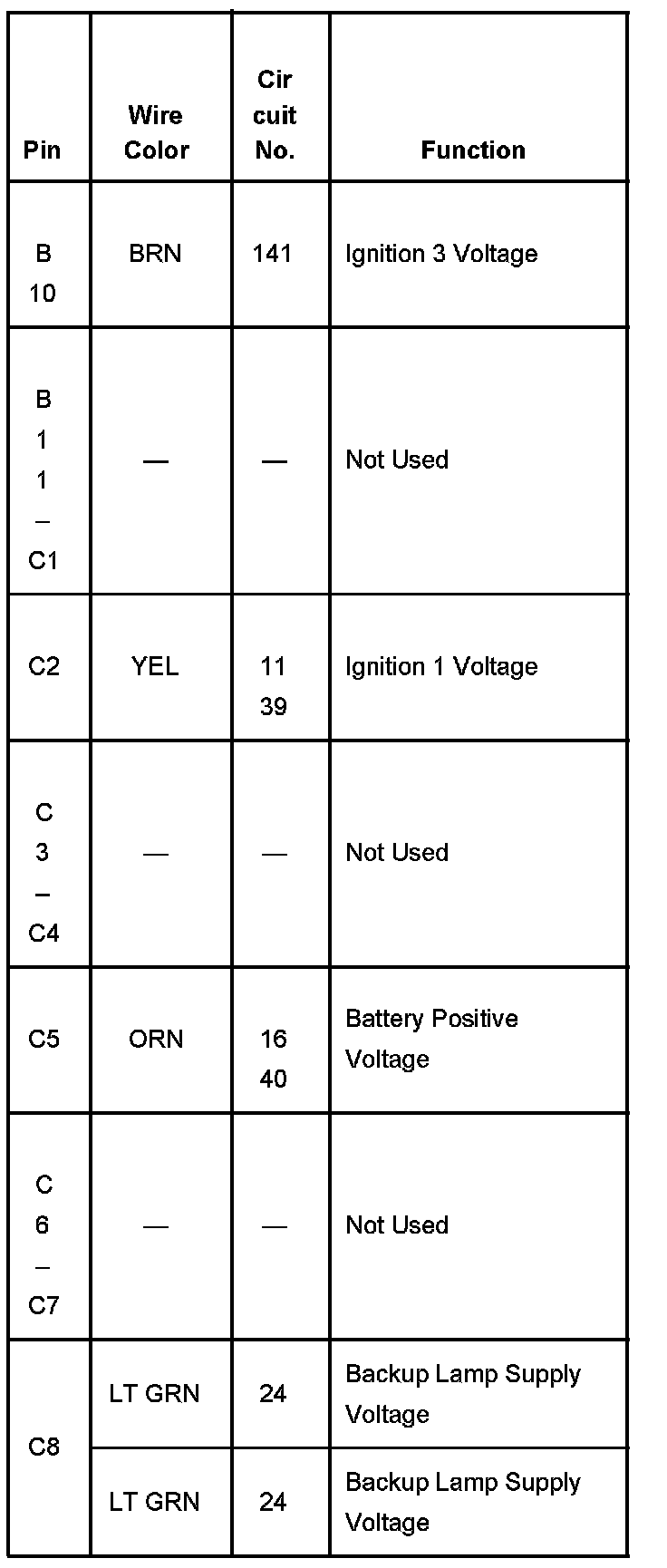

Fuse Block - Rear C1 Part 3:




Fuse Block - Rear C1 Part 4:

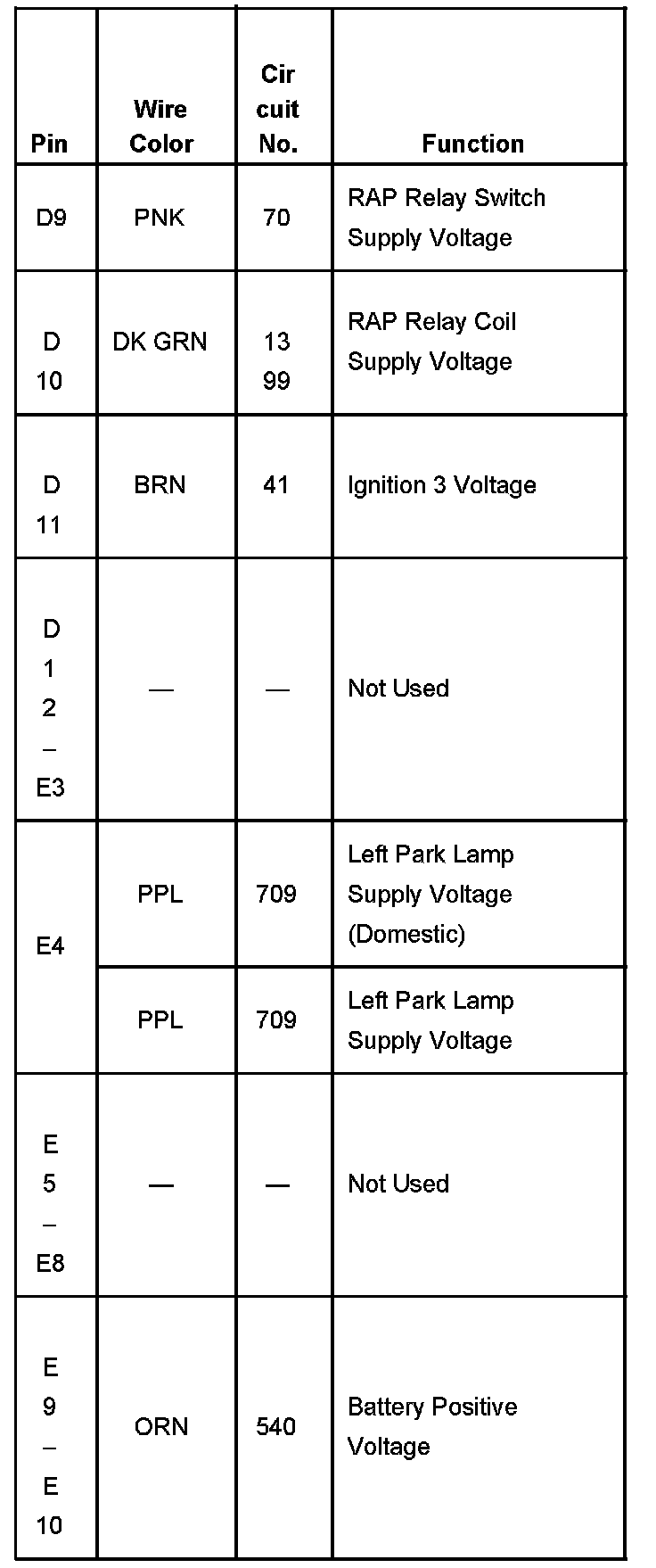

Fuse Block - Rear C1 Part 5:




Fuse Block - Rear C1 Part 6:




Fuse Block - Rear C1 Part 7:
