Automatic Transmission Controls Schematics

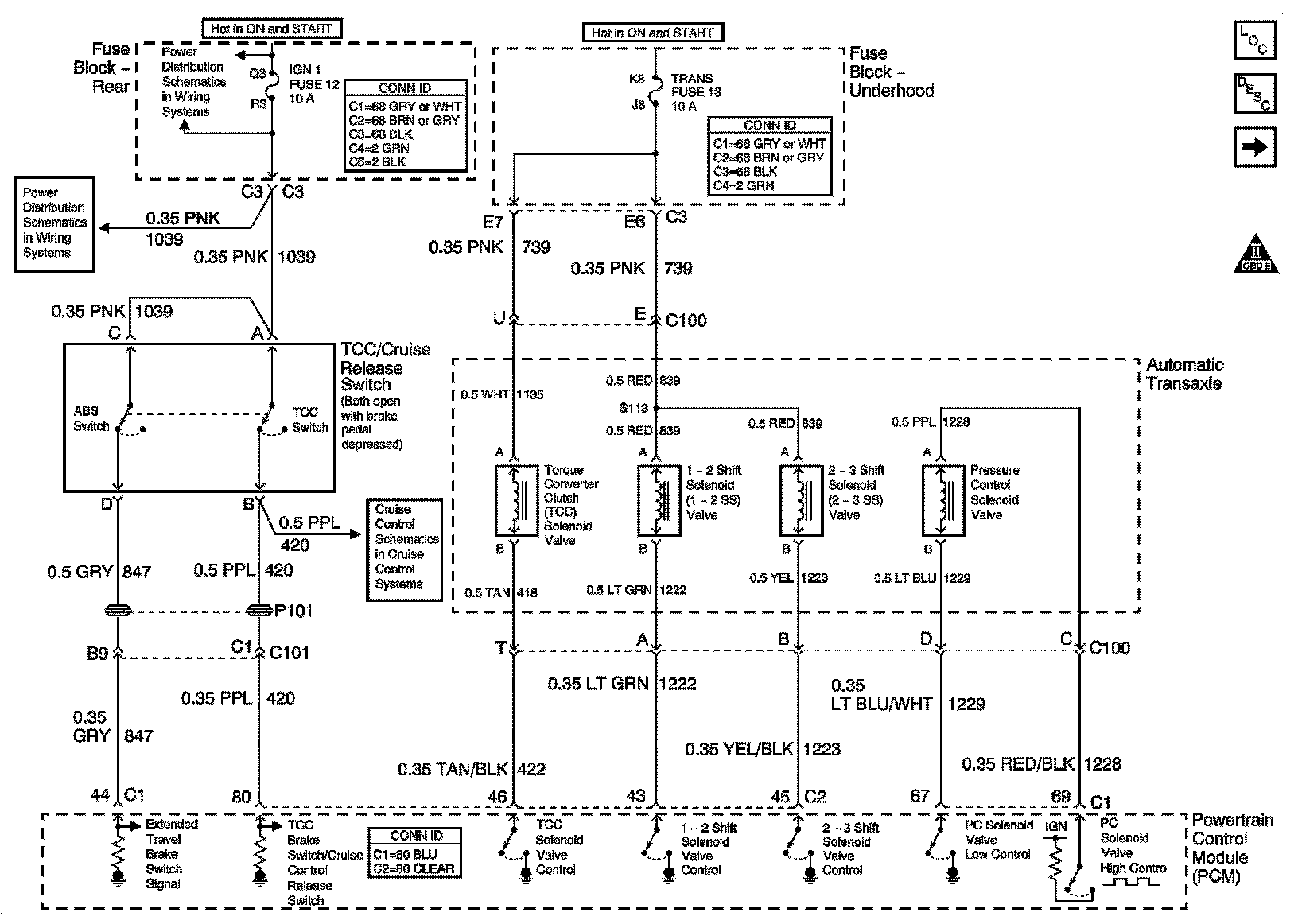

TCC/Cruise Release Switch:

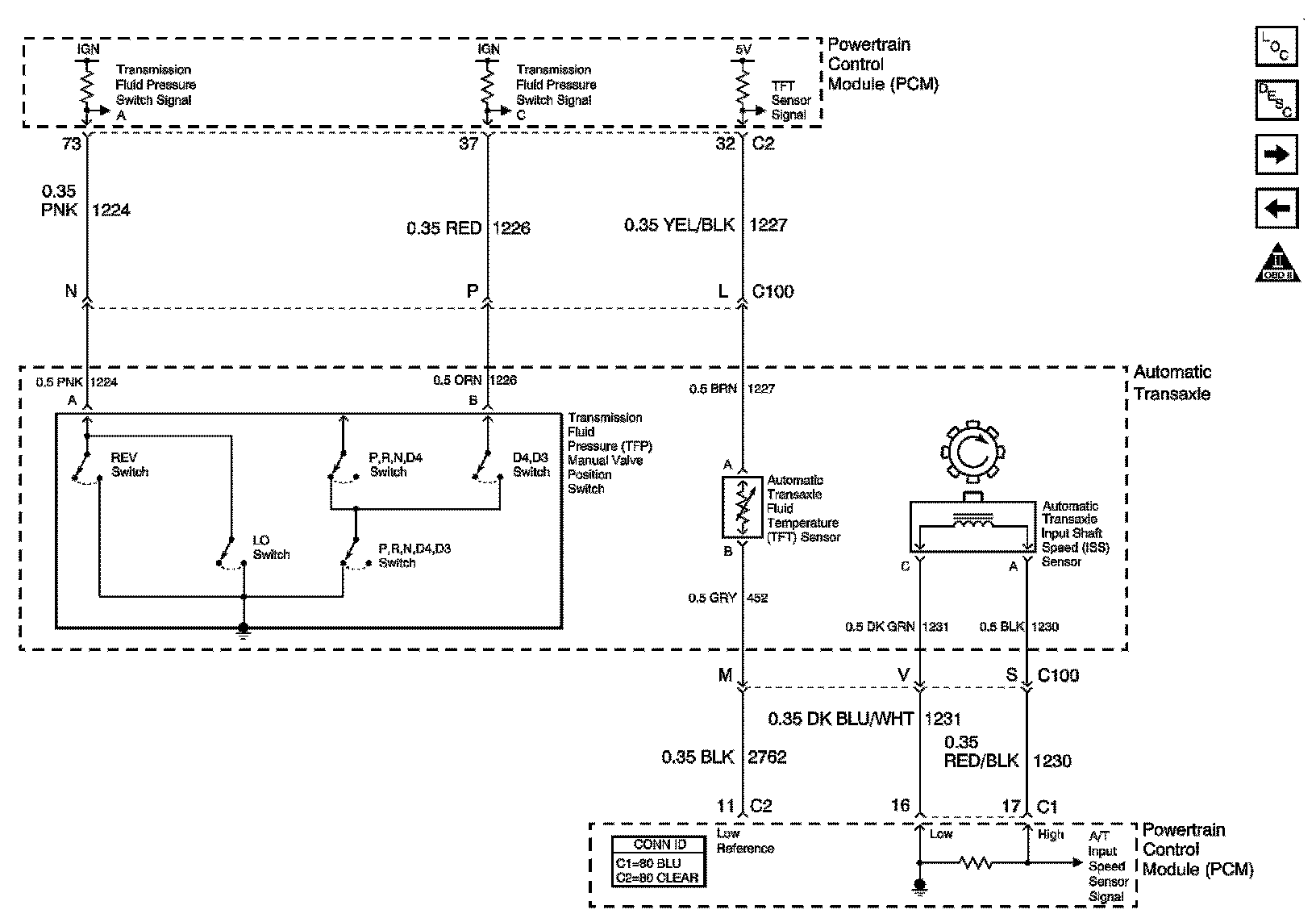

Transaxle Sensors:

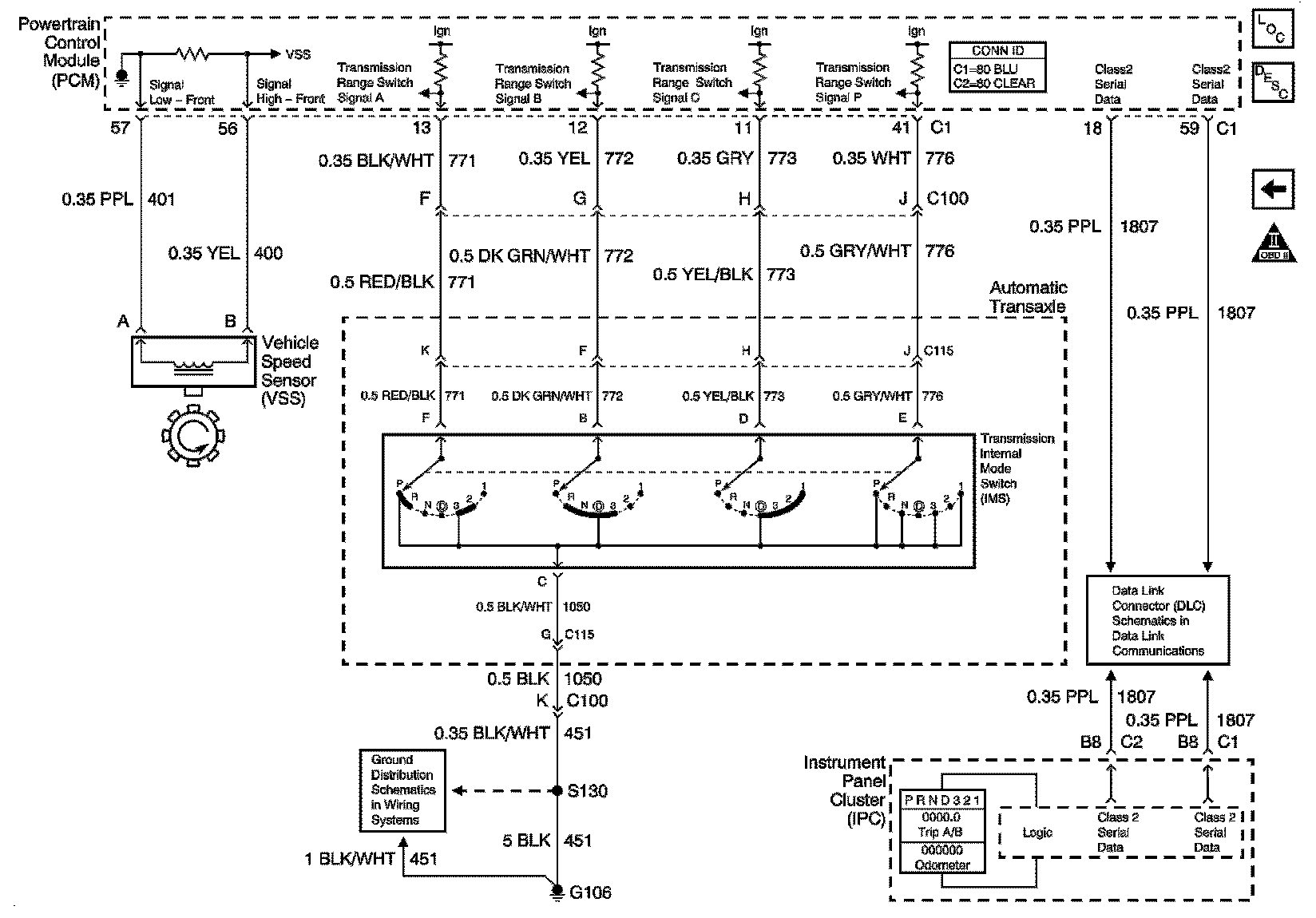

Transmission Internal Mode Switch (IMS), And VSS:
