I/M AIR System Set Procedure
INSPECTION/MAINTENANCE (I/M) AIR SYSTEM SET PROCEDUREDESCRIPTION
The purpose of this test is to satisfy the enable criteria necessary to execute I/M readiness diagnostics for the secondary air injection (AIR) system. The test may be used to set the I/M System Status to YES. Ensure that the vehicle meets the requirements listed in Conditions for Running before performing this test. Failure to meet the necessary requirements may produce inaccurate test results.
CONDITIONS FOR RUNNING
Passive Test
- The start-up engine coolant temperature (ECT) is between 5-80°C (41-176°F).
- The engine coolant temperature (ECT) is between 5-108°C (41-226°F).
- The intake air temperature (IAT) is between 5-72.5°C (41-162.5°F).
- The mass air flow (MAF) is less than 35 g/s.
- The air-fuel ratio is more than 12.1:1
- The manifold absolute pressure (MAP) is more than 50 kPa.
- The battery voltage is more than 10.2 volts.
Active Test
- Failed or inconclusive passive test.
- The engine load is less than 80 percent.
- The engine speed is more than 1,000 RPM.
- The engine is operating in Closed Loop fuel control.
DIAGNOSTIC AIDS
The AIR pumps generally operates once per ignition cycle, usually upon initial start up before the engine goes into Closed Loop fuel control. Some systems will perform a Passive Diagnostic Test at this time. The Active Diagnostic Test is performed after the engine goes into Closed Loop fuel control. On vehicles that perform a Passive Test, the Active Test will only run if the Passive Test fails or is indeterminate. The Active Test may not run if the Passive Test passes.
The I/M System Status does not indicate whether the test has passed or failed, only that a decision was made. When all of the diagnostics for a specific system have run and passed, the I/M System Status will update to YES. If a test for a specific system has failed, the I/M System Status will update to YES, indicating a determination was made, even if all of the required tests have not run. When a failure occurs, the Emission Related DTC portion of the I/M System Status display will indicate the MIL is requested. The I/M System Status also registers the number of DTCs.
The first failure of a type B DTC does not constitute a final determination of pass or fail, and will not update the I/M System Status to YES. A second trip is required, and all the conditions to run must be met in order for the test to run again. These conditions may include a partial to complete engine cool down.
The I/M System Status will update only when the DTC fails the second time, or all of the tests pass.
If there is an impending failure, the system may require more time to run the diagnostic than was allotted in the set procedure. If the test does not run after numerous attempts and no DTC is set, review the appropriate scan tool data list and the service information for an indication of why the test does not complete. Some tests may abort due to changes in the conditions while the test is running. For example, changes in engine load such as a cooling fan or an A/C compressor clutch turning ON may cause the test to abort.
If a diagnostic test is difficult to run, observe the I/M System Status display while maintaining the necessary enable conditions until the system status updates to YES.
TEST DESCRIPTION

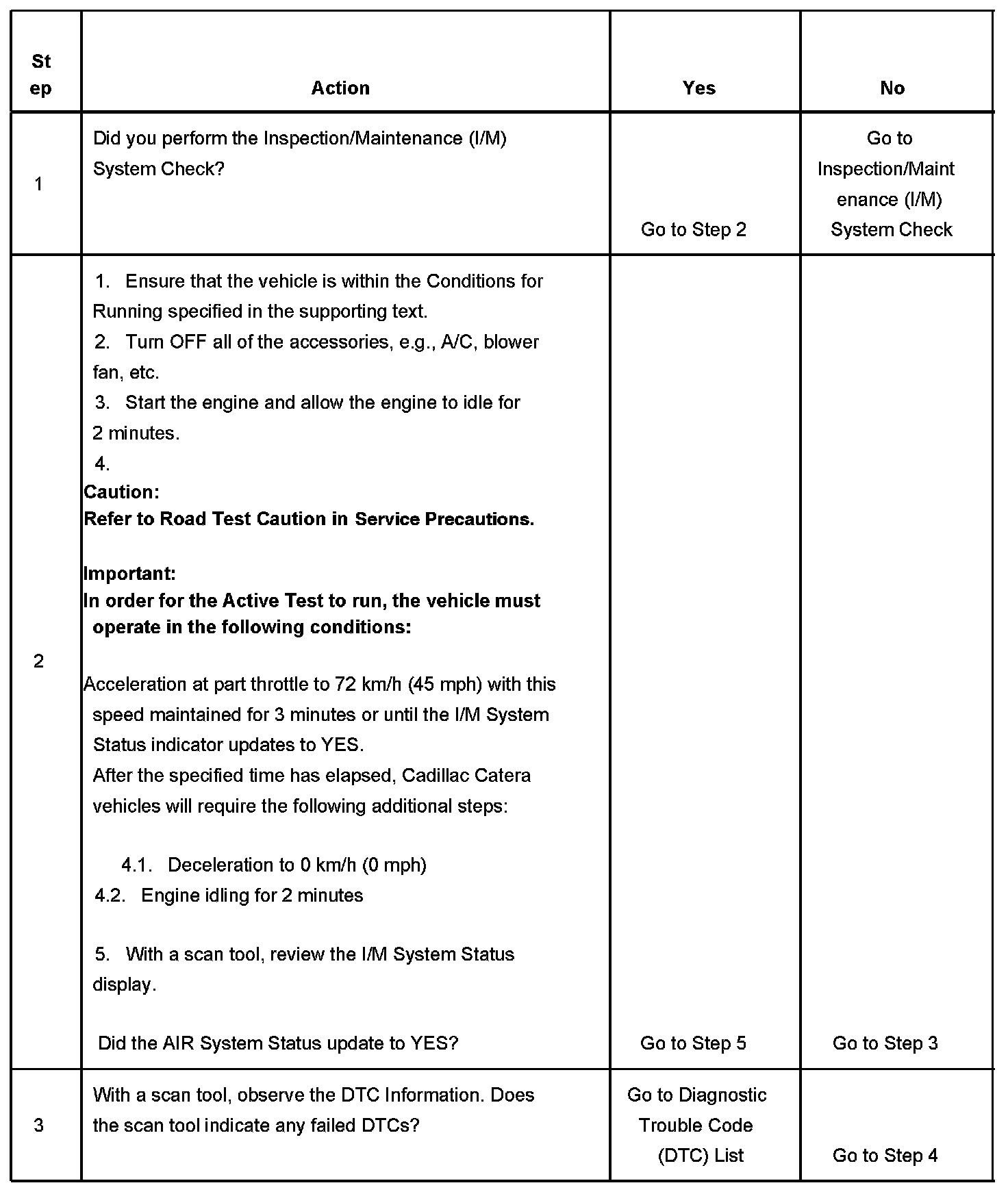

Steps 1-3:
Steps 4-5:
The numbers below refer to the step numbers on the diagnostic table.
1. Make sure that you perform the I/M System Check before performing this test. Failure to do so may result in difficulty updating the status to YES. Inspection/Maintenance (I/M) System Check
2. The AIR Tests will begin shortly after the engine goes into Closed Loop fuel control. Some vehicles perform a Passive Test during Open Loop operation shortly after a cold start up.
3. This step identifies a first failure of a type B DTC. A DTC only appears on the I/M System Status display when the DTC becomes a MIL illuminating DTC. This occurs on the second failure of a type B DTC. A first failure of a type B DTC will not allow the I/M System Status to update to YES. Refer to Diagnostic Aids.
4. This step helps identify any unique or unusual criteria required to run the diagnostic test in the event the universal set procedure does not. This information is located in the service information under Conditions for Running the DTC.
5. The I/M System Status only reports on whether or not a diagnostic has run, not the outcome of the test. If any Emission Related DTC sets after the tests are complete, the DTC will require diagnosis.
