Fuel Injector

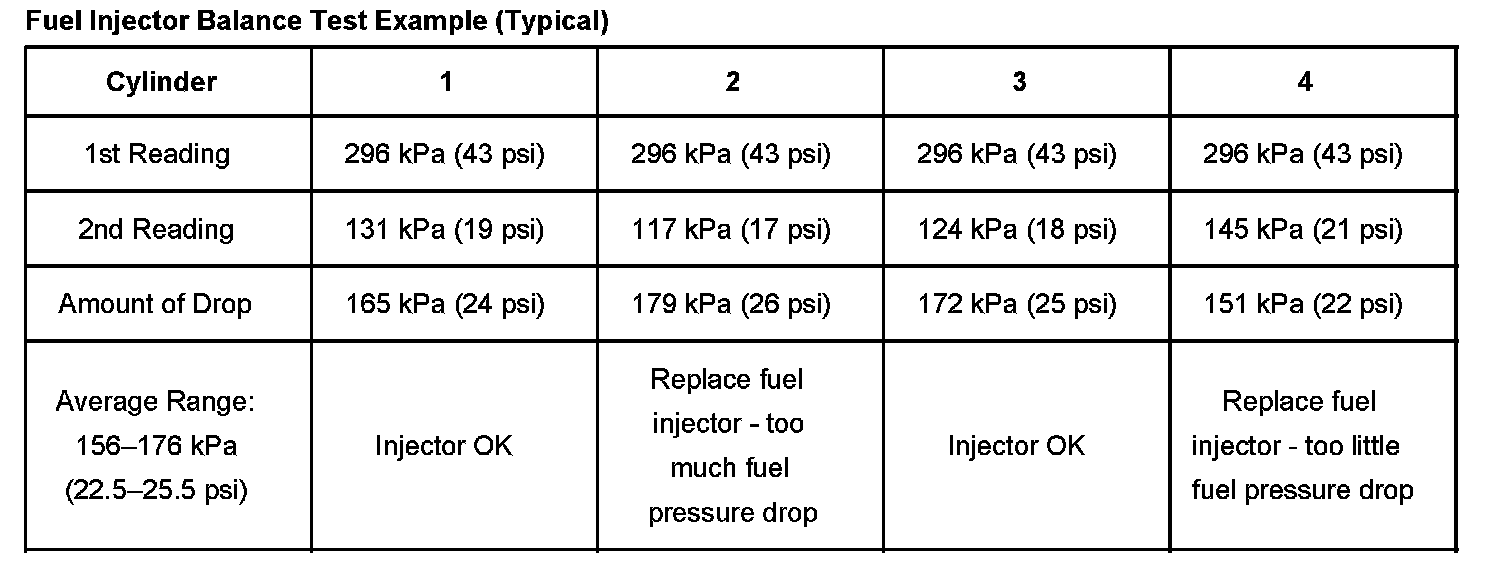

Fuel Injector Balance Test Example (Typical):

The pressure drop value for each fuel injector is within 10 kPa (1.5 psi) of the average pressure drop value, the fuel injectors are flowing properly. Calculate the pressure drop value for each fuel injector by subtracting the second pressure reading from the first pressure reading.


Fuel Injector Balance Test with Tech 2
Fuel Injector Balance Test With special Tool
