Closeout/Insulator Panel Replacement - Left
CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFTREMOVAL PROCEDURE

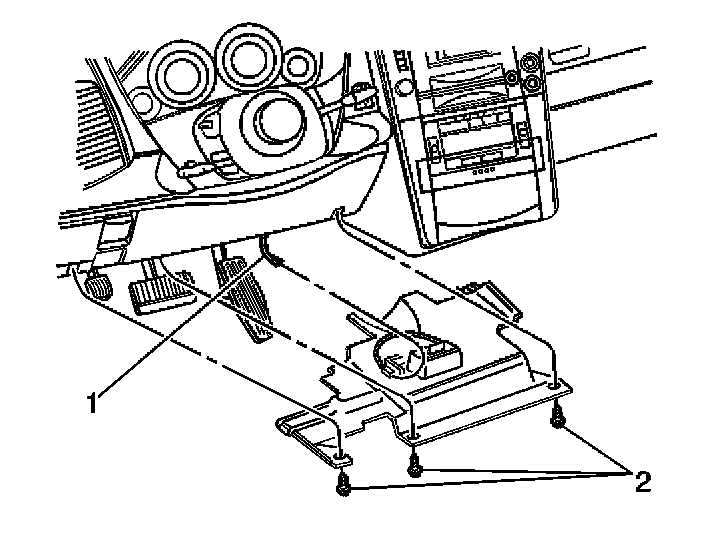

1. Remove the screws (2) securing the closeout panel to the I/P.
2. Disconnect the courtesy lamp electrical connector (1).
3. Remove the closeout panel from the I/P.
INSTALLATION PROCEDURE
1. Connect the courtesy lamp electrical connector (1).
2. Align the closeout panel on the I/P.
NOTE: Refer to Fastener Notice in Service Precautions.
3. Install the closeout retaining fastener (2).
Tighten
Tighten the fasteners to 2 N.m (18 lb in).
