15. Engine Coolant Thermostat Housing Removal

Thermostat Housing Removal

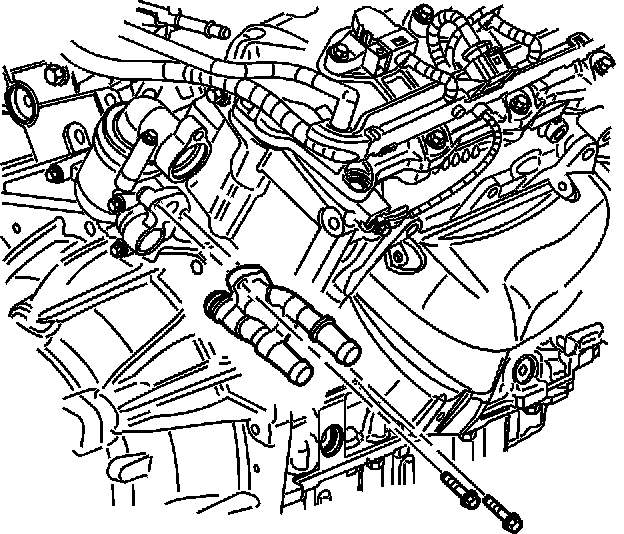

1. Remove the heater inlet/outlet pipe assembly bolts.
2. Remove the heater inlet/outlet pipe assembly.

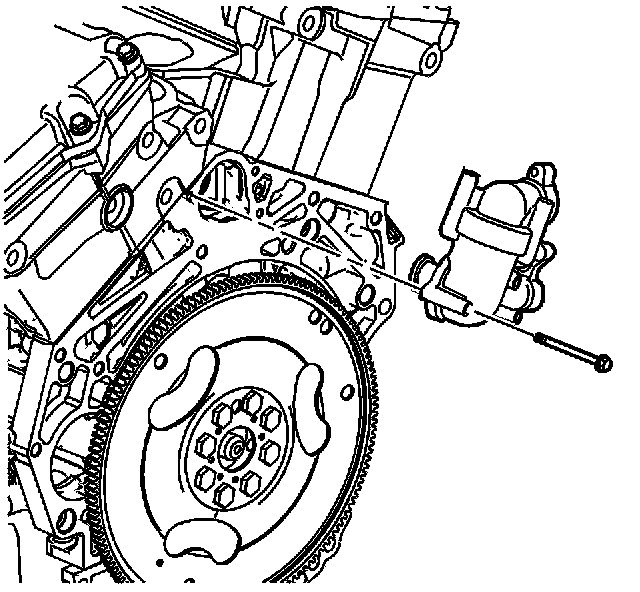

3. Remove the thermostat housing bolts.
4. Remove the thermostat housing.
5. Remove the thermostat housing gasket.
