Shift Interlock: Locations

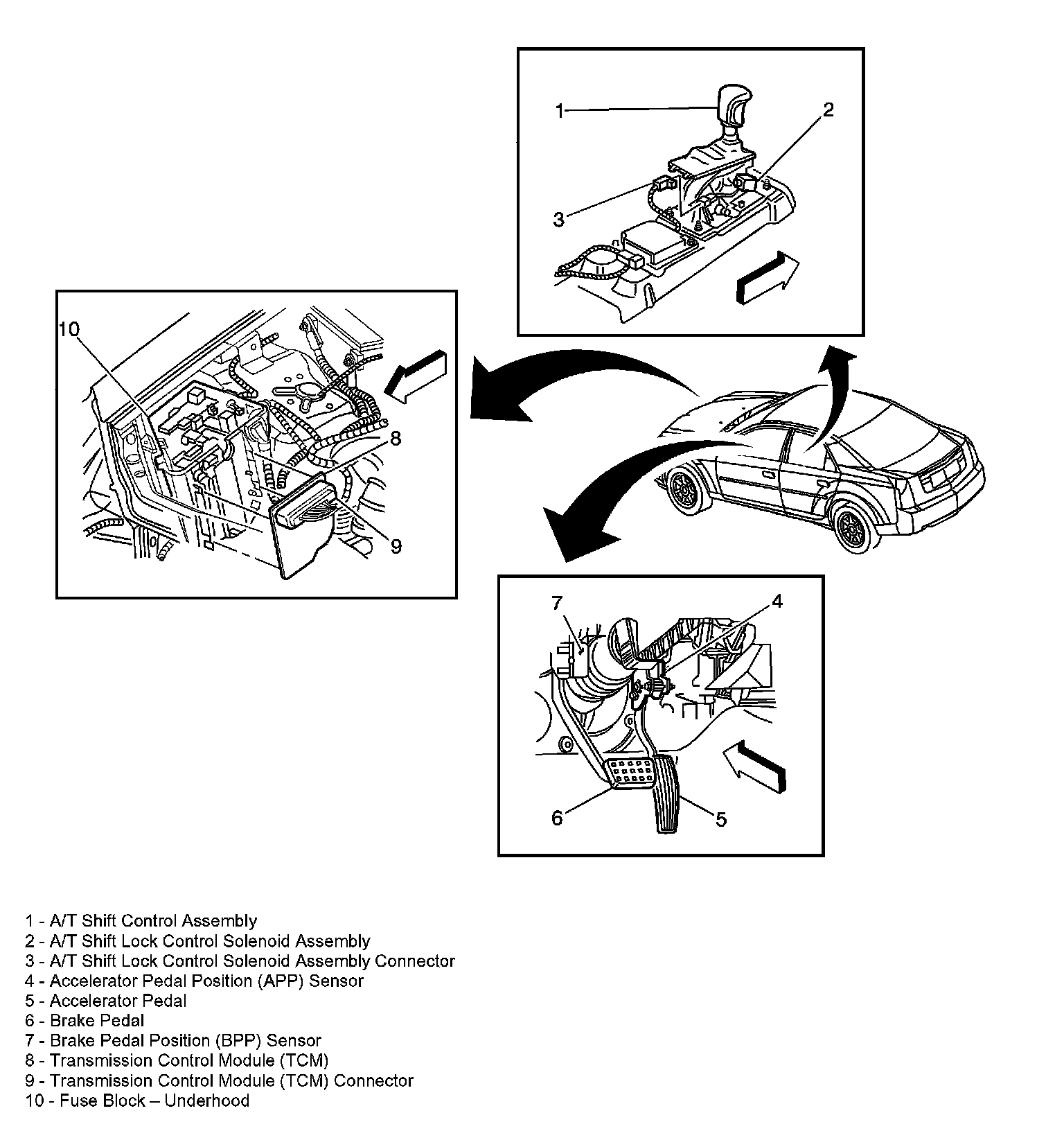

Automatic Transmission Shift Lock Control Component Views





Shift Lock Control Components (M82)
