Power and Ground Distribution
>>
Locations
>>
Battery Cable View
>>
Battery Positive Cable
Battery Positive Cable

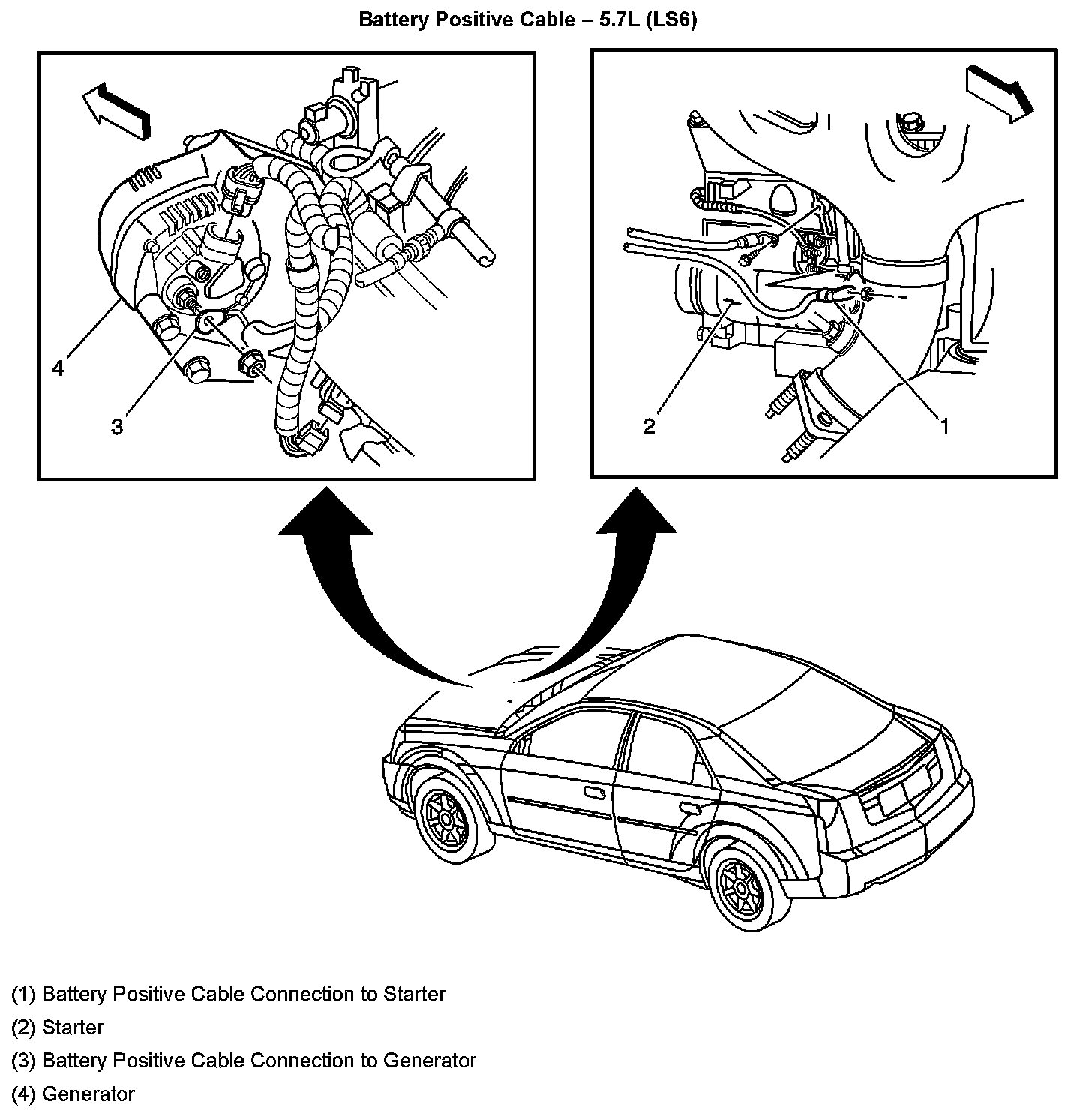

Battery Positive Cable:
