Oil Pan Cover

Oil Pan Cover Replacement

Removal Procedure
1. Drain the engine oil.

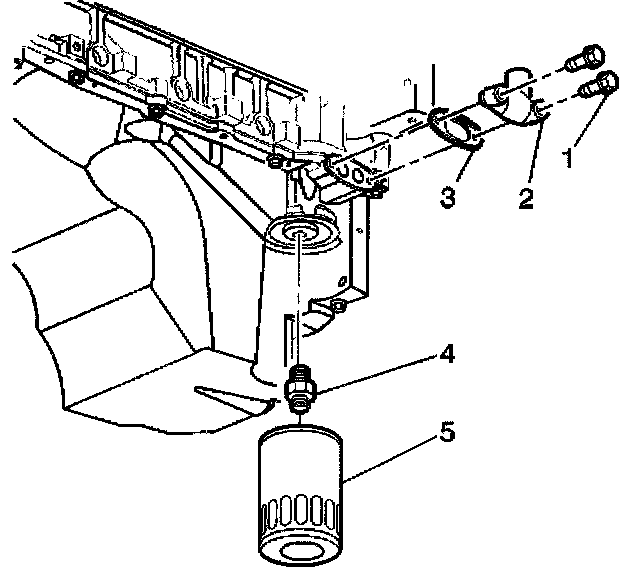

2. Remove the oil pan cover bolts (1), cover (2), and gasket (3).
3. Discard the gasket.

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

1. Install a new oil pan cover gasket (3), the cover (2) and bolts (1).
Tighten the bolts to 12 Nm (106 lb in).
2. Refill the engine oil. Refer to Capacities -Approximate Fluid and/or Fluid and Lubricant Recommendations.
