Fog Lamp Replacement - Front (Except Z71)

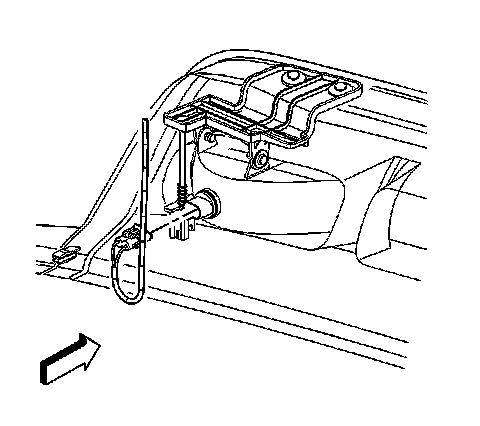

FOG LAMP REPLACEMENT - FRONTREMOVAL PROCEDURE
1. Disconnect the electrical connector from the fog lamp.
2. Remove the push pin retainers that attach the fog lamp to the bracket.
3. Remove the fog lamp adjuster bolt and spring from the adjuster nut.
4. Remove the fog lamp from the fog lamp bracket.
5. Remove the fog lamp bracket bolts and bracket, as needed.
INSTALLATION PROCEDURE
1. Install the fog lamp bracket bolts and bracket, as needed.
NOTE:Refer to Fastener Notice in Service Precautions.
Tighten the bolt to 25 N.m (18 lb ft).
2. Install the fog lamp to the fog lamp bracket.
3. Install the fog lamp adjuster bolt and spring to the adjuster nut.
4. Install the push pin retainers that attach the fog lamp to the bracket.
5. Connect the electrical connector to the fog lamp.
6. Inspect the fog lamp aiming.
