Ignition Lock Cylinder Case

Ignition Lock Cylinder Case Replacement

Removal Procedure





Caution: Refer to SM Caution in Cautions and Notices.

1. Disable the SIR system.
2. Remove the ignition switch.
3. Remove the turn signal cancel cam.
4. Remove the park lock cable from the lock cylinder housing.

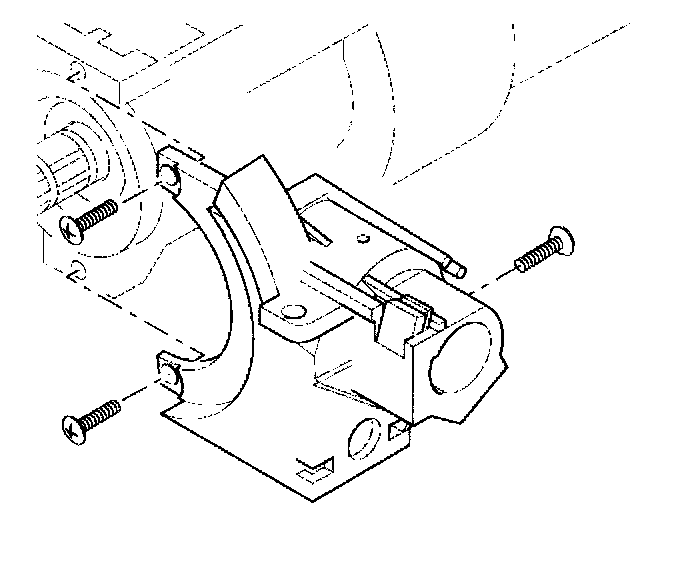

5. Remove 3 TORX screws.
6. Remove the lock cylinder housing from the steering column.

Installation Procedure





Notice: Refer to Fastener Notice in Cautions and Notices.

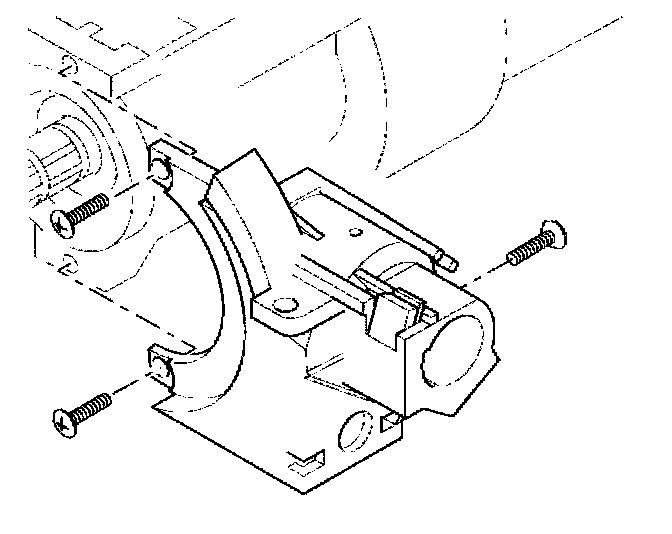

1. Install 3 TORX screws into the lock cylinder housing.
^ Tighten the TORX screws to 7 Nm (62 inch lbs.).
2. Install the turn signal cancel cam.
3. Install the park lock cable into the lock cylinder housing.
4. Install the ignition switch.
5. Enable the SIR system.
