Engine Verification Label

ENGINE VERIFICATION LABEL




The engine verification label is placed in two locations on the engine.

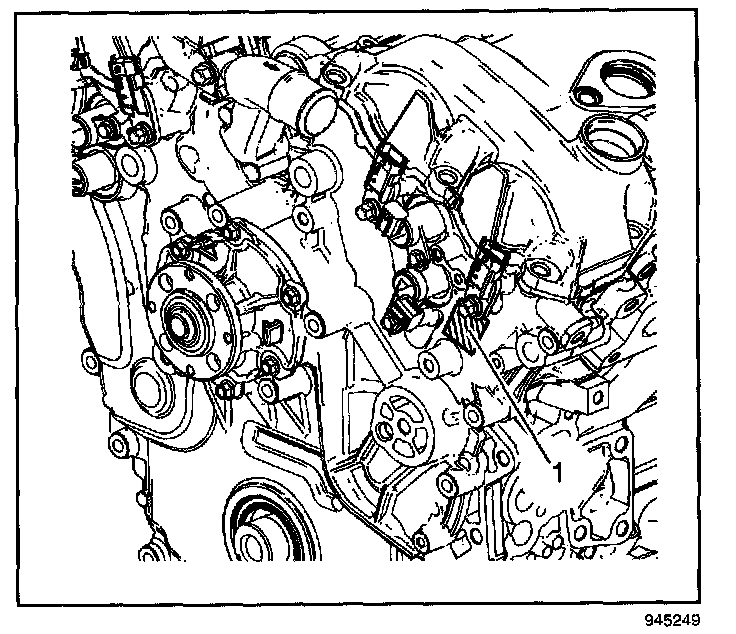

One label is located on the left side of the engine front cover below the exhaust camshaft position sensor.

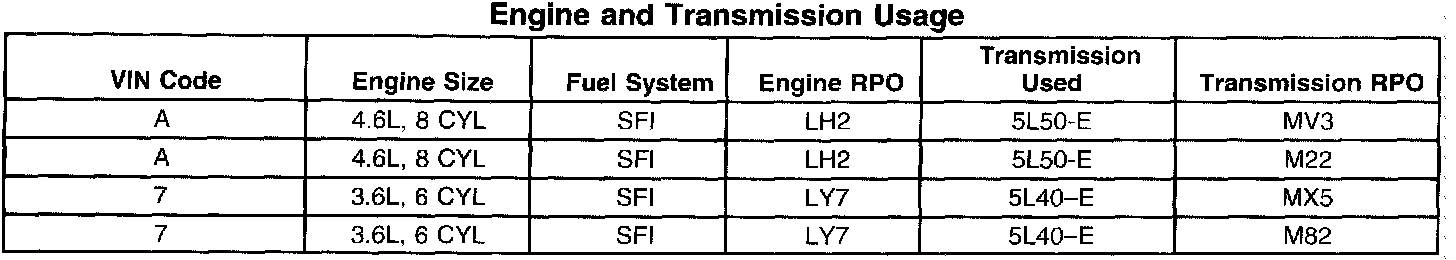

Engine And Transmission Usage:

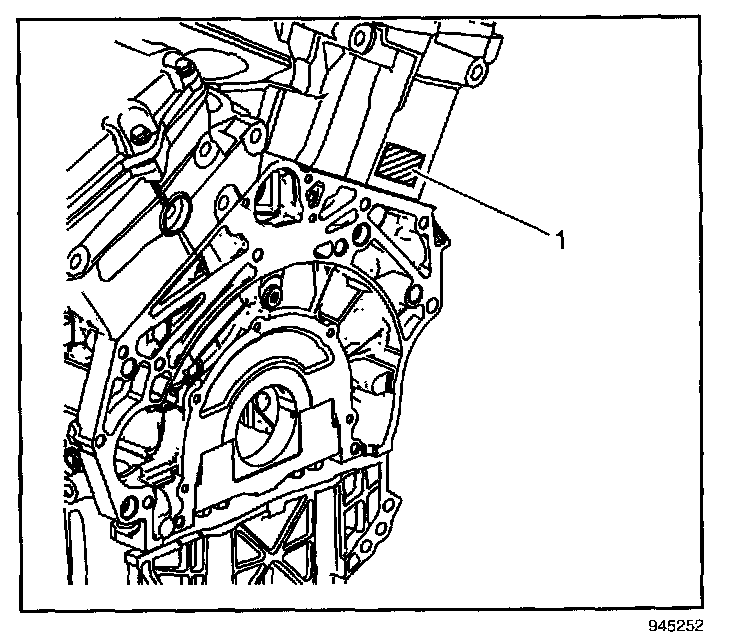

Another label is located on the rear of the right cylinder head.
