Cowl: Service and Repair

Cowl Drain Valve Replacement

Removal Procedure

1. Remove the battery tray.

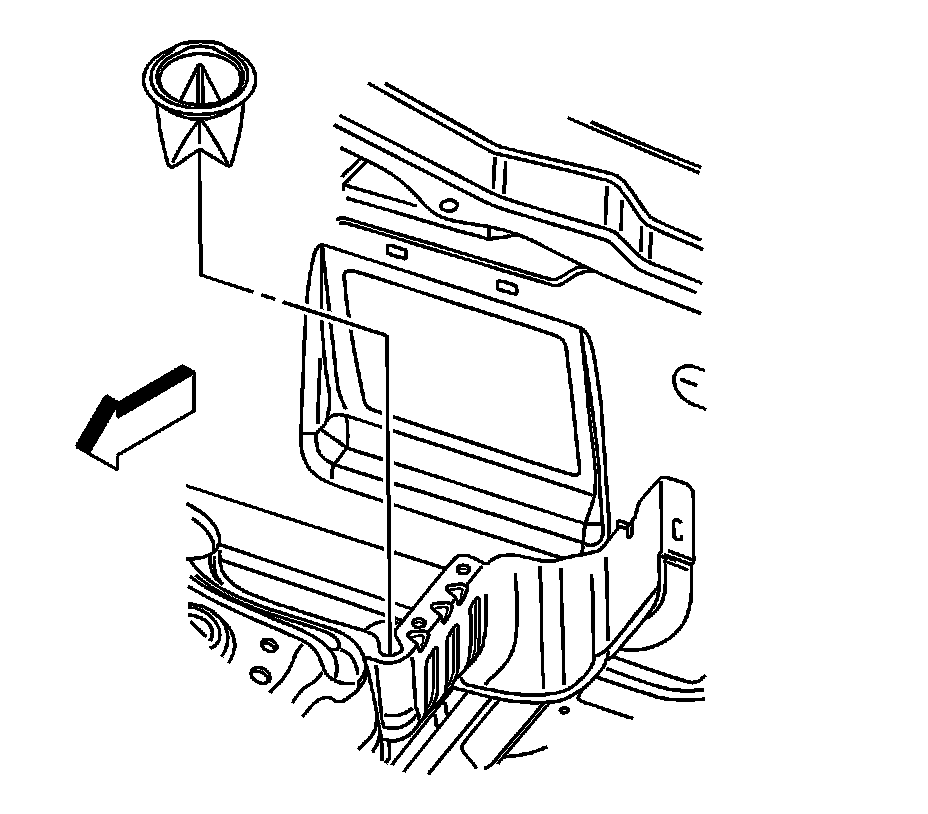

2. Remove the cowl drain valve from the vehicle.

Installation Procedure

1. Install the cowl drain valve to the vehicle.
2. Install the battery tray.
