Splash Guard: Service and Repair

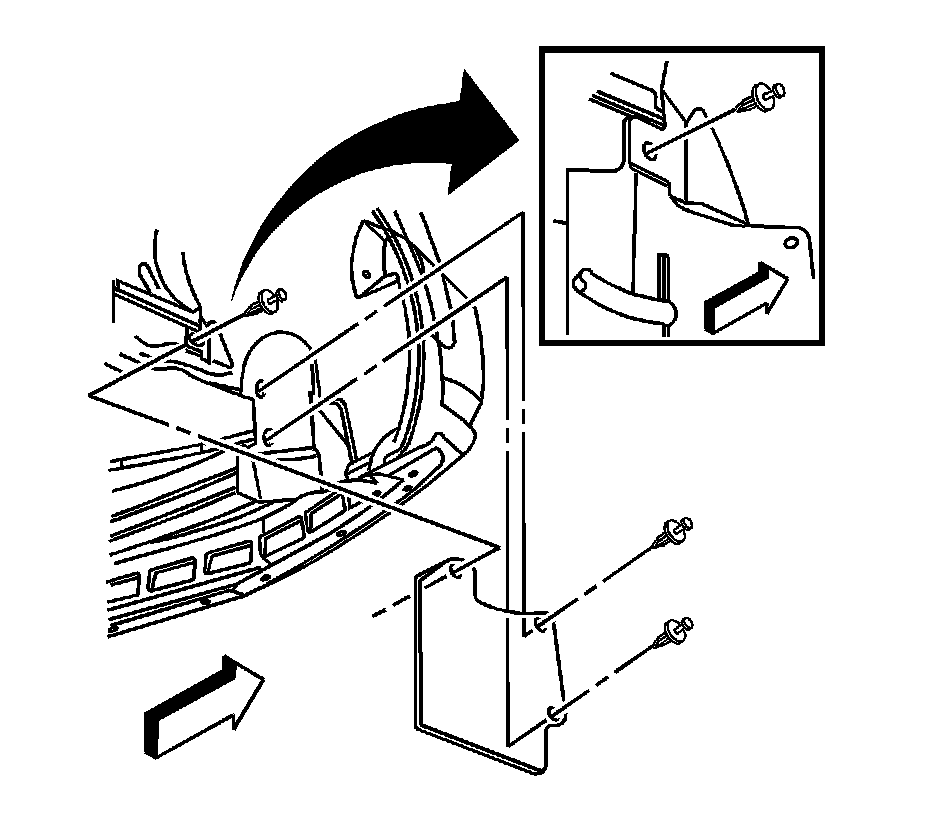

Splash Shield Replacement - Wheelhouse

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting ().
2. Remove the push-in retainers securing the splash shield to the vehicle.
3. Remove the splash shield from the vehicle.

Installation Procedure

1. Position the splash shield to the vehicle.
2. Install the push-in retainers to secure the splash shield to the vehicle.
