Wheel Speed Sensor

ABS Connector End Views

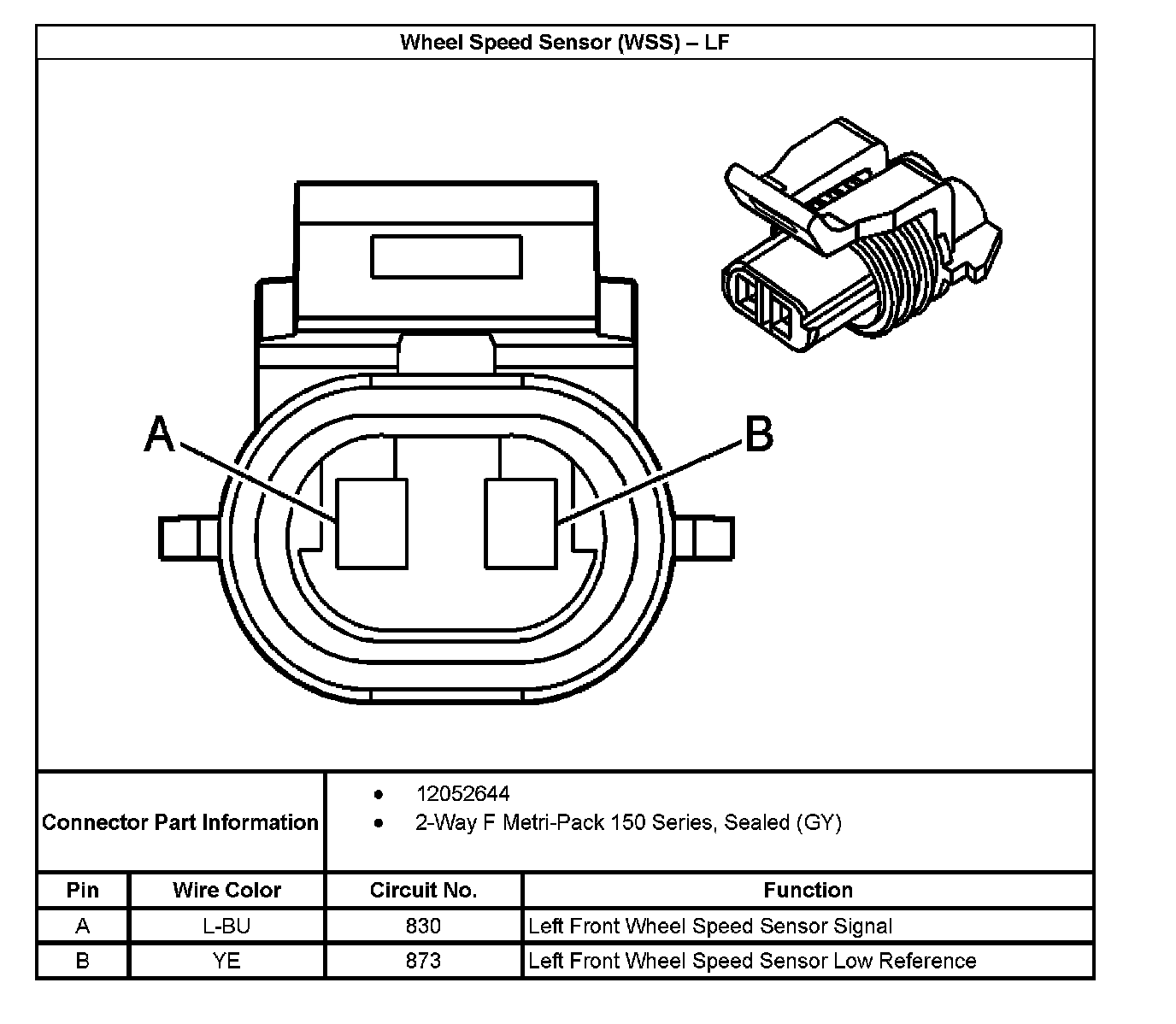

Wheel Speed Sensor (WSS) - LF

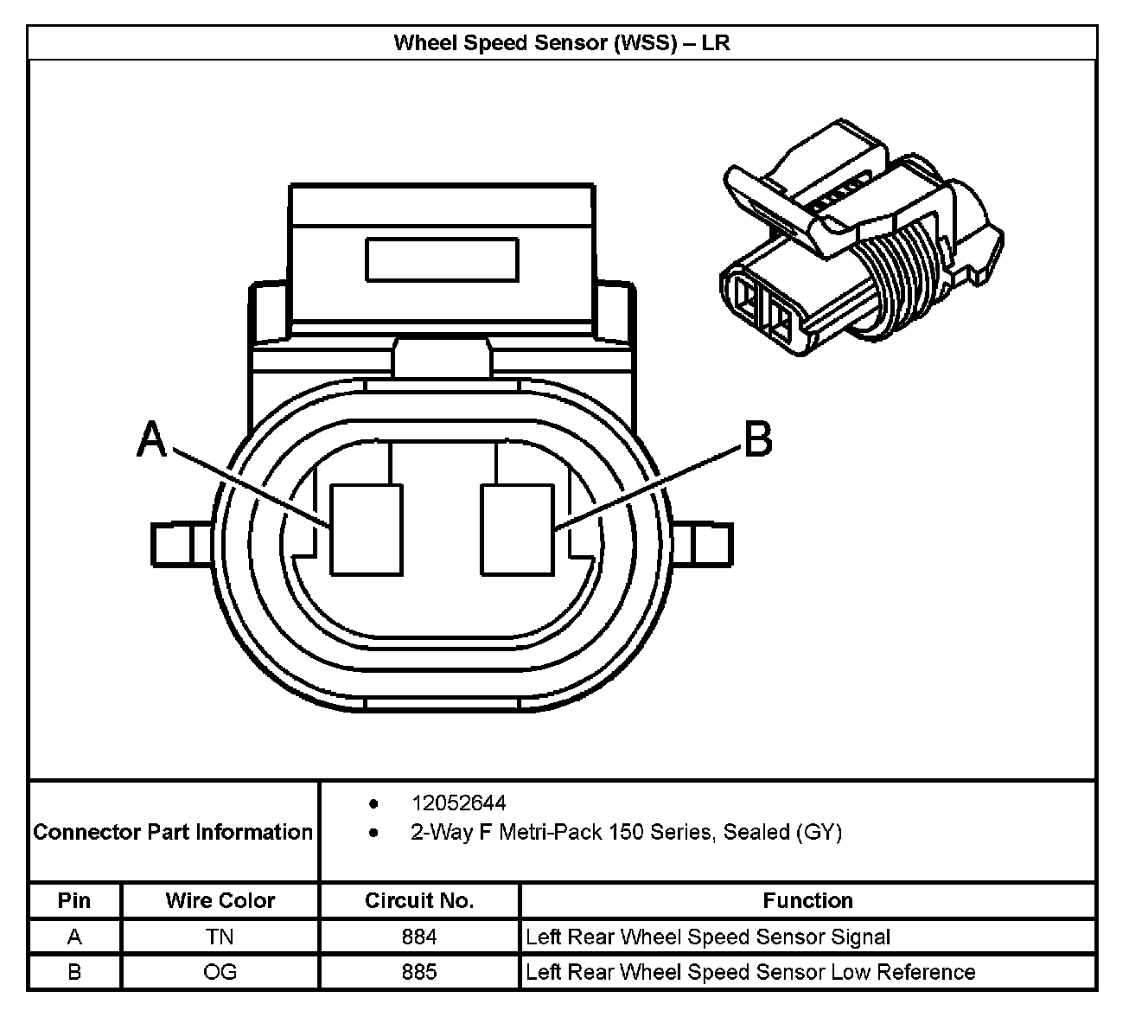

Wheel Speed Sensor (WSS) - LR

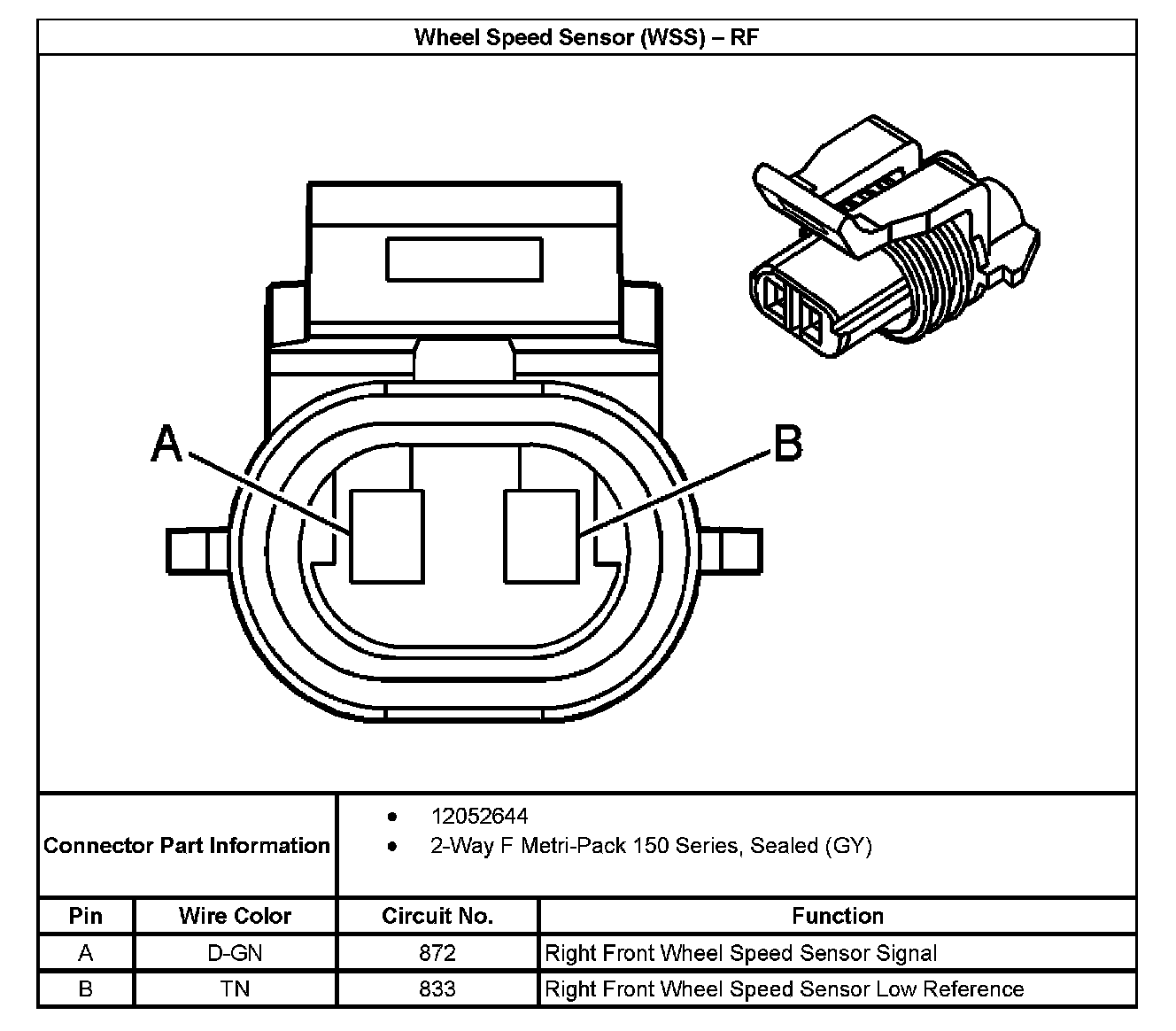

Wheel Speed Sensor (WSS) - RF

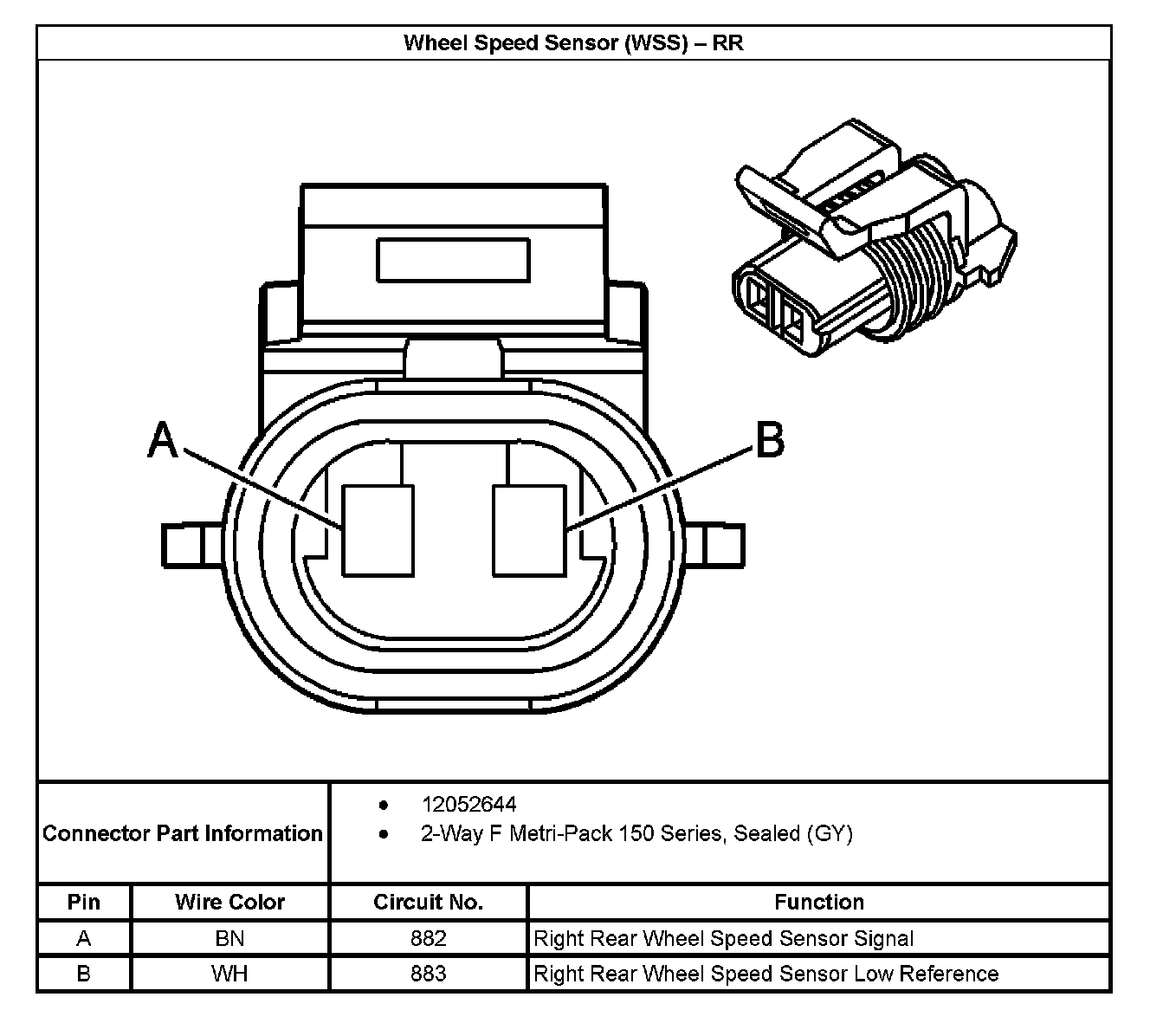

Wheel Speed Sensor (WSS) - RR
