Cellular Phone

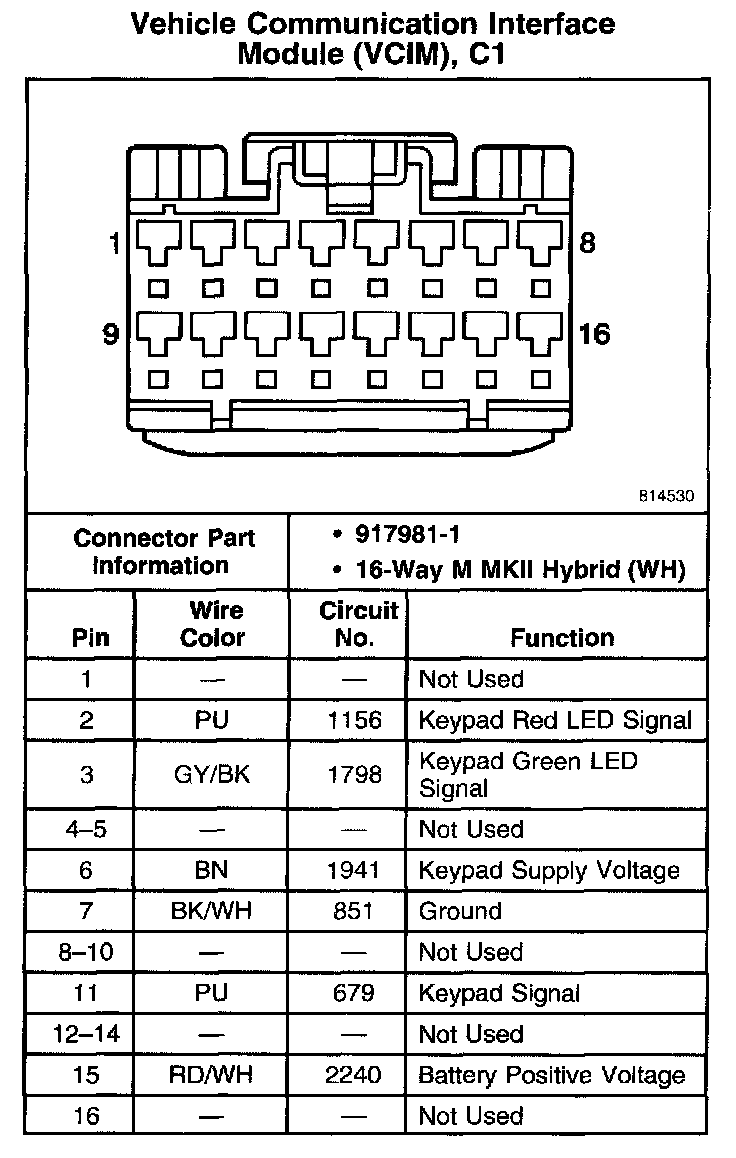

Vehicle Communication Interface Module (VCIM), C1:

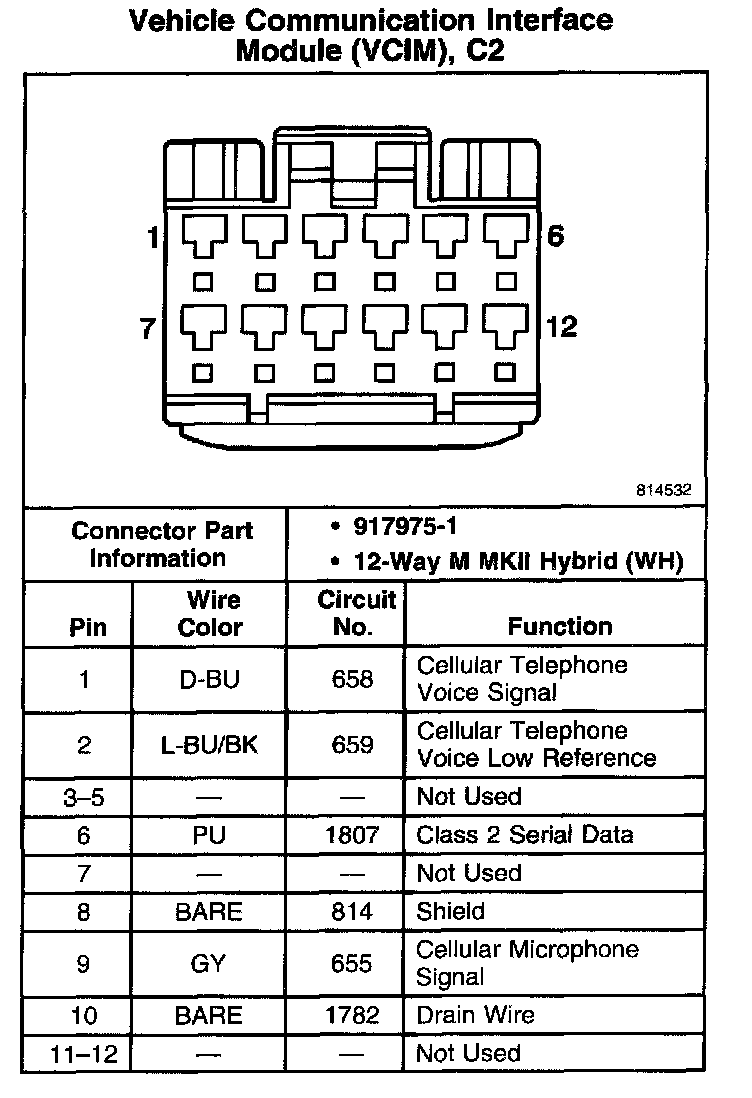

Vehicle Communication Interface Module (VCIM), C2:

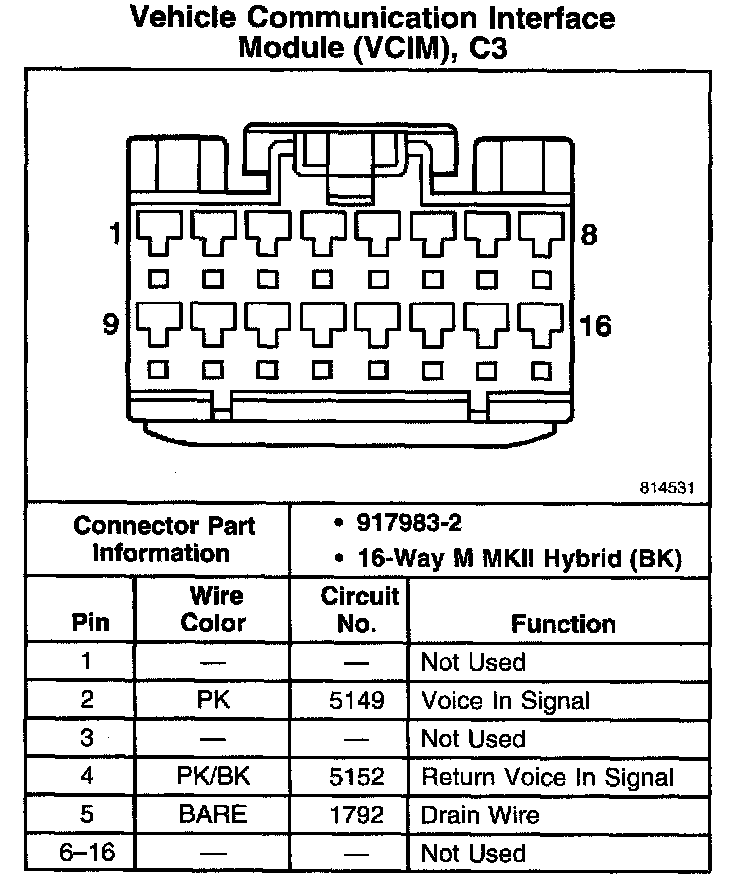

Vehicle Communication Interface Module (VCIM), C3:

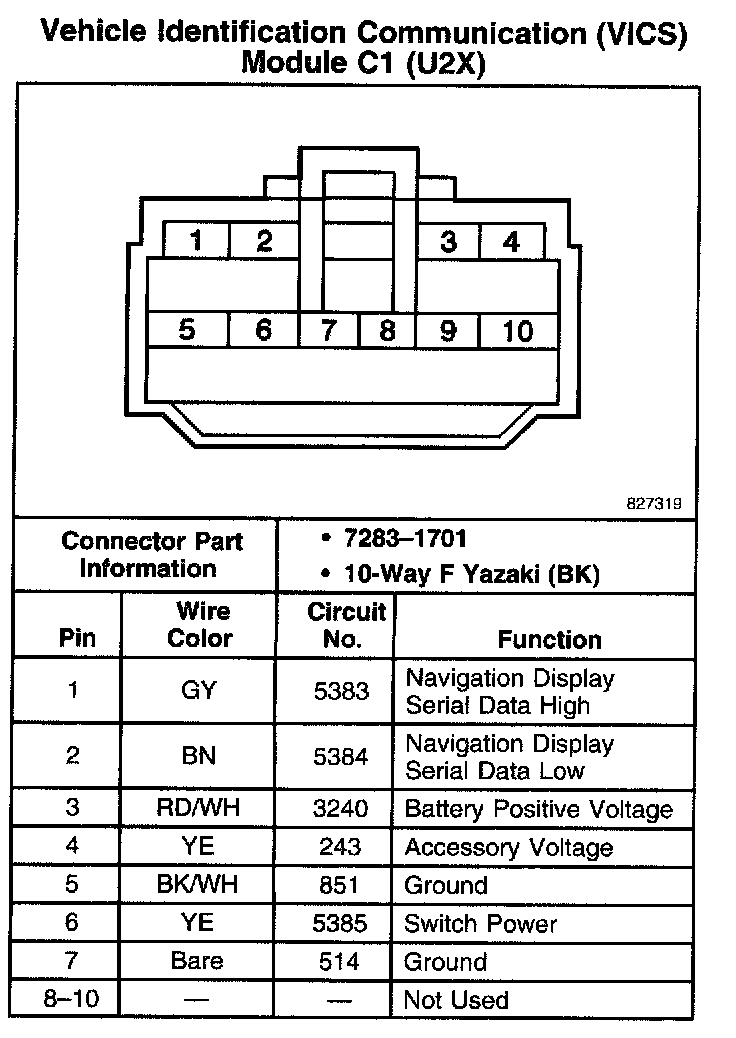

Vehicle Identification Communication (VICS) Module C1 (U2X):
