Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2004
>>
SRX AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compact Disc Player (CD)
>>
CD Changer
CD Changer

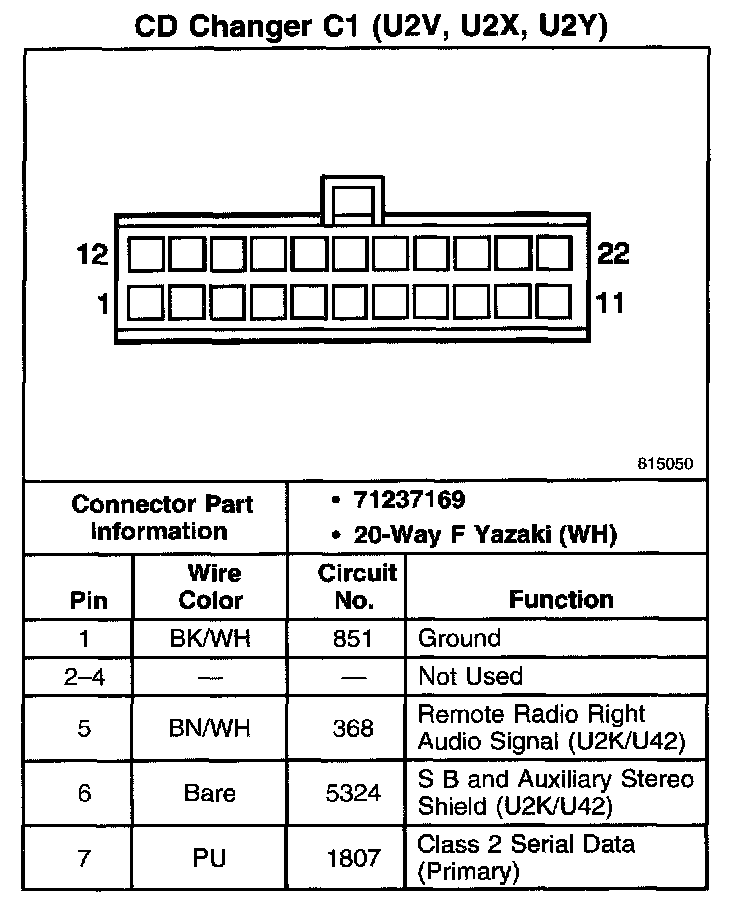

CD Changer C1 (With RPO Code U2V, U2X, U2Y):
CD Changer C1 (With RPO Code U2V, U2X, U2Y):

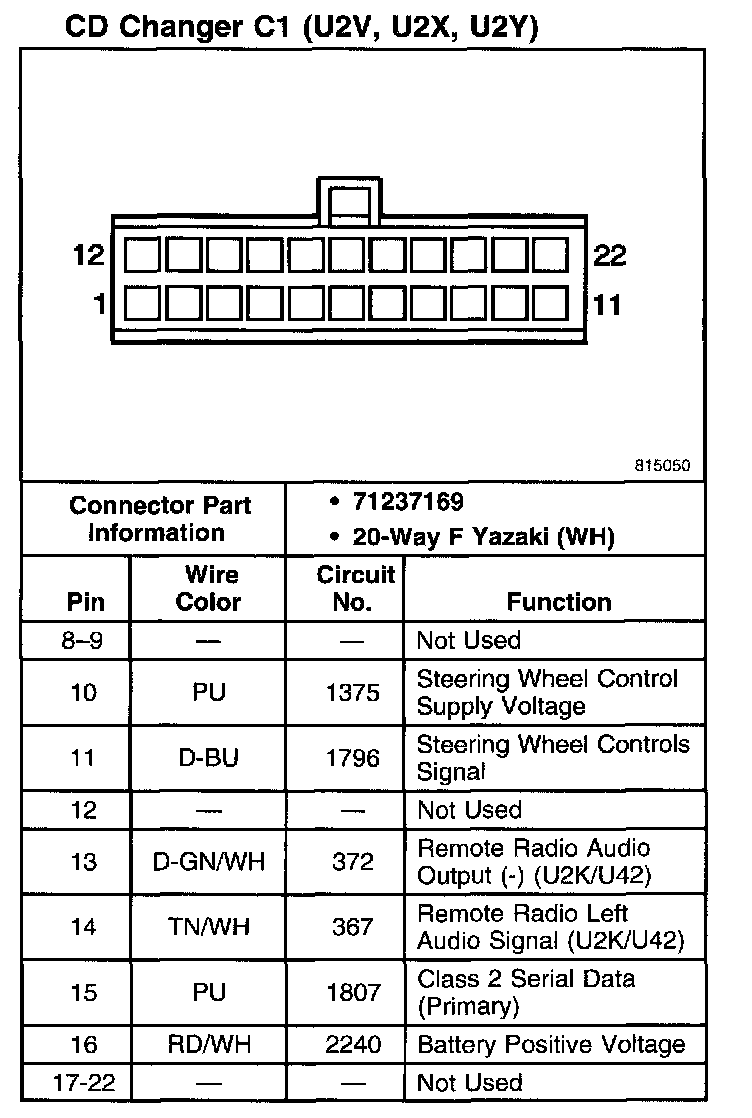

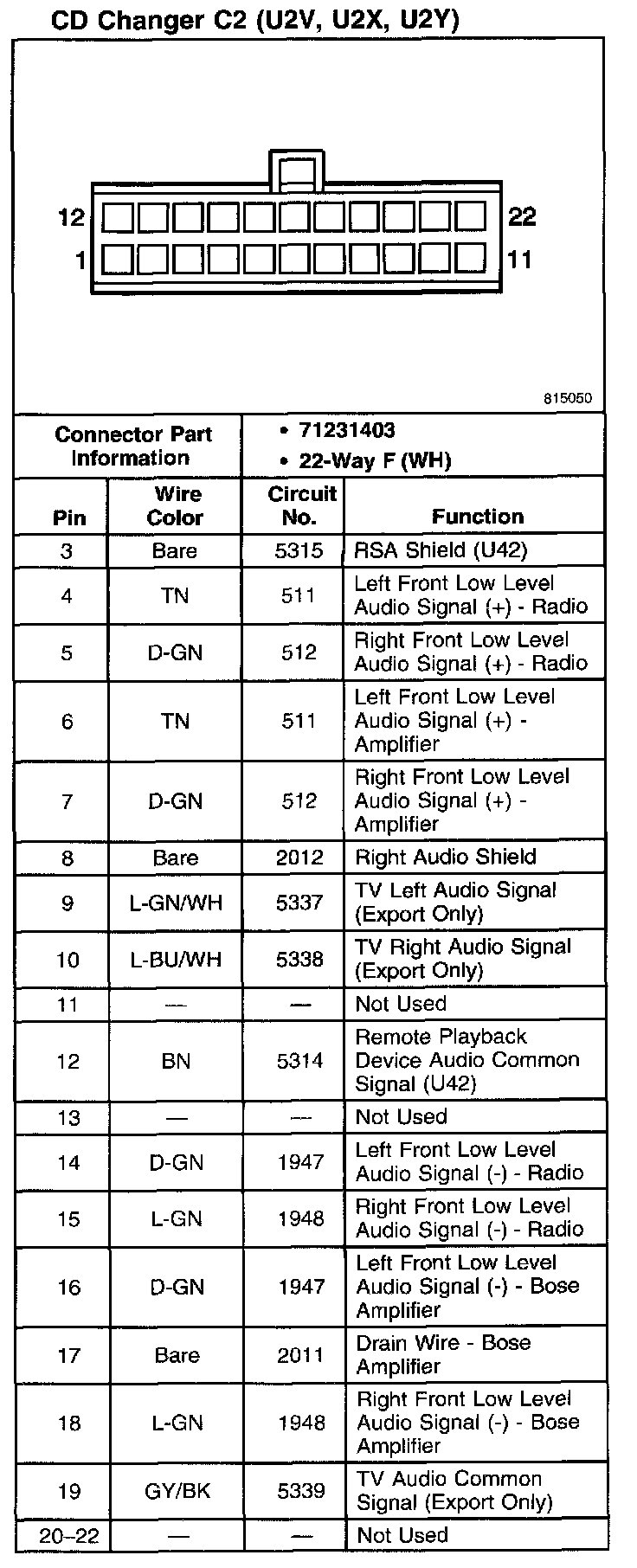

CD Changer C2 (With RPO Code U2V, U2X, U2Y):
CD Changer C2 (With RPO Code U2V, U2X, U2Y):
