Connector Views
>>
Cooling System
>>
System Diagram
System Diagram

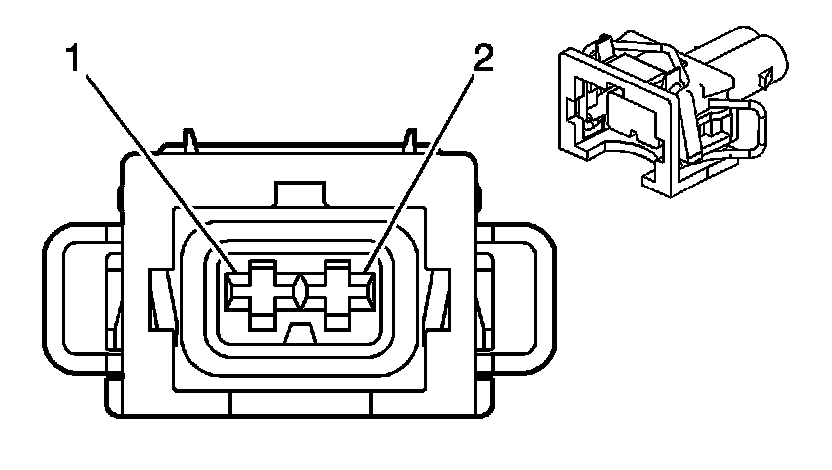

After Boil Coolant Pump (V92)

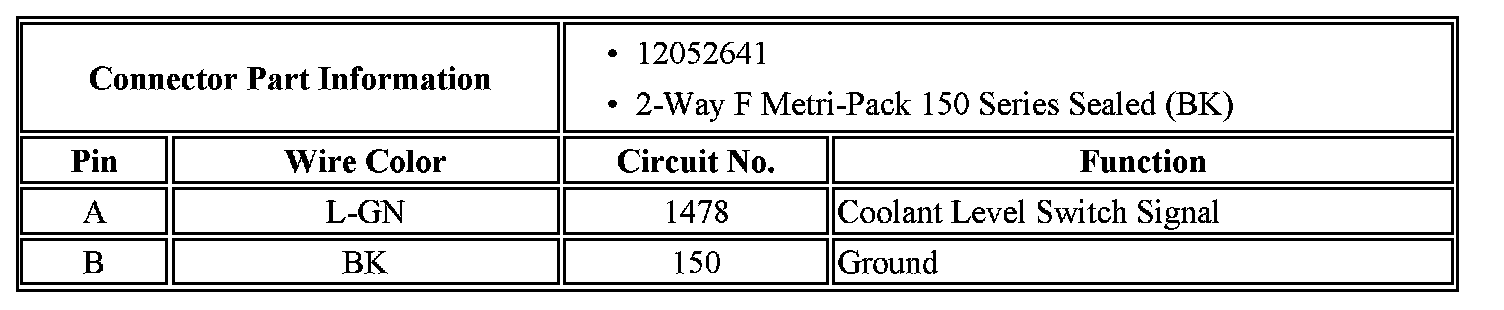

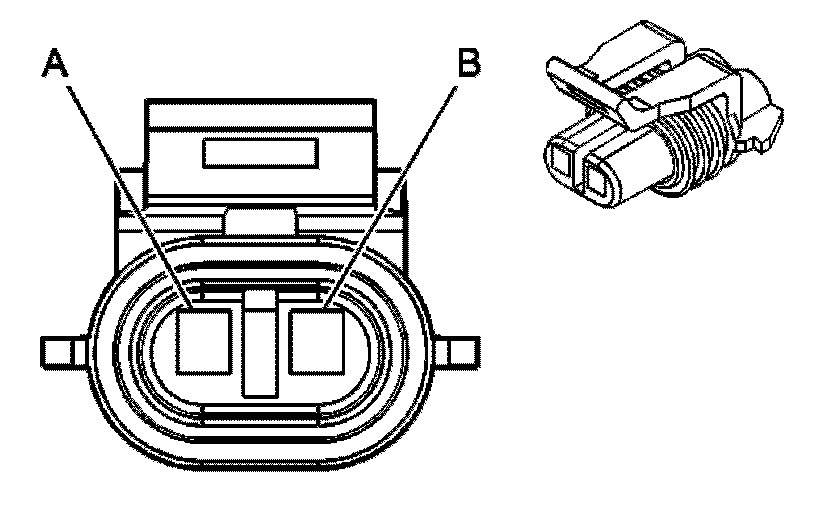

Coolant Level Switch

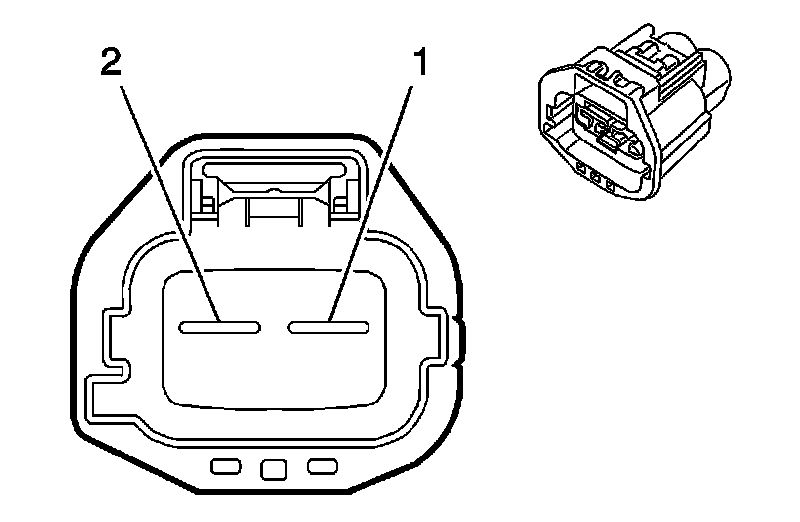

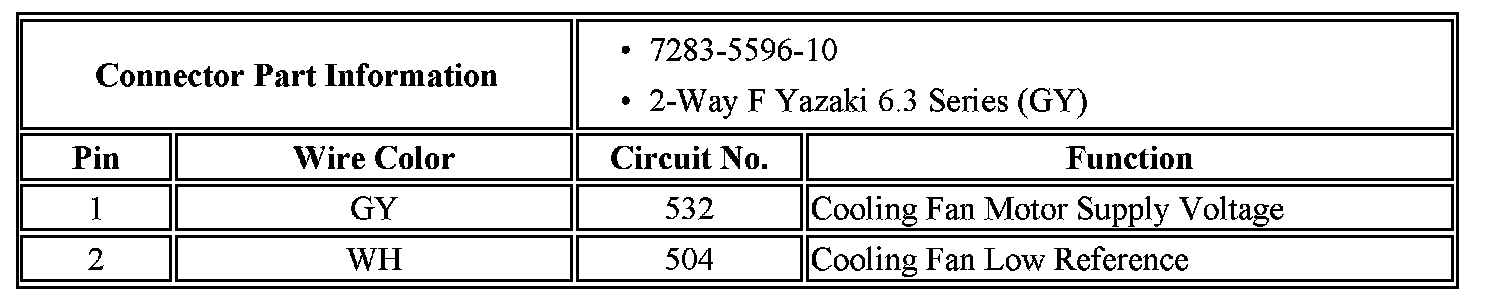

Cooling Fan - Left

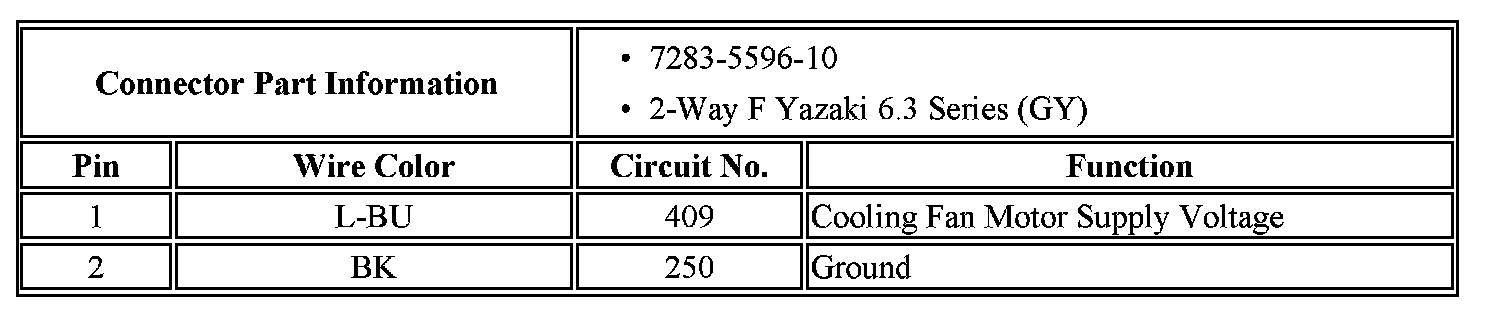

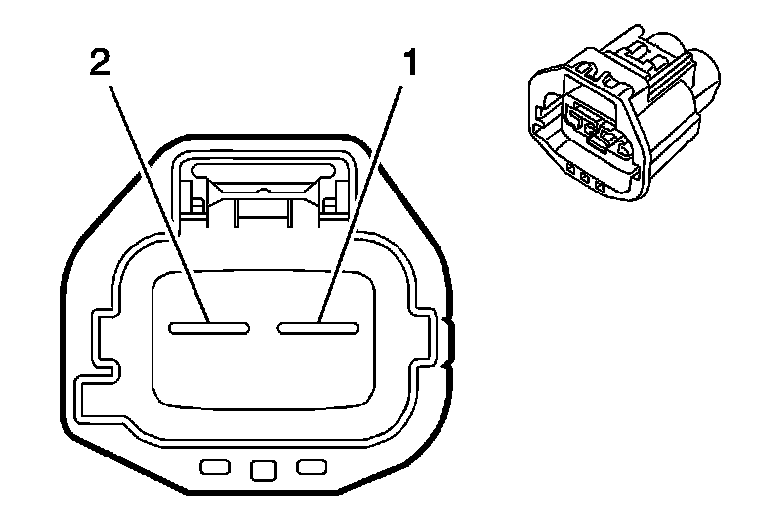

Cooling Fan - Right
