Pedal Positioning Sensor
Pedal Positioning Sensor

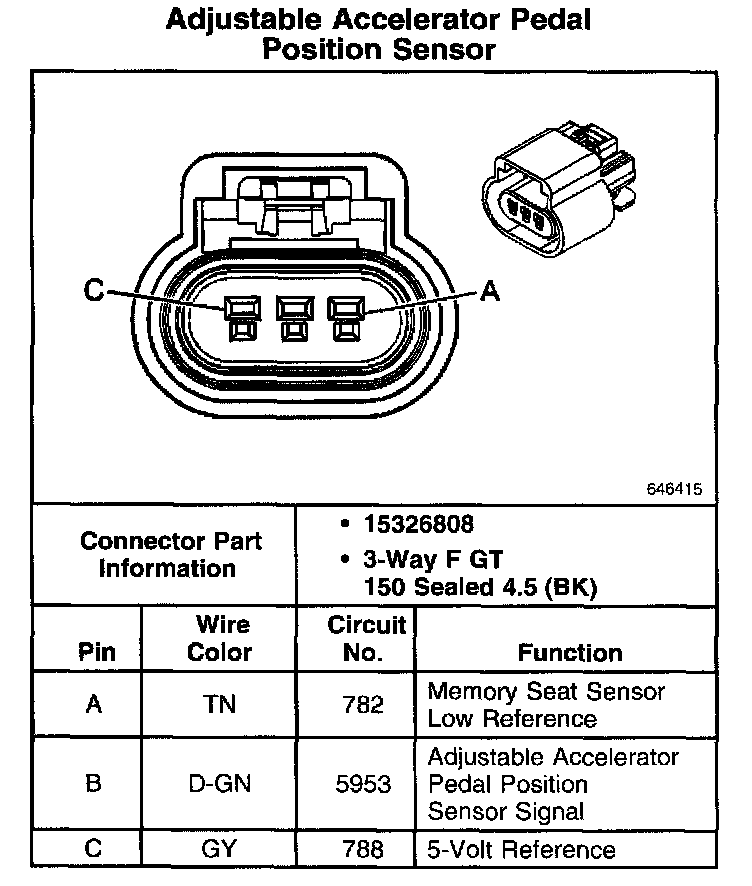

Adjustable Accelerator Pedal Position Sensor:

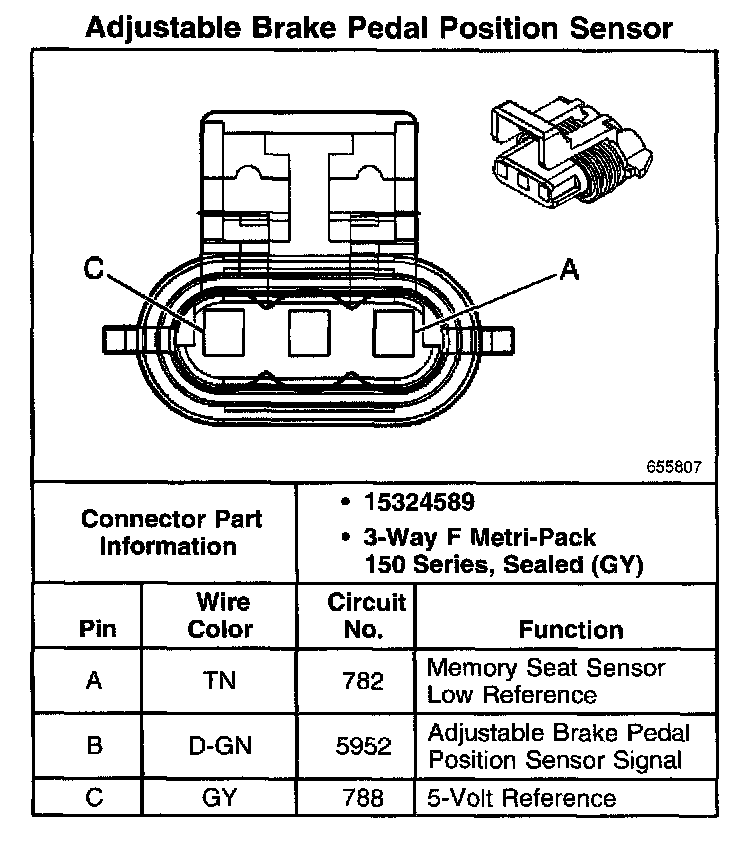

Adjustable Brake Pedal Position Sensor:
