Power Seat Motor Position Sensor

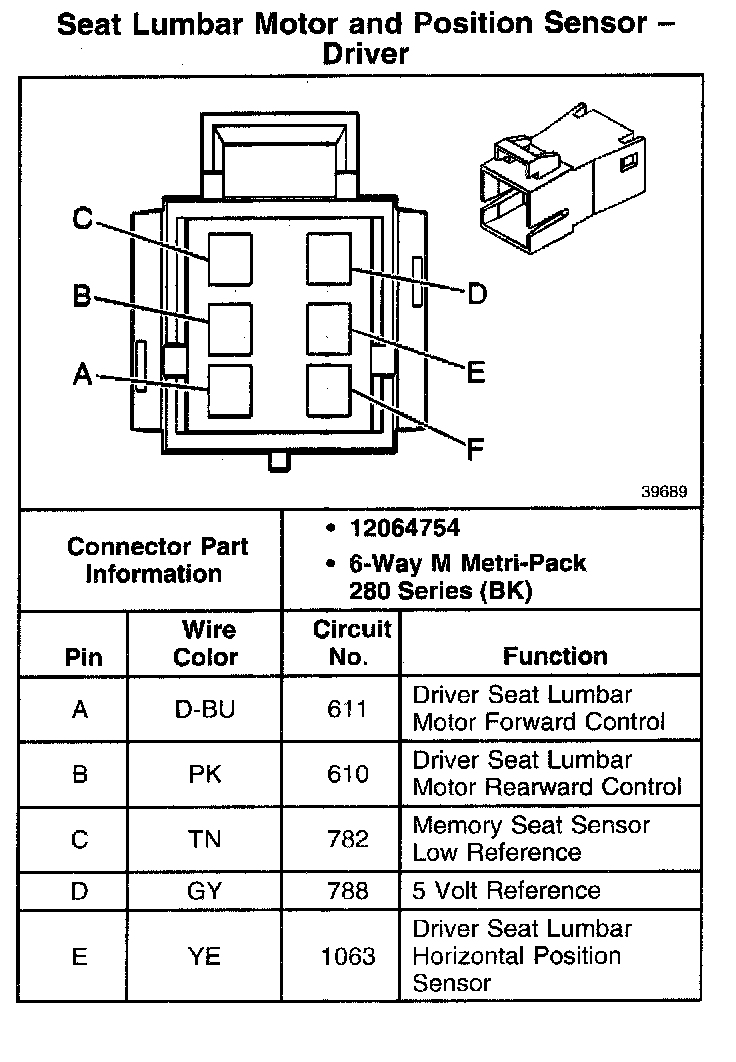

Seat Lumbar Motor And Position Sensor - Driver:



Seat Recline Position Sensor - Driver:
