Combination Switch

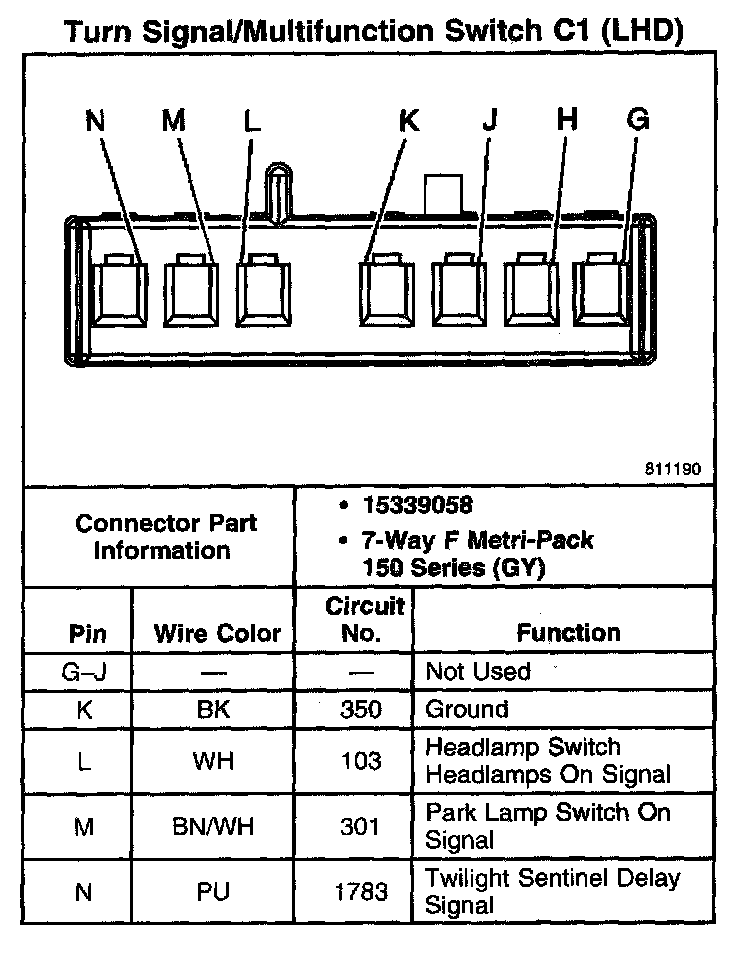

Turn Signal/Multifunction Switch C1 (LHD):

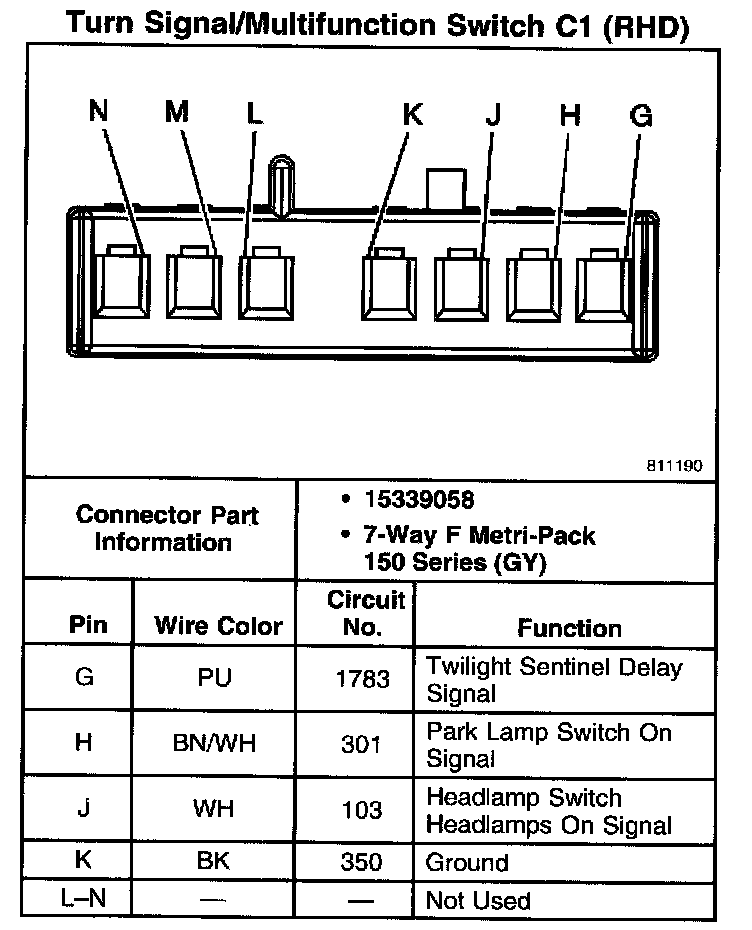

Turn Signal/Multifunction Switch C1 (RHD):

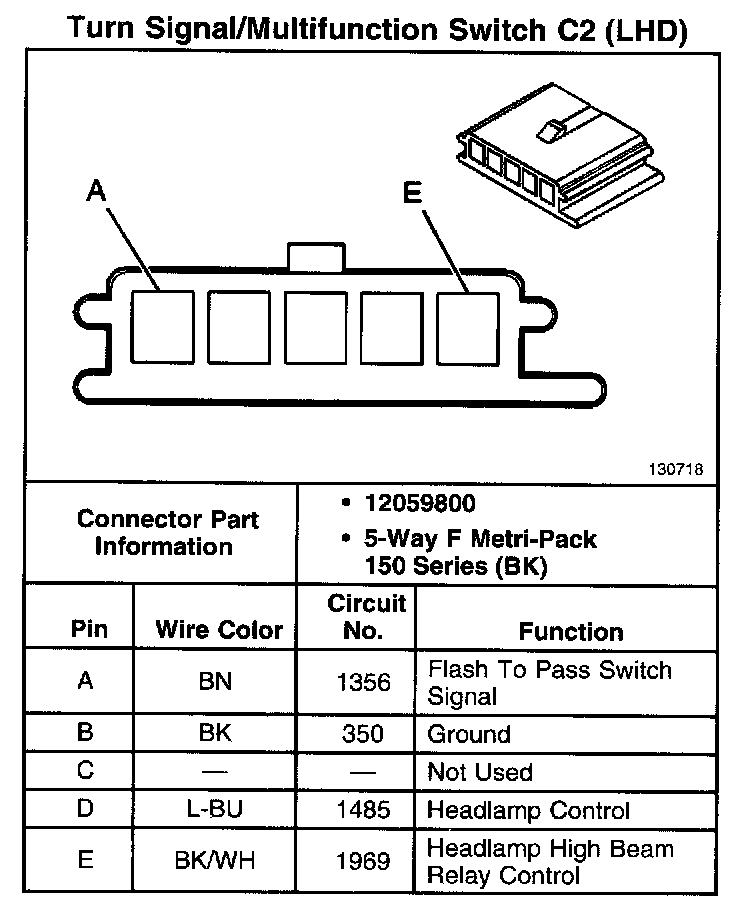

Turn Signal/Multifunction Switch C2 (LHD):

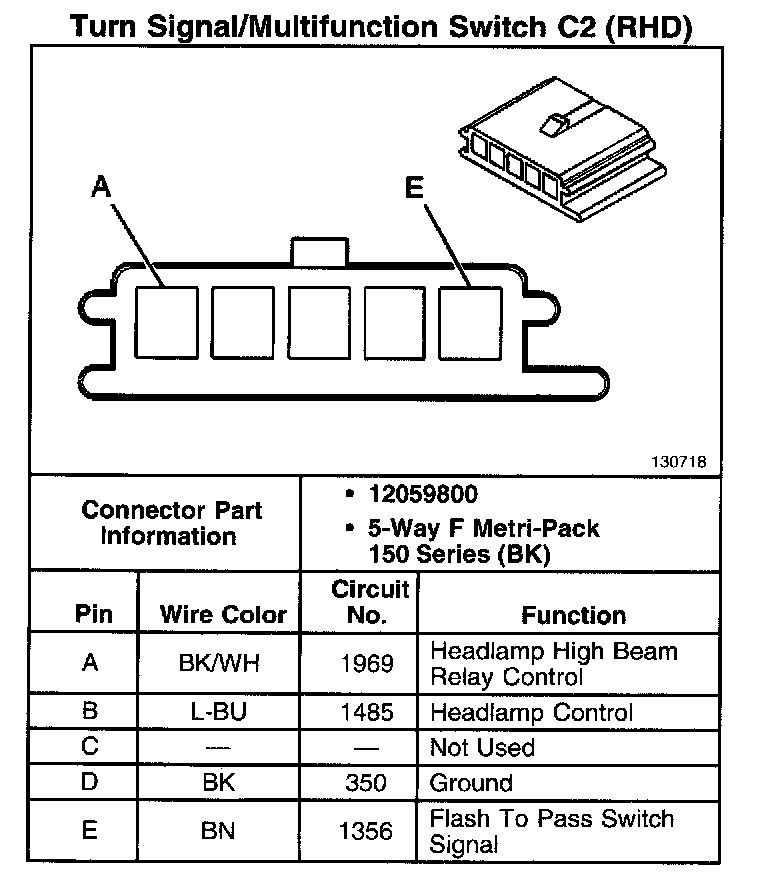

Turn Signal/Multifunction Switch C2 (RHD):

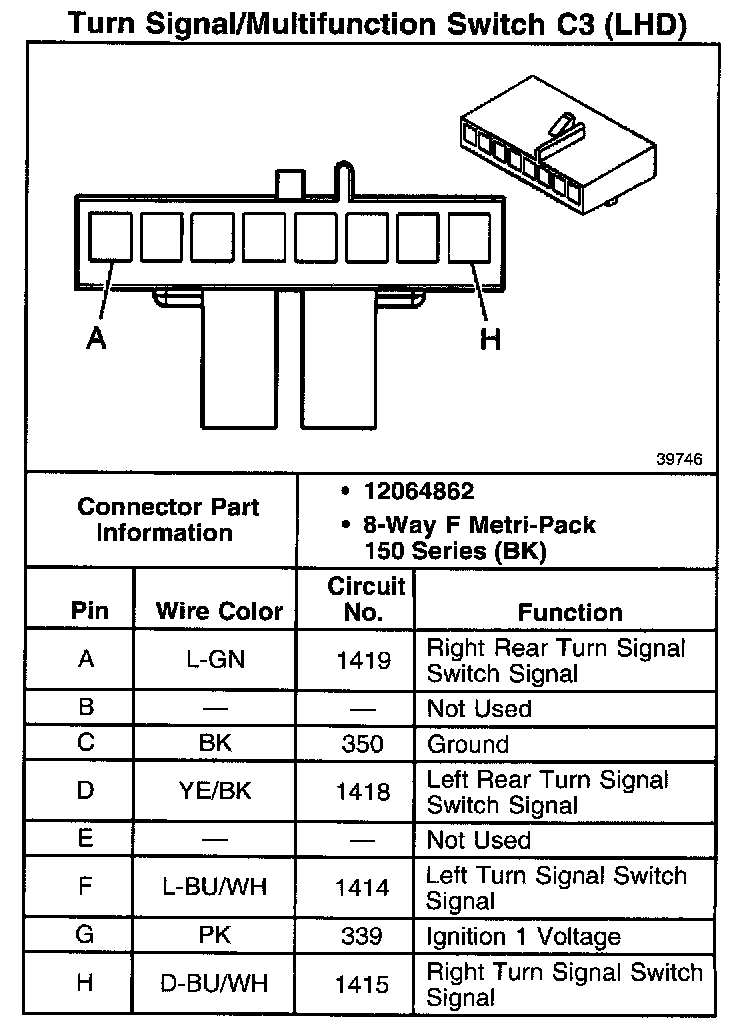

Turn Signal/Multifunction Switch C3 (LHD):

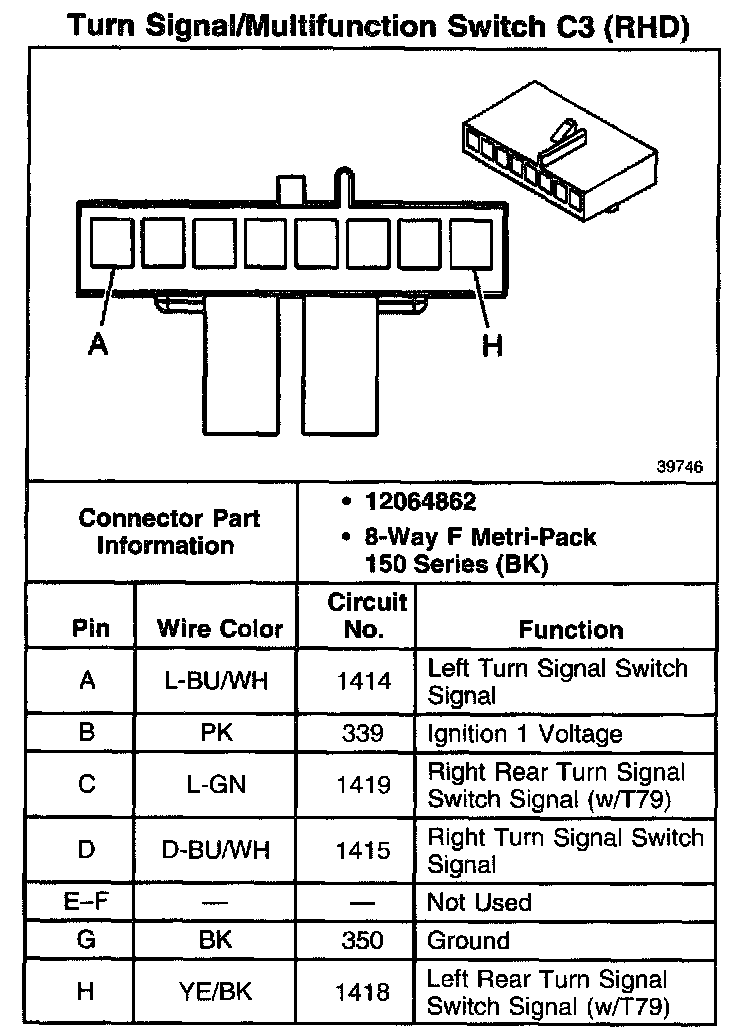

Turn Signal/Multifunction Switch C3 (RHD):

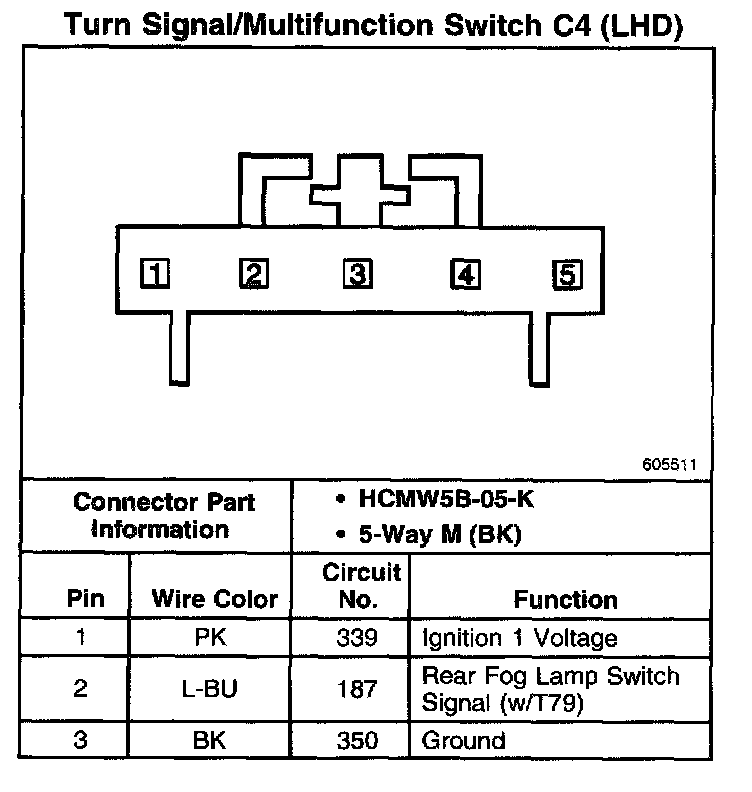

Turn Signal/Multifunction Switch C4 (LHD) Part 1:

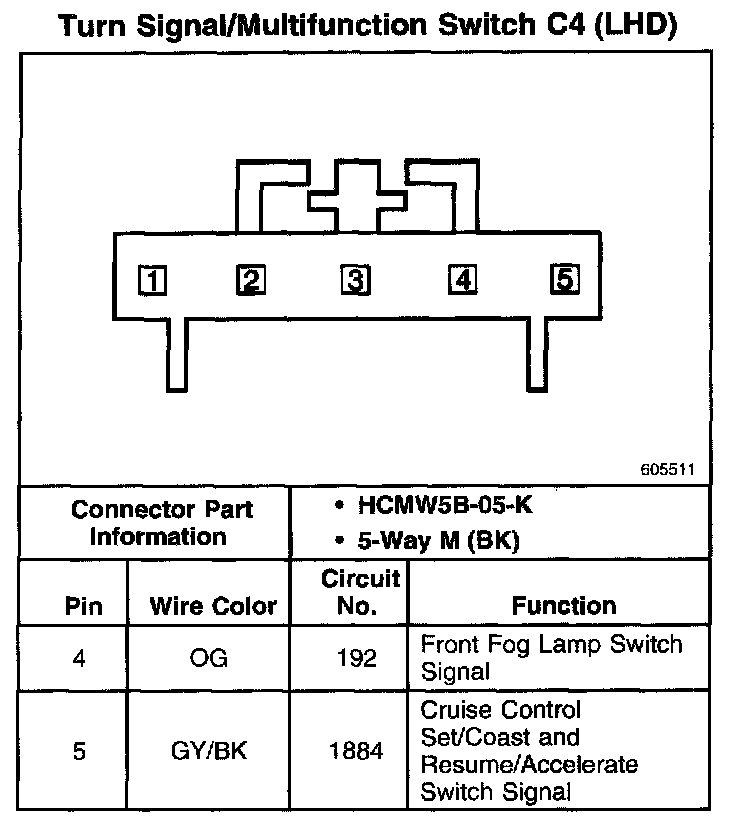

Turn Signal/Multifunction Switch C4 (LHD) Part 2:

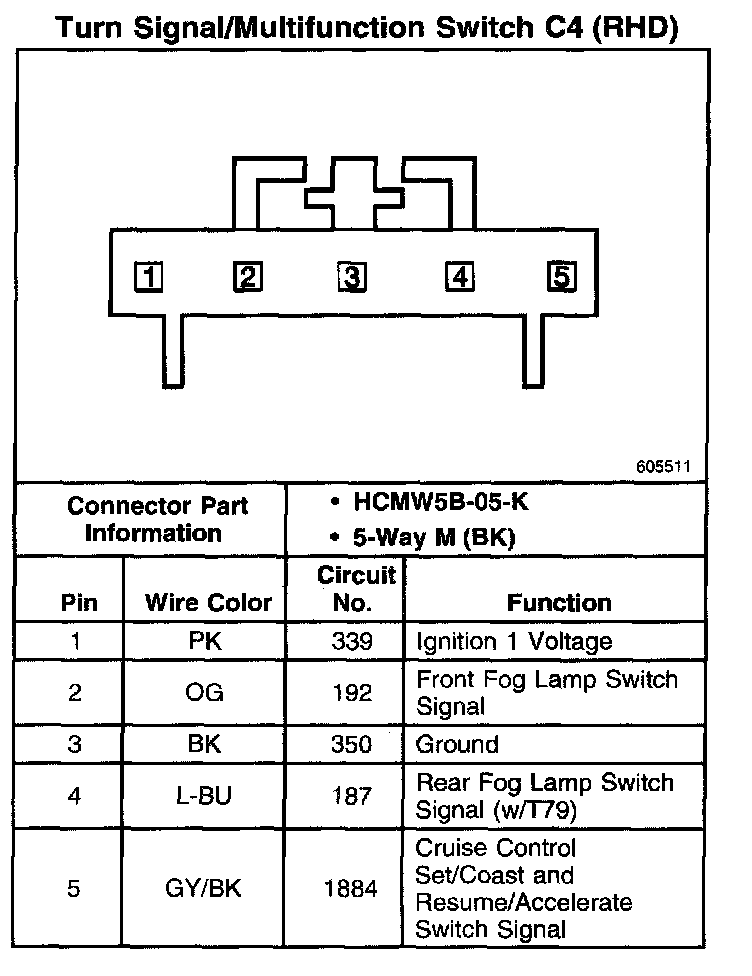

Turn Signal/Multifunction Switch C4 (RHD):
