Wiper Switch

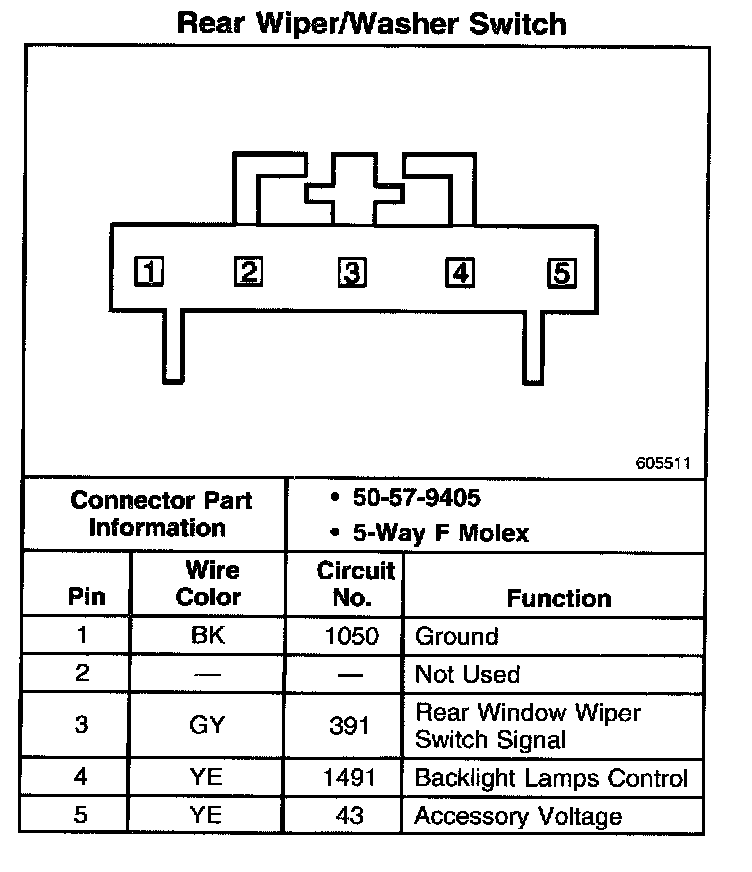

Rear Wiper/Washer Switch:

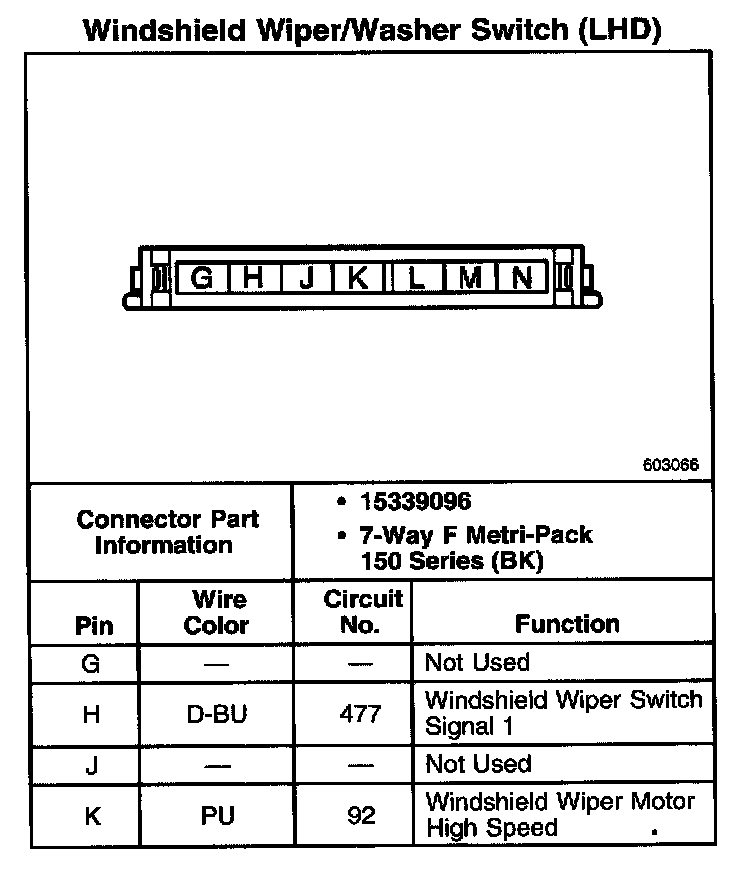

Windshield Wiper/Washer Switch (LHD) Part 1:

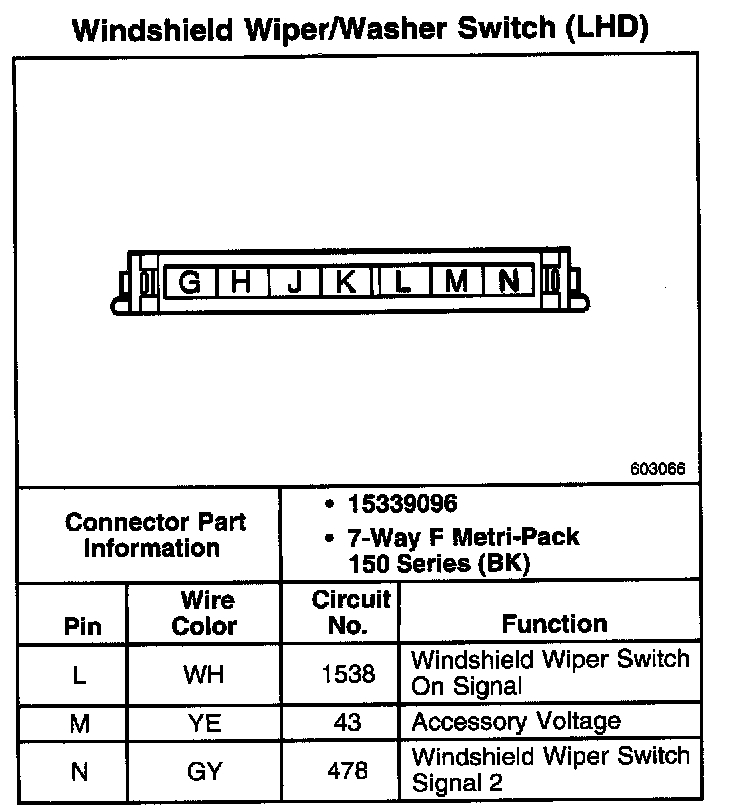

Windshield Wiper/Washer Switch (LHD) Part 2:
Windshield Wiper/Washer Switch (RHD):
