Sun Load Sensor Replacement

SUN LOAD SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the defroster grille.

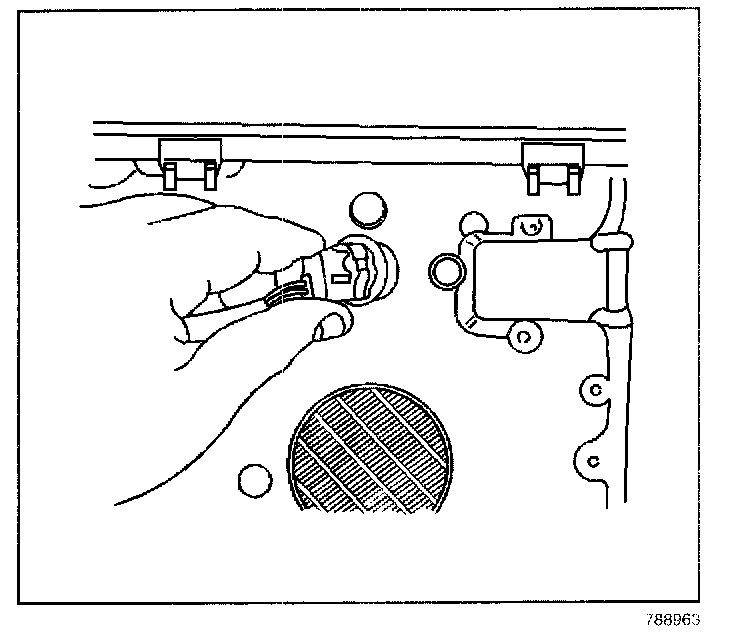

2. Remove the sunload sensor from the defroster grille by twisting the sensor 1/4 turn counter clockwise.
3. Disconnect the sunload sensor electrical connector.
4. Remove the sunload sensor.

INSTALLATION PROCEDURE




1. Connect the sunload sensor electrical connector.

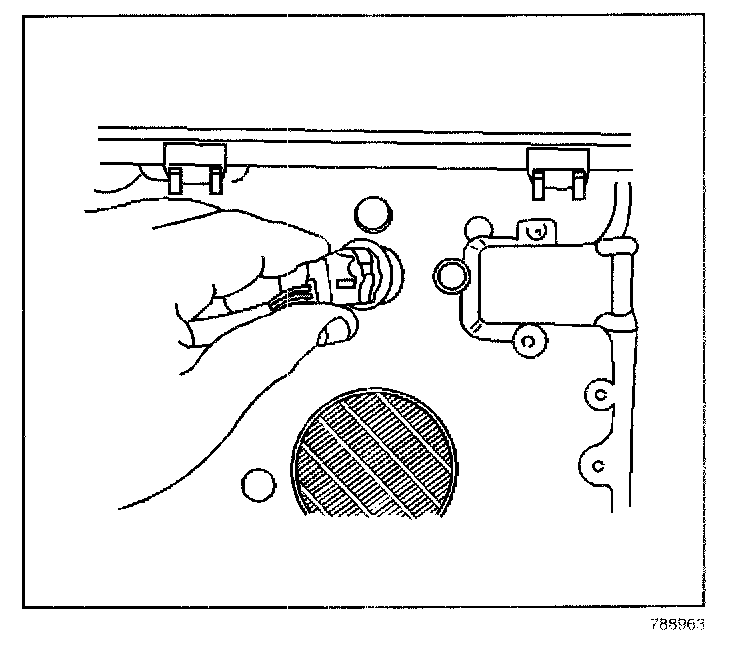

2. Install the sunload sensor to the defroster grille by twisting the sensor 1/4 turn clockwise.
3. Install the defroster grille.
