Console Harness Routing View
Console Harness Routing View

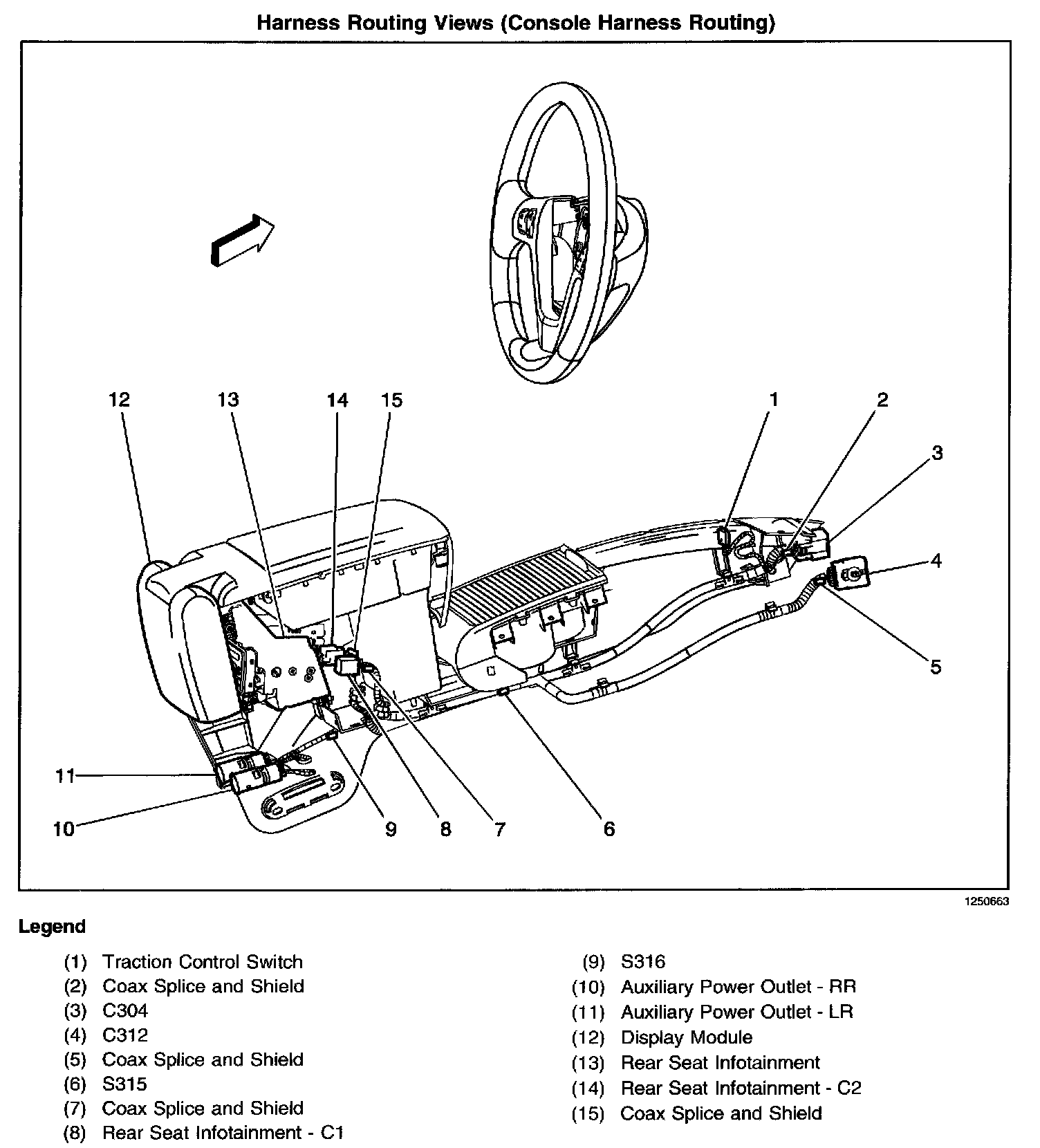

Harness Routing Views (Console Harness Routing):
