Fuse Block - Left Rear
Fuse Block - Left Rear

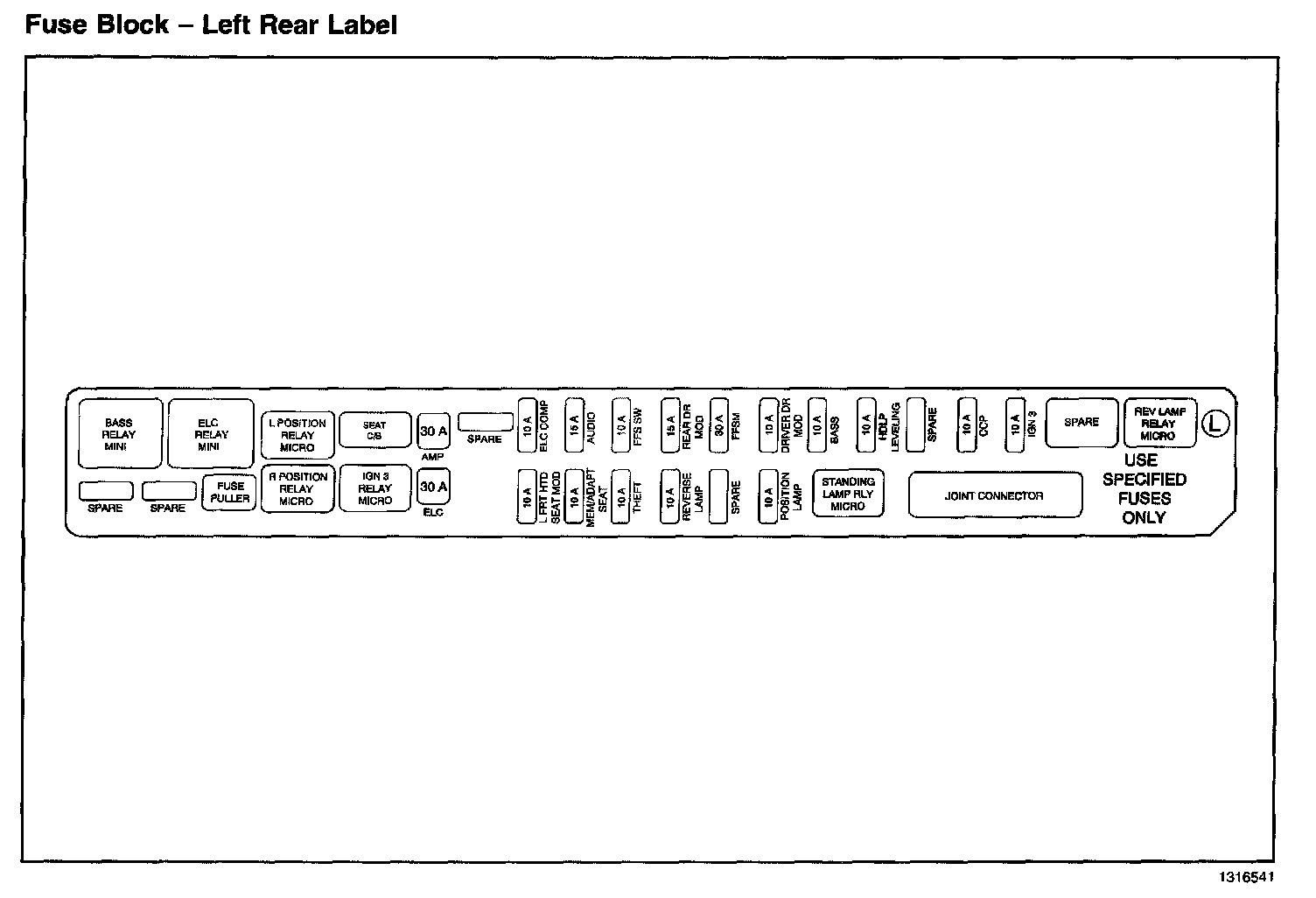

Location View:

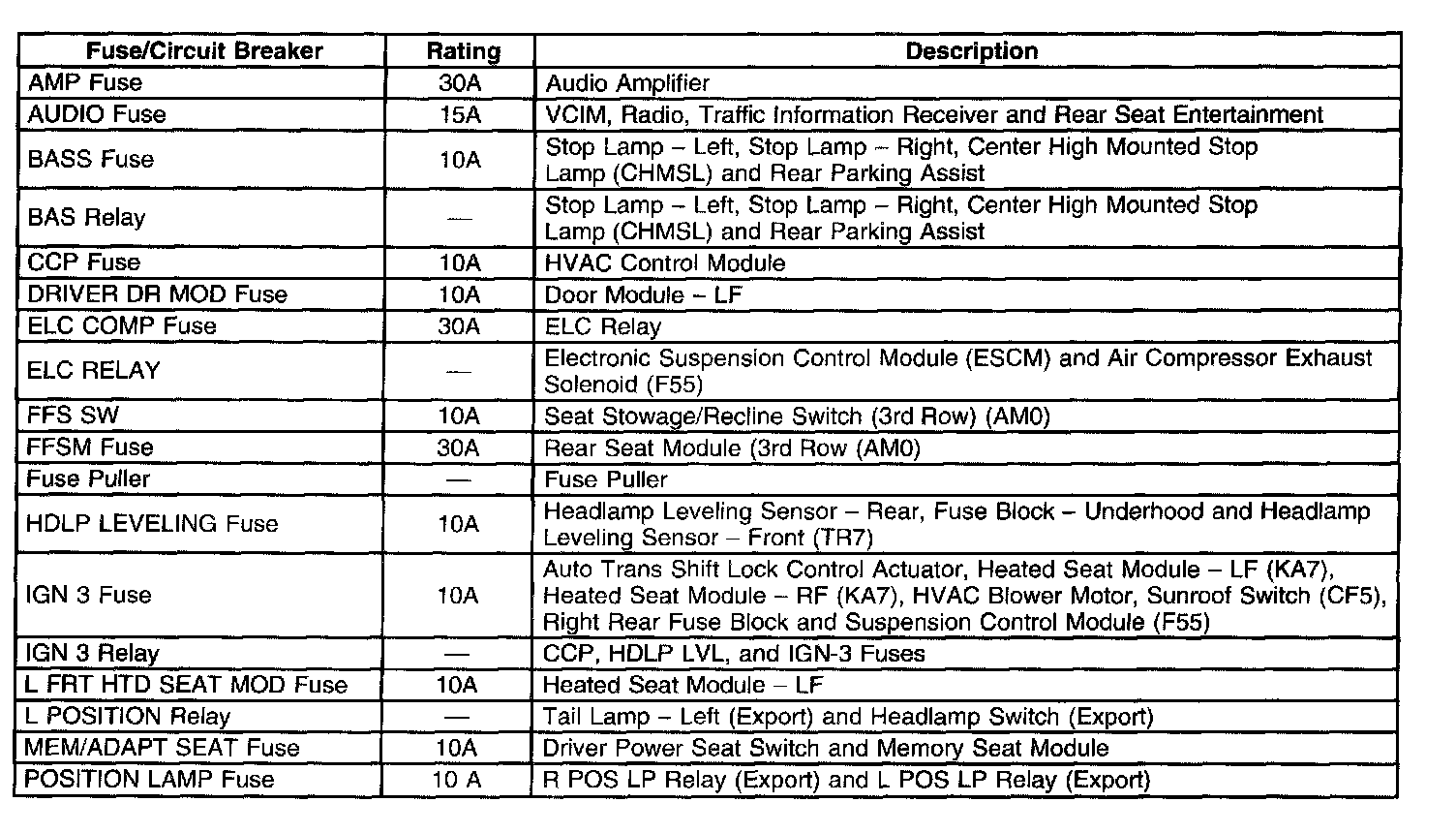

Application Table, Part 1:

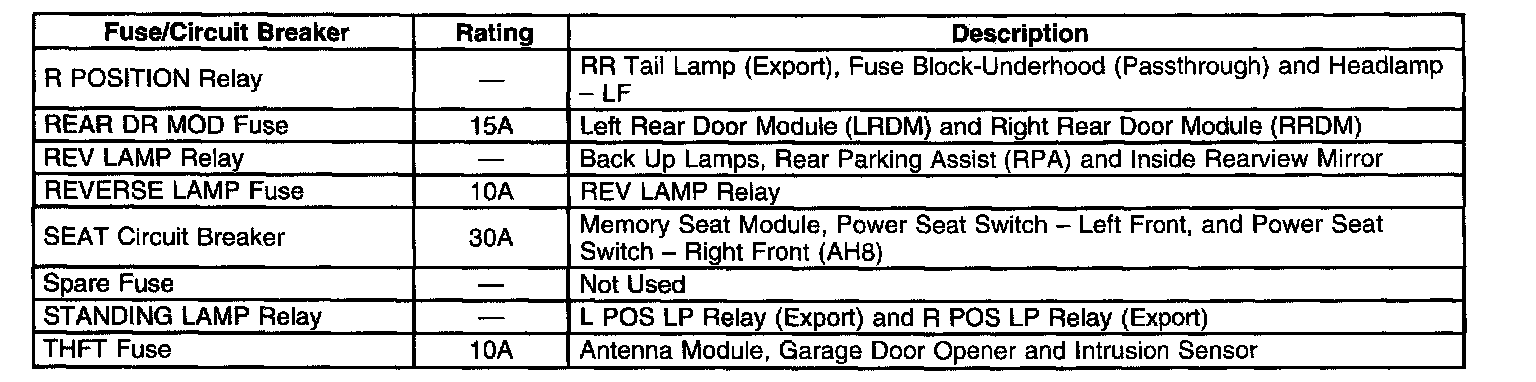

Application Table, Part 2:

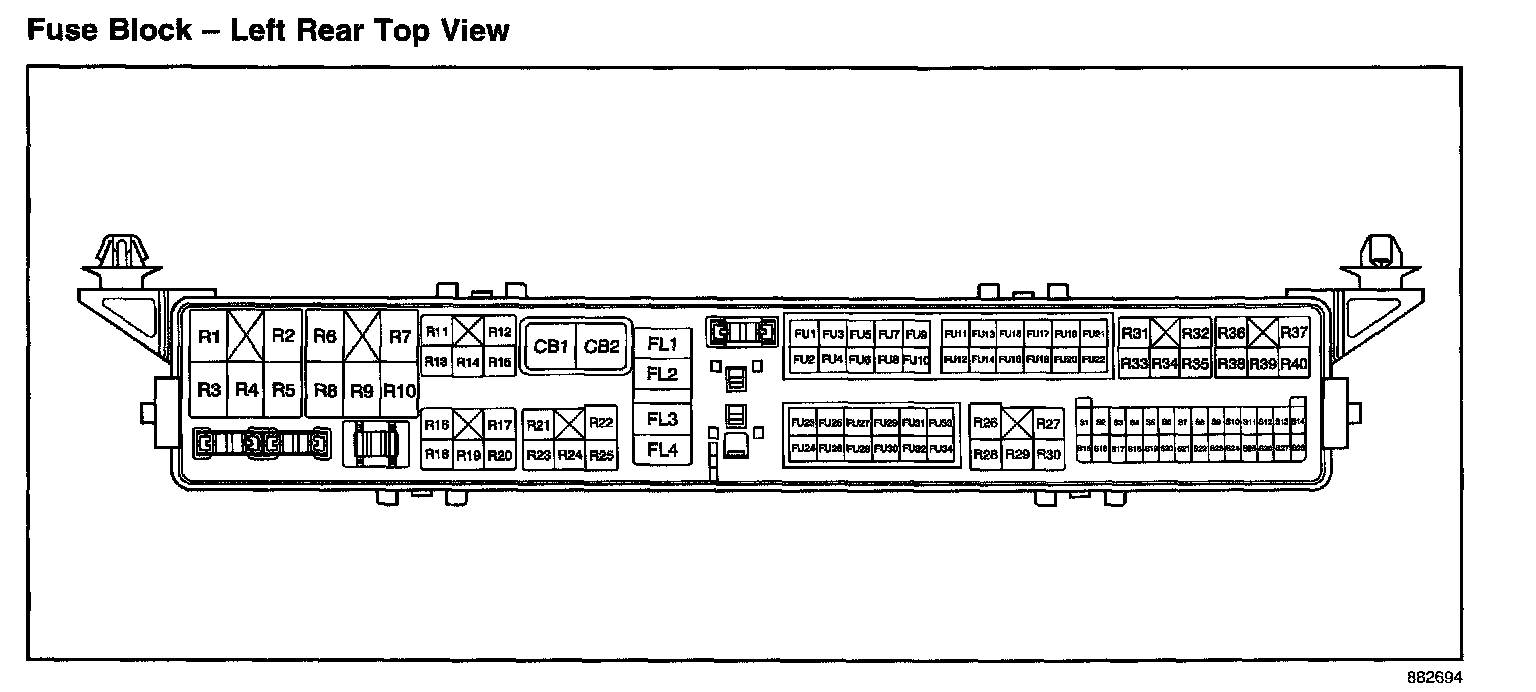

Location View:
Location View:
