Antenna Module Replacement

ANTENNA MODULE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the headliner.
2. Disconnect the coax cables.
3. Disconnect the electrical connector.

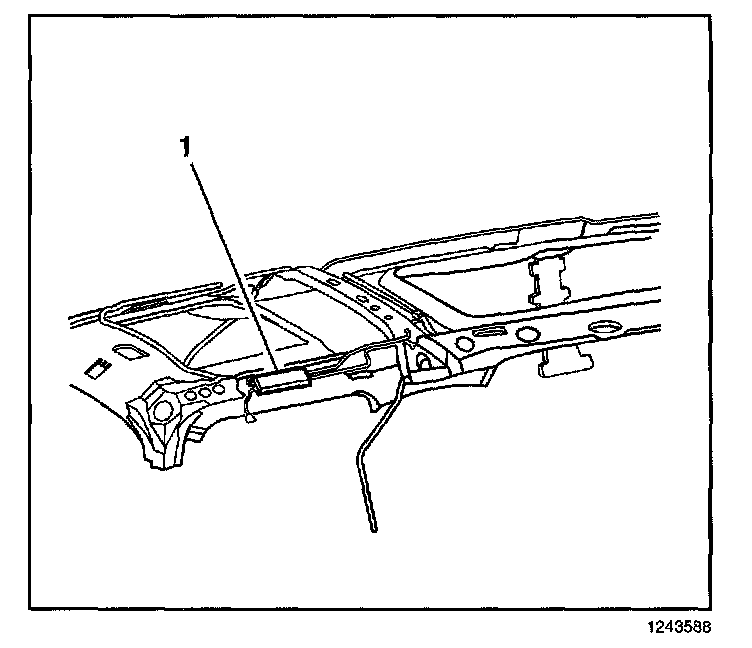

4. Slide the antenna module (1) off the mounting bracket.

INSTALLATION PROCEDURE

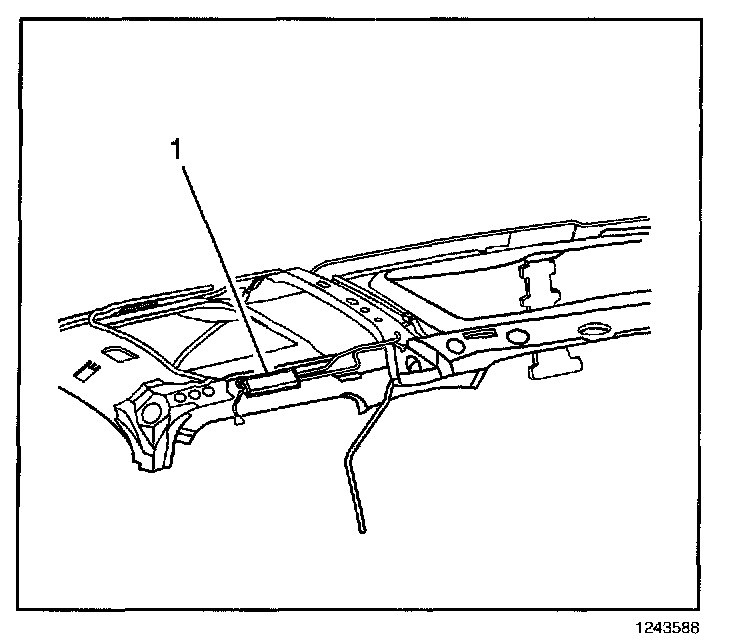

1. Install the antenna module (1) to the mounting bracket.
2. Connect all the electrical connectors.
3. Install the headliner.
