Home
>>
Cadillac
>>
2004
>>
SRX AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Oil Pan, Engine
Oil Pan, Engine

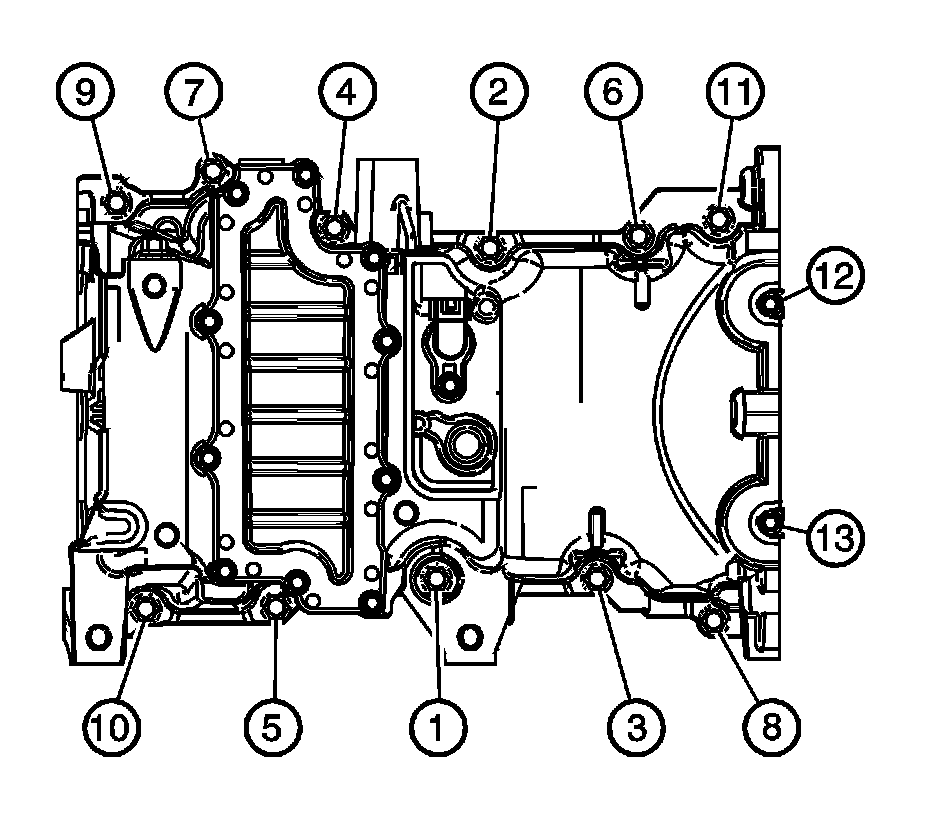

Oil Pan
Tighten the 8 mm bolts (1-11)
23 Nm (17 ft. lbs.)
Tighten the 6 mm bolts (12, 13)
10 Nm (89 inch lbs.)
