Battery Replacement
BATTERY REPLACEMENTREMOVAL PROCEDURE

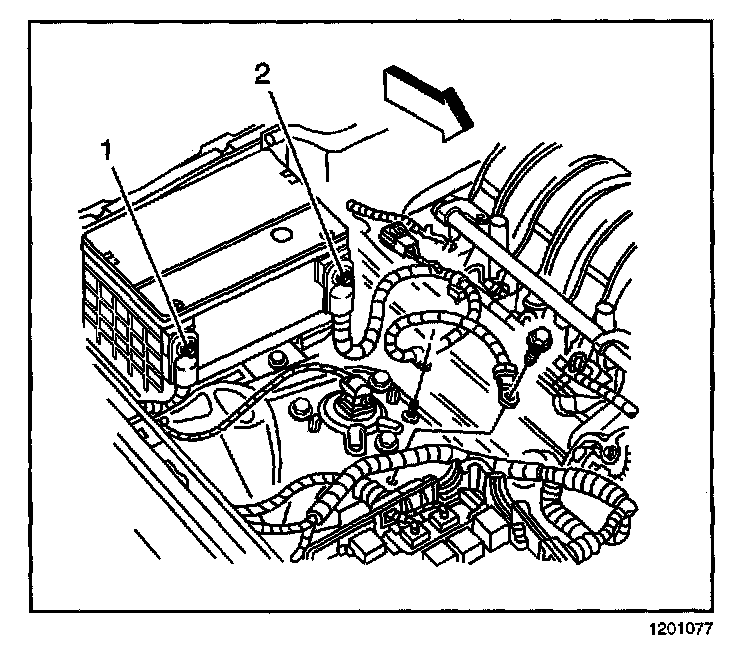

1. Disconnect the battery negative cable (2).
2. Disconnect the battery positive cable (1) from the battery.

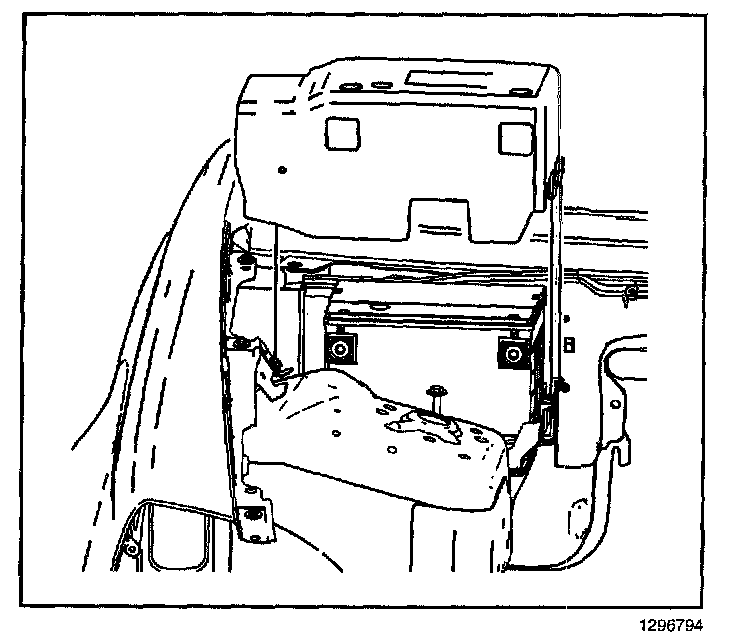

3. Remove the battery heat shield.

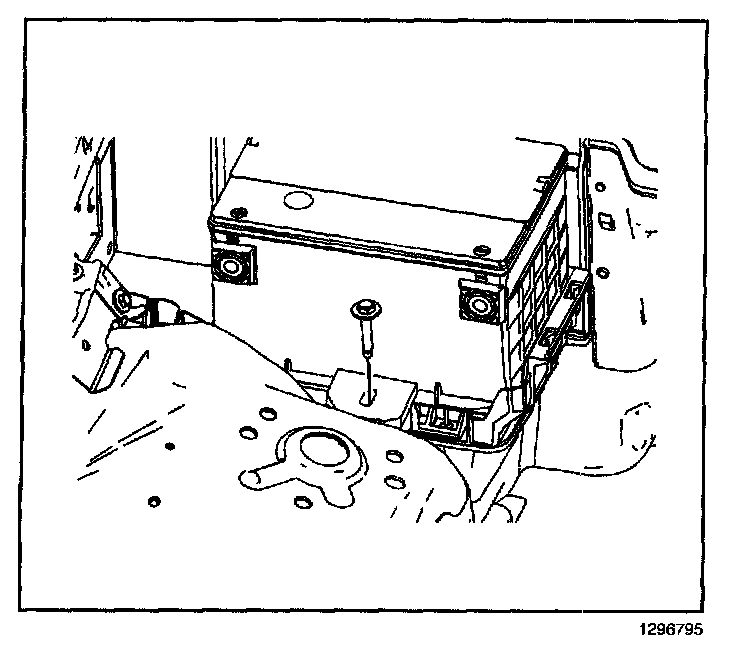

4. Remove the battery retainer bolt and battery retainer.
5. Remove the battery from the vehicle.
INSTALLATION PROCEDURE
1. Install the battery into the vehicle.
NOTE: Refer to Fastener Notice in Service Precautions.

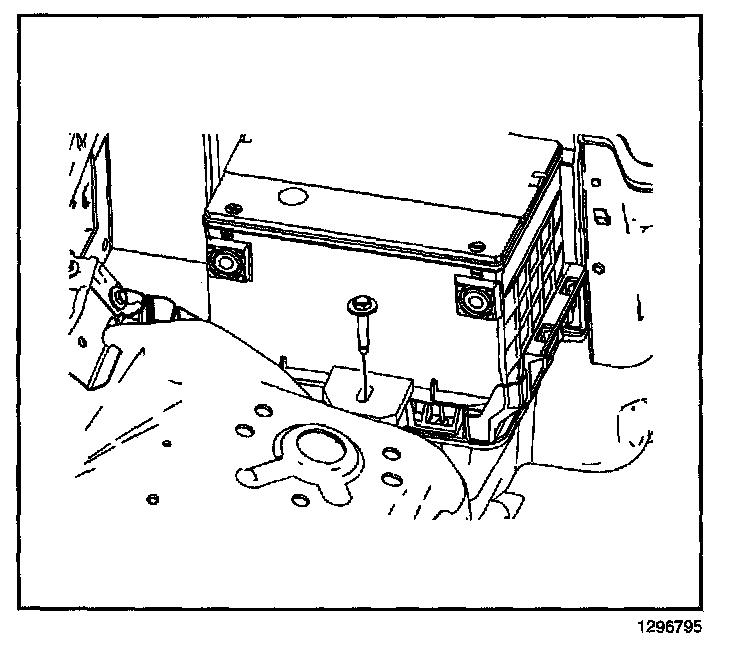

2. Install the battery retainer and bolt.
Tighten
Tighten the battery retainer bolt to 18 N.m (13 lb ft).

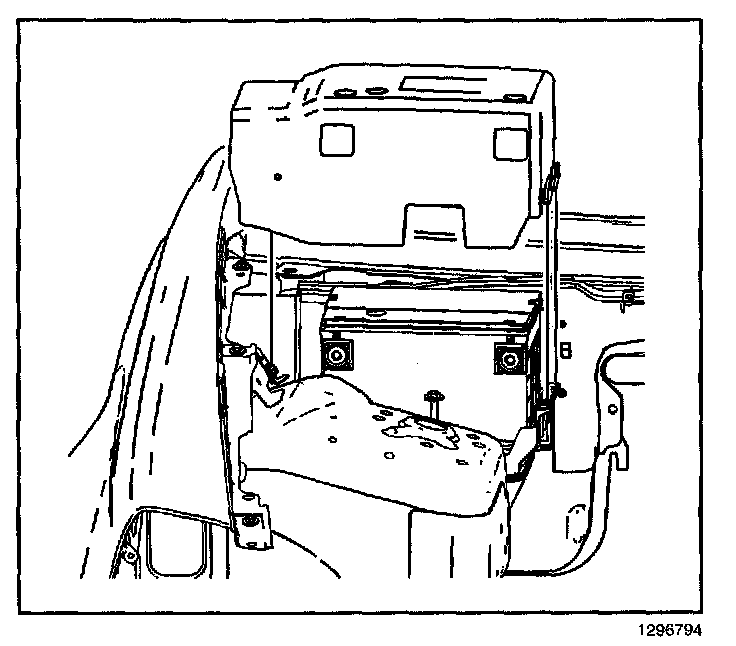

3. Install the battery heat shield.

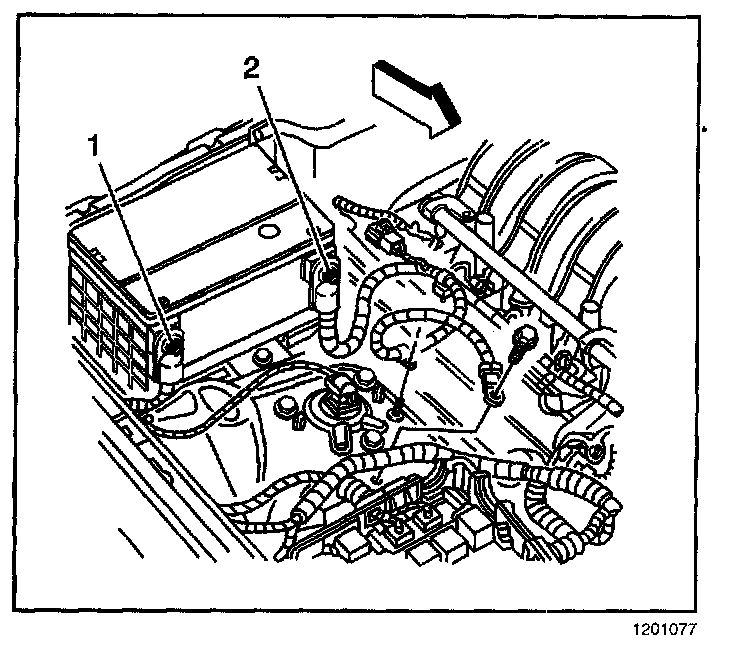

4. Connect the battery positive cable (1) to the battery.
Tighten
Tighten the battery cable bolt to 22 N.m (16 lb ft).
5. Connect the battery negative cable (2).
