Recall - Automatic Transmission Shifter Modification: Overview
# 08178A: Product Safety - Automatic Transmission Shift Lever Shifts Out of Park - (Jan 9, 2009)Subject:
08178A - Automatic Transmission Shift Lever Shifts Out of Park
Models:
2004 Cadillac SRX
With Automatic Transmission
This bulletin has been revised to include service repair information to prevent damage to the BTSI solenoid cradle tabs and/or the park override arm. Please discard all copies of bulletin 08178, issued November 2008.
Condition
General Motors has decided that a defect, which relates to motor vehicle safety, exists in certain 2004 model year Cadillac SRX vehicles equipped with an automatic transmission. Some of these vehicles have a condition in which the transmission shift lever can be moved from the PARK position with the ignition ON and without the operator depressing the brake pedal or, in some cases, the shifter can be moved from the PARK position with the ignition turned off. If the vehicle is parked, or is parked on a slope, this condition could allow the vehicle to roll, increasing the risk of a crash.
Correction
Dealers are to replace the pawl stopper and a bushing within the shifter assembly.

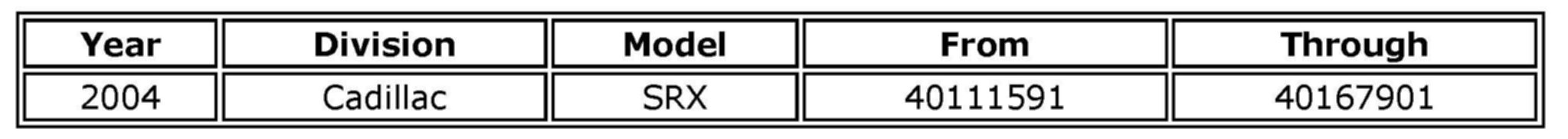

Vehicles Involved
Involved are certain 2004 model year Cadillac SRX vehicles equipped with an automatic transmission and built within the VIN breakpoints above.
Important:
Dealers are to confirm vehicle eligibility prior to beginning repairs by using the GM Vehicle Inquiry System (GMVIS). Not all vehicles within the above breakpoints may be involved.
For dealers with involved vehicles, a listing with involved vehicles containing the complete vehicle identification number, customer name, and address information has been prepared and will be provided through the applicable system listed below. Dealers will not have a report available if they have no involved vehicles currently assigned.
- US dealers - GM DealerWorld Recall Information
- Canadian dealers - GMinfoNet Recall Reports
- Export dealers - sent directly to dealers
The listing may contain customer names and addresses obtained from Motor Vehicle Registration Records. The use of such motor vehicle registration data for any purpose other than follow-up necessary to complete this recall is a violation of law in several states/provinces/countries. Accordingly, you are urged to limit the use of this report to the follow-up necessary to complete this recall.

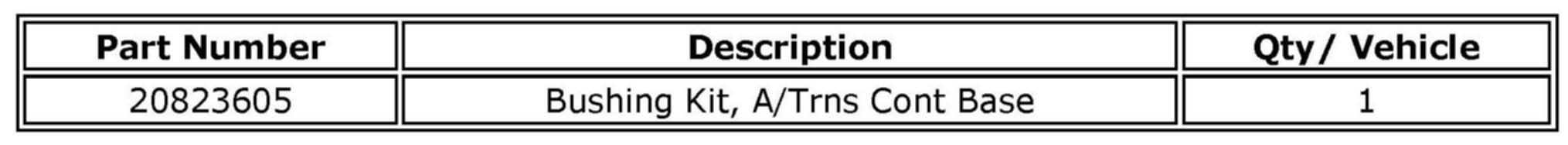

Parts Information
Parts required to complete this recall are to be obtained from General Motors Service and Parts Operations (GMSPO). Please refer to your "involved vehicles listing" before ordering parts. This part is not eligible for RIM Management. Normal orders should be placed on a DRO = Daily Replenishment Order. In an emergency situation, parts should be ordered on a CSO = Customer Special Order.
Customer Reimbursement - For GM US
All customer requests for reimbursement of previously paid repairs for the recall condition will be handled by the Customer Assistance Center, not by dealers.
Important:
(For GM US Only) Refer to the GM Service Policies and Procedures Manual, section 6.1.12, for specific procedures regarding customer reimbursement and the form.
Customer Reimbursement - For Canada and Export
Customer requests for reimbursement of previously paid repairs for the recall condition are to be submitted to the dealer by December 31, 2009.
All reasonable customer paid receipts should be considered for reimbursement. The amount to be reimbursed will be limited to the amount the repair would have cost if completed by an authorized General Motors dealer.
When a customer requests reimbursement, they must provide the following:
^ Proof of ownership at time of repair.
^ Original paid receipt confirming the amount of repair expense(s) that were not reimbiursed, a description of the repair, and the person or entity performing the repair.
Claims for customer reimbursement on previously paid repairs are to be submitted as required by WINS.
Important:
Refer to the GM Service Policies and Procedures Manual, section 6.1.12, for specific procedures regarding customer reimbursement verification.

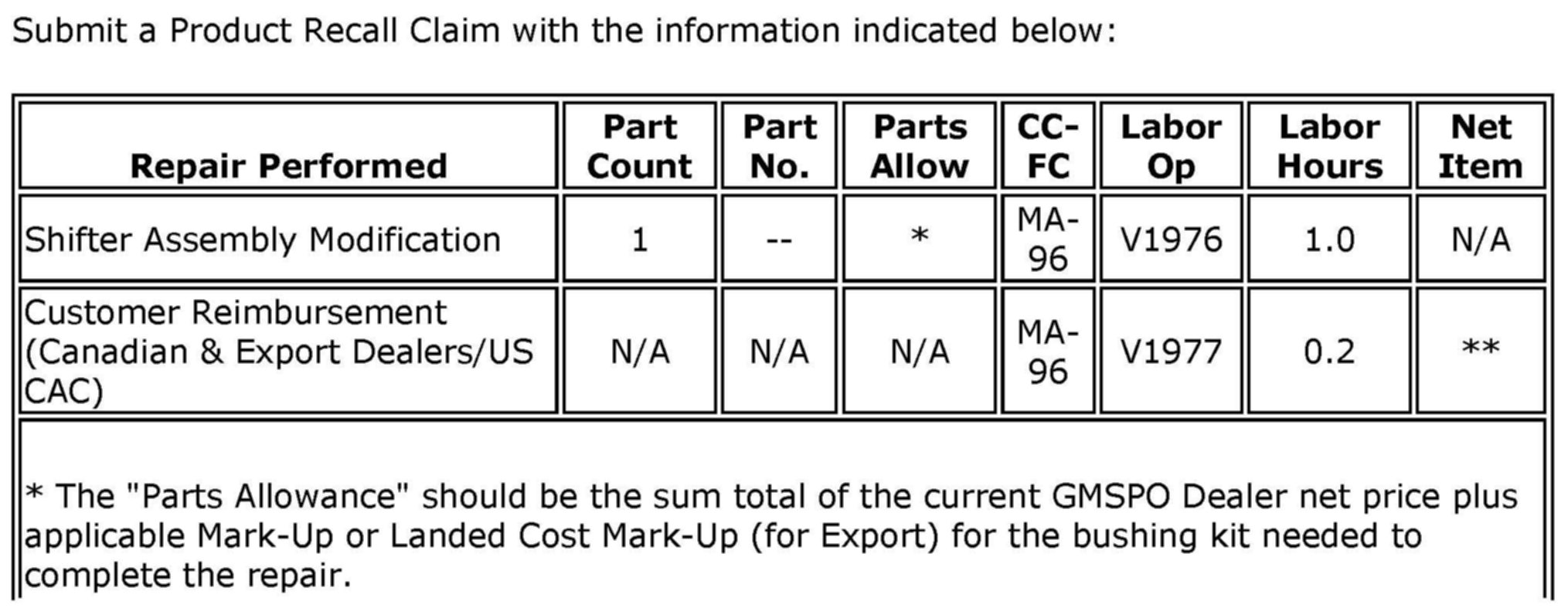

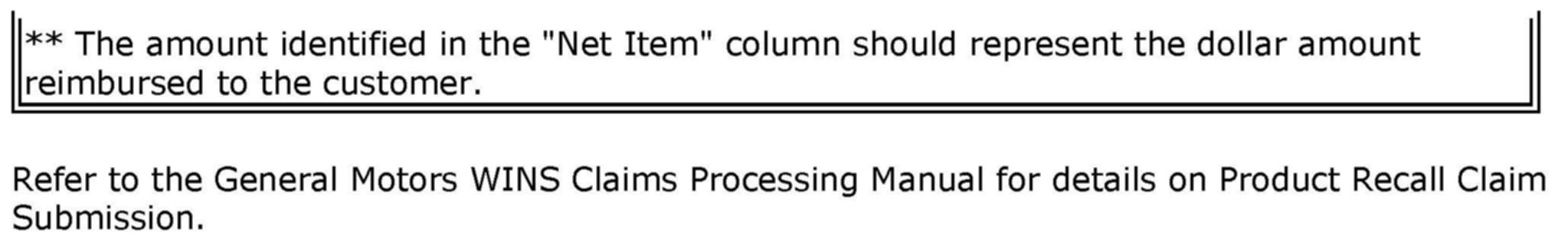

Claim Information
Customer Notification - For US and Canada
General Motors will notify customers of this recall on their vehicle (see copy of customer letter shown in this bulletin).
Customer Notification - For Export
Letters will be sent to known owners of record located within areas covered by the US National Traffic and Motor Vehicle Safety Act. For owners outside these areas, dealers should notify customers using the sample letter.
Dealer Recall Responsibility - For US and Export (US States, Territories, and Possessions)
The US National Traffic and Motor Vehicle Safety Act provides that each vehicle that is subject to a recall of this type must be adequately repaired within a reasonable time after the customer has tendered it for repair. A failure to repair within sixty days after tender of a vehicle is prima facie evidence of failure to repair within a reasonable time. If the condition is not adequately repaired within a reasonable time, the customer may be entitled to an identical or reasonably equivalent vehicle at no charge or to a refund of the purchase price less a reasonable allowance for depreciation. To avoid having to provide these burdensome remedies, every effort must be made to promptly schedule an appointment with each customer and to repair their vehicle as soon as possible. In the recall notification letters, customers are told how to contact the US National Highway Traffic Safety Administration if the recall is not completed within a reasonable time.
Dealer Recall Responsibility - All
All unsold new vehicles in dealers' possession and subject to this recall must be held and inspected/repaired per the service procedure of this recall bulletin before customers take possession of these vehicles.
Dealers are to service all vehicles subject to this recall at no charge to customers, regardless of mileage, age of vehicle, or ownership, from this time forward.
Customers who have recently purchased vehicles sold from your vehicle inventory, and for which there is no customer information indicated on the dealer listing, are to be contacted by the dealer. Arrangements are to be made to make the required correction according to the instructions contained in this bulletin. A copy of the customer letter is provided in this bulletin for your use in contacting customers. Recall follow-up cards should not be used for this purpose, since the customer may not as yet have received the notification letter.
In summary, whenever a vehicle subject to this recall enters your vehicle inventory, or is in your dealership for service in the future, you must take the steps necessary to be sure the recall correction has been made before selling or releasing the vehicle.
