Power Window Motor: Locations

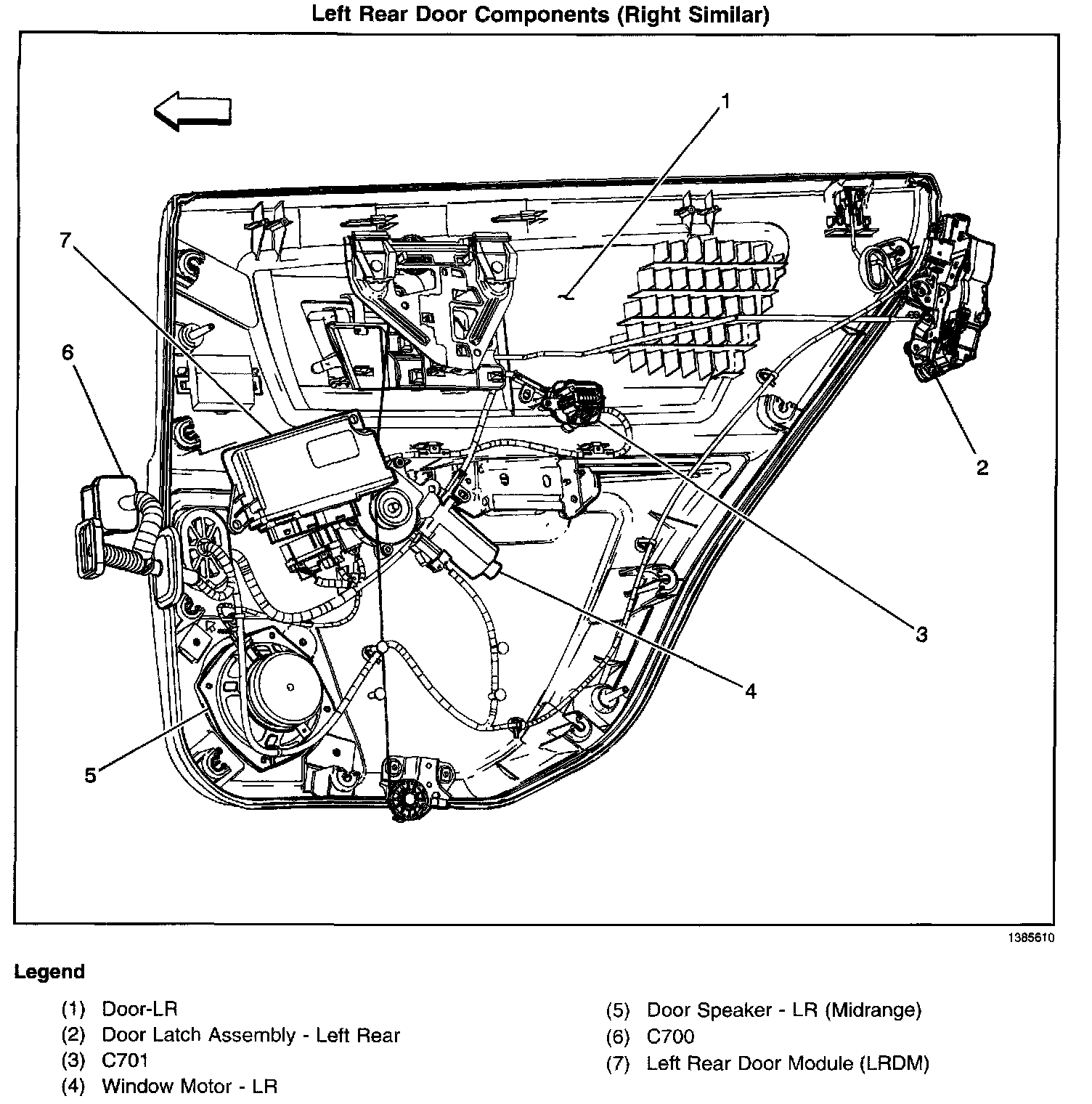

Left Rear Door Components (Right Similar):

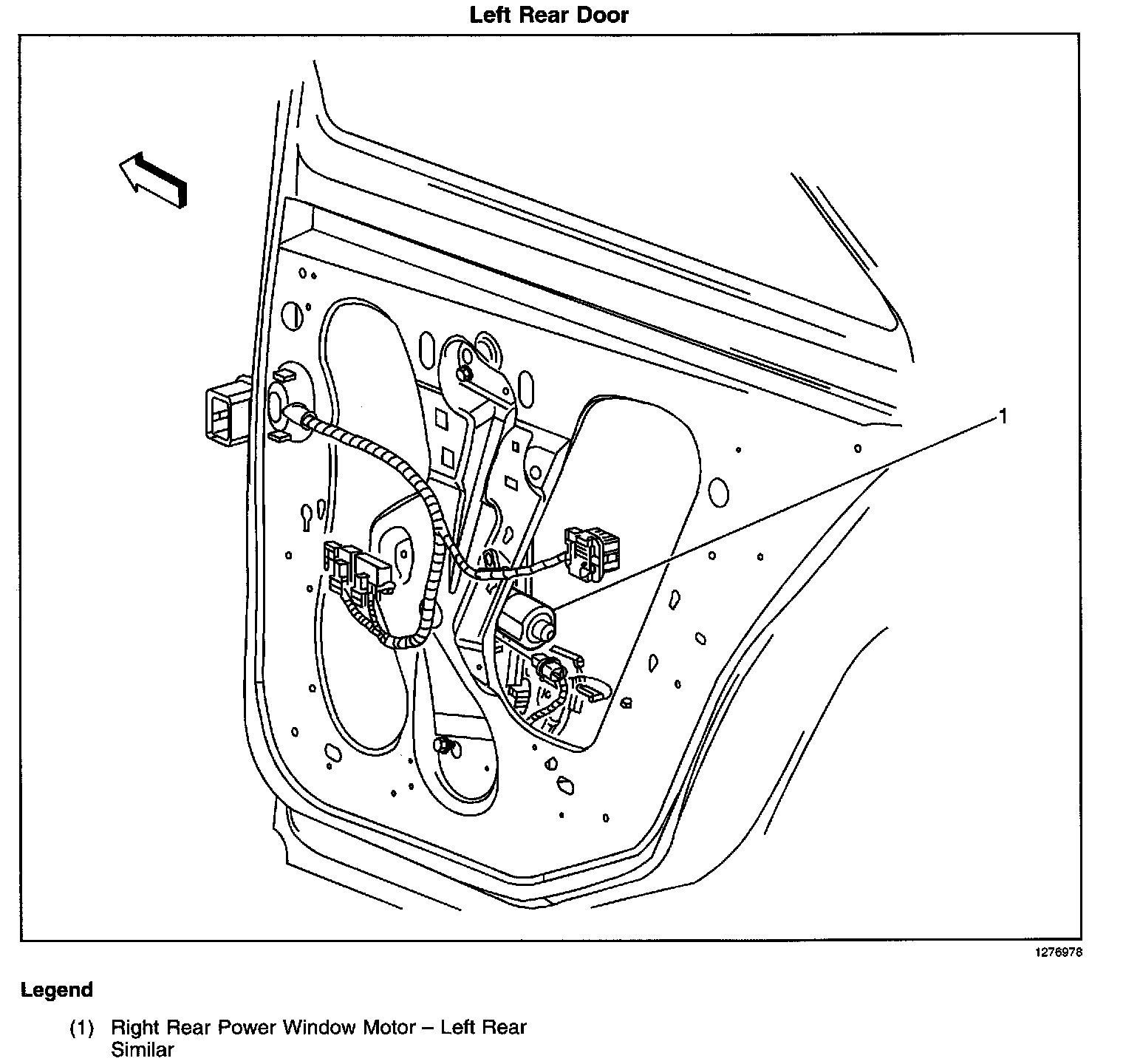

Left Rear Door:

Passenger Front Door:

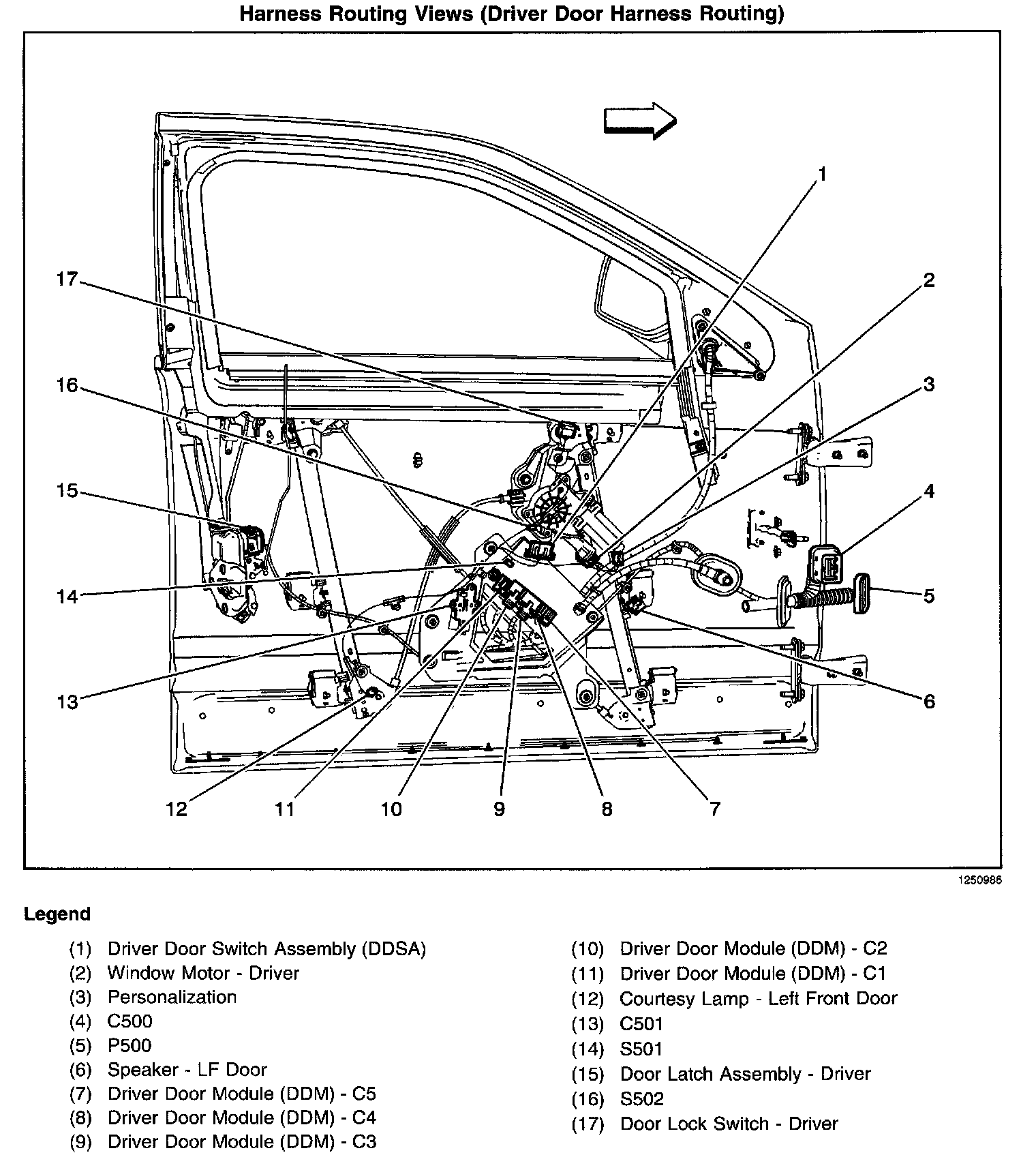

Harness Routing Views (Driver Door Harness Routing):

Harness Routing Views (Left Rear Door Harness Routing):
