Auxiliary Power Outlet
Auxiliary Power Outlet

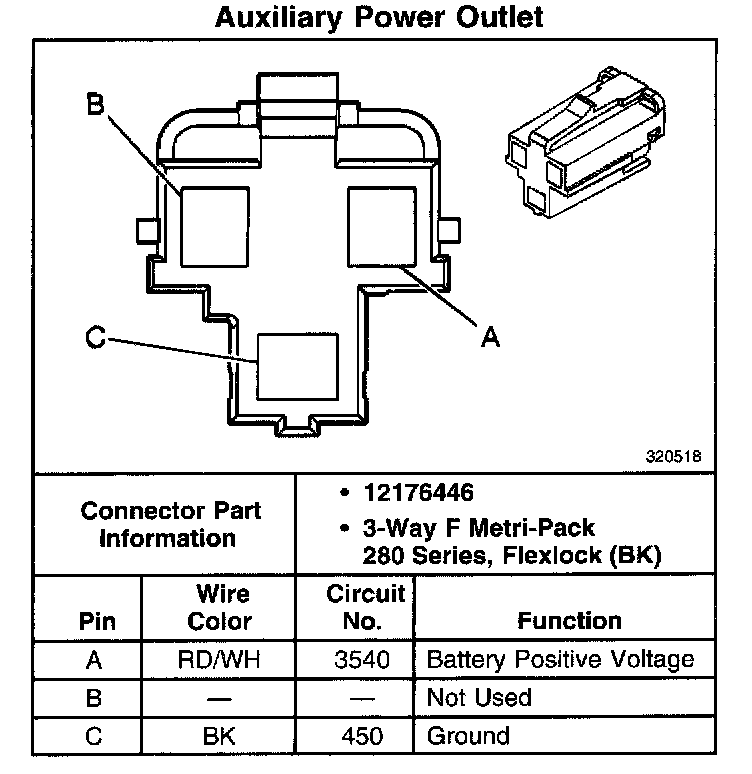

Auxiliary Power Outlet:

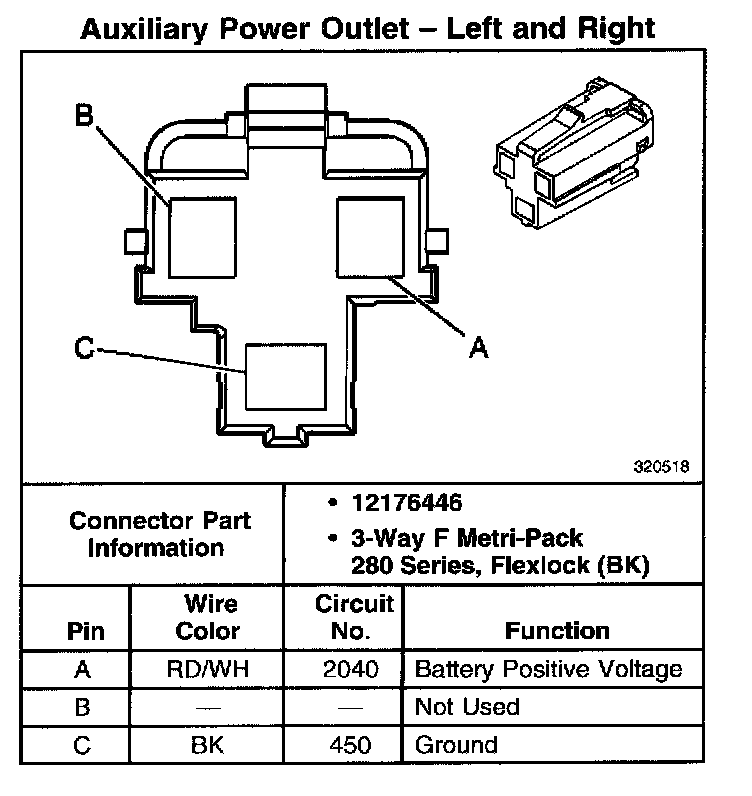

Auxiliary Power Outlet - Left And Right:
