Cadillac
>>
2004
>>
SRX AWD V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>
System Diagram
System Diagram

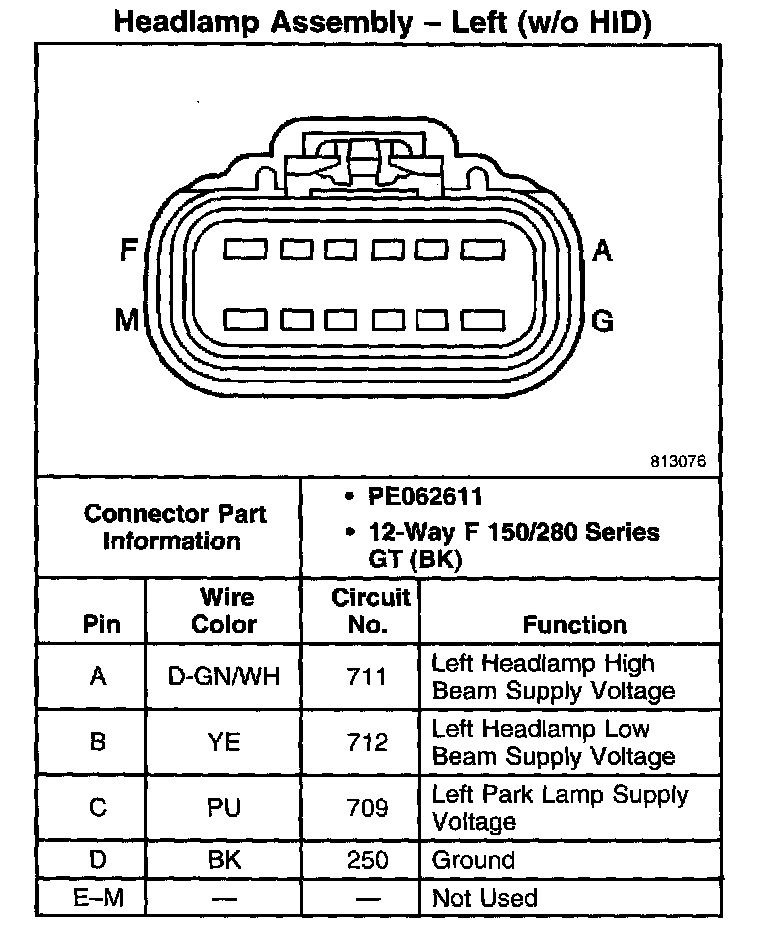

Headlamp Assembly - Left (w/o HID):

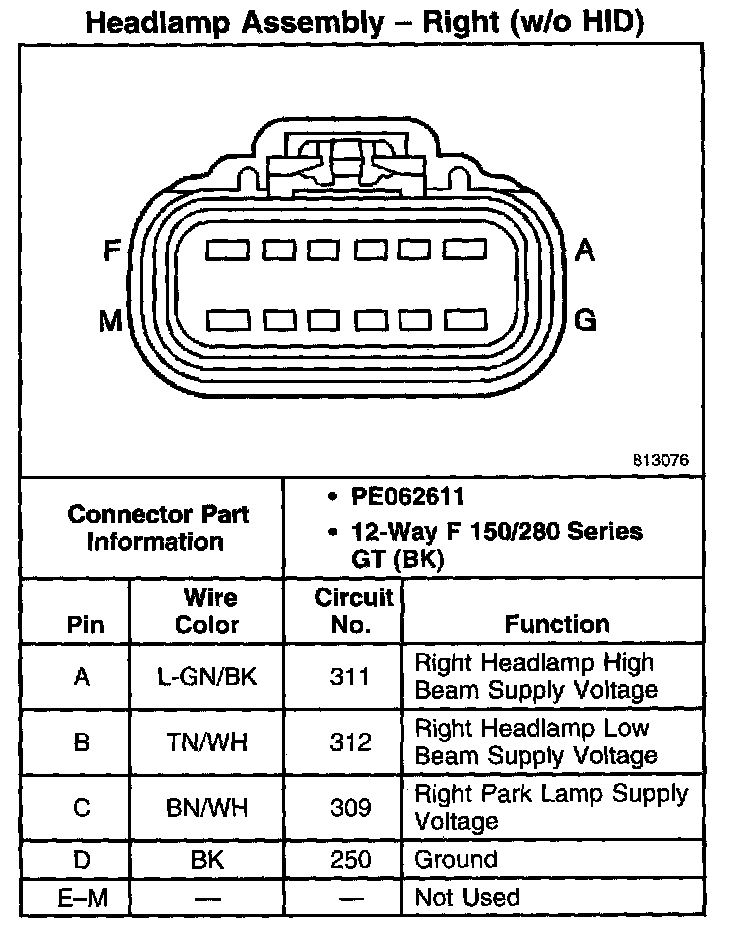

Headlamp Assembly - Right (w/o HID):

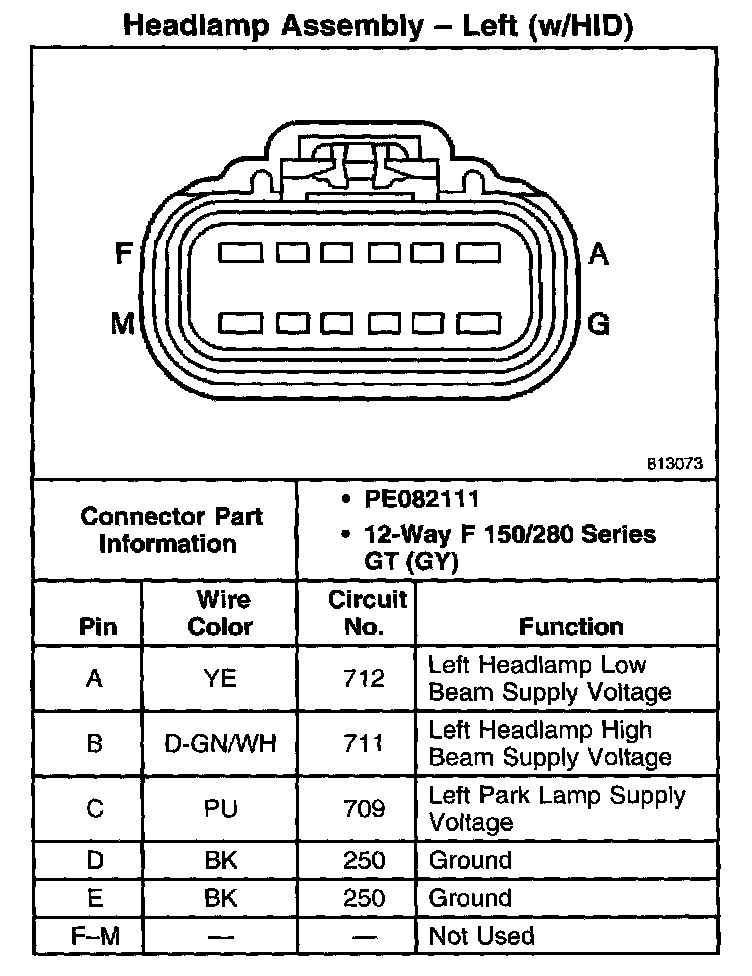

Headlamp Assembly - Left (w/HID):

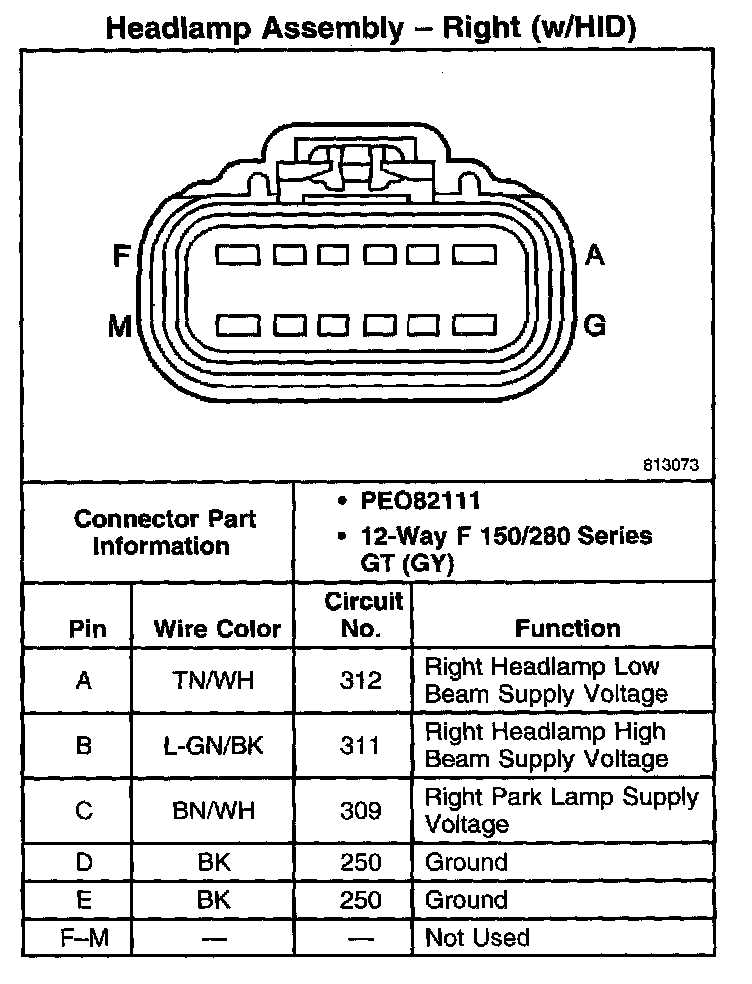

Headlamp Assembly - Right (w/HID):
