Engine Harness Routing Views

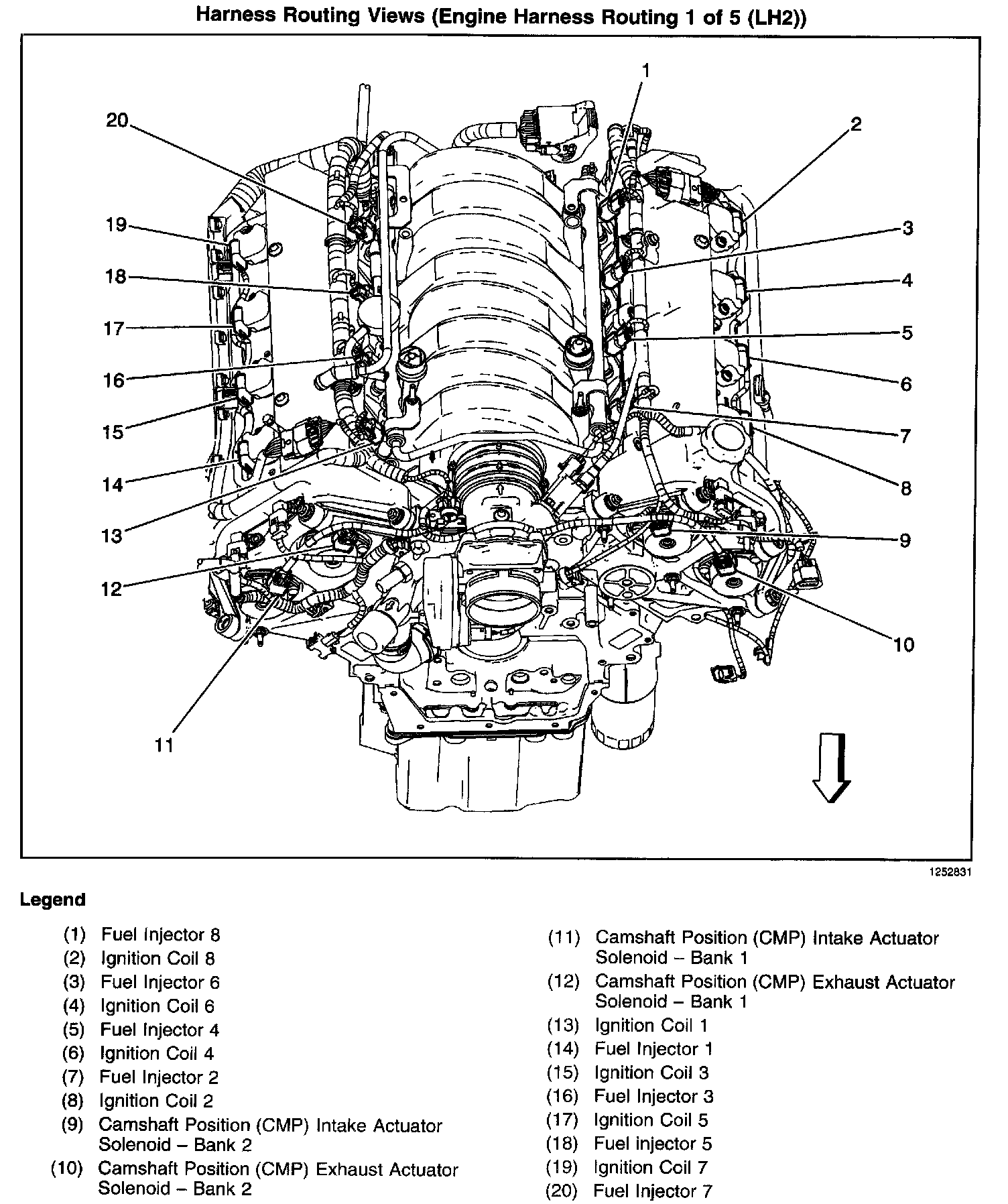

Harness Routing Views (Engine Harness Routing (LH2)):



Harness Routing Views (Engine Harness Routing (LH2)):



Harness Routing Views (Engine Harness Routing (LH2)):



Harness Routing Views (Engine Harness Routing (LH2)):

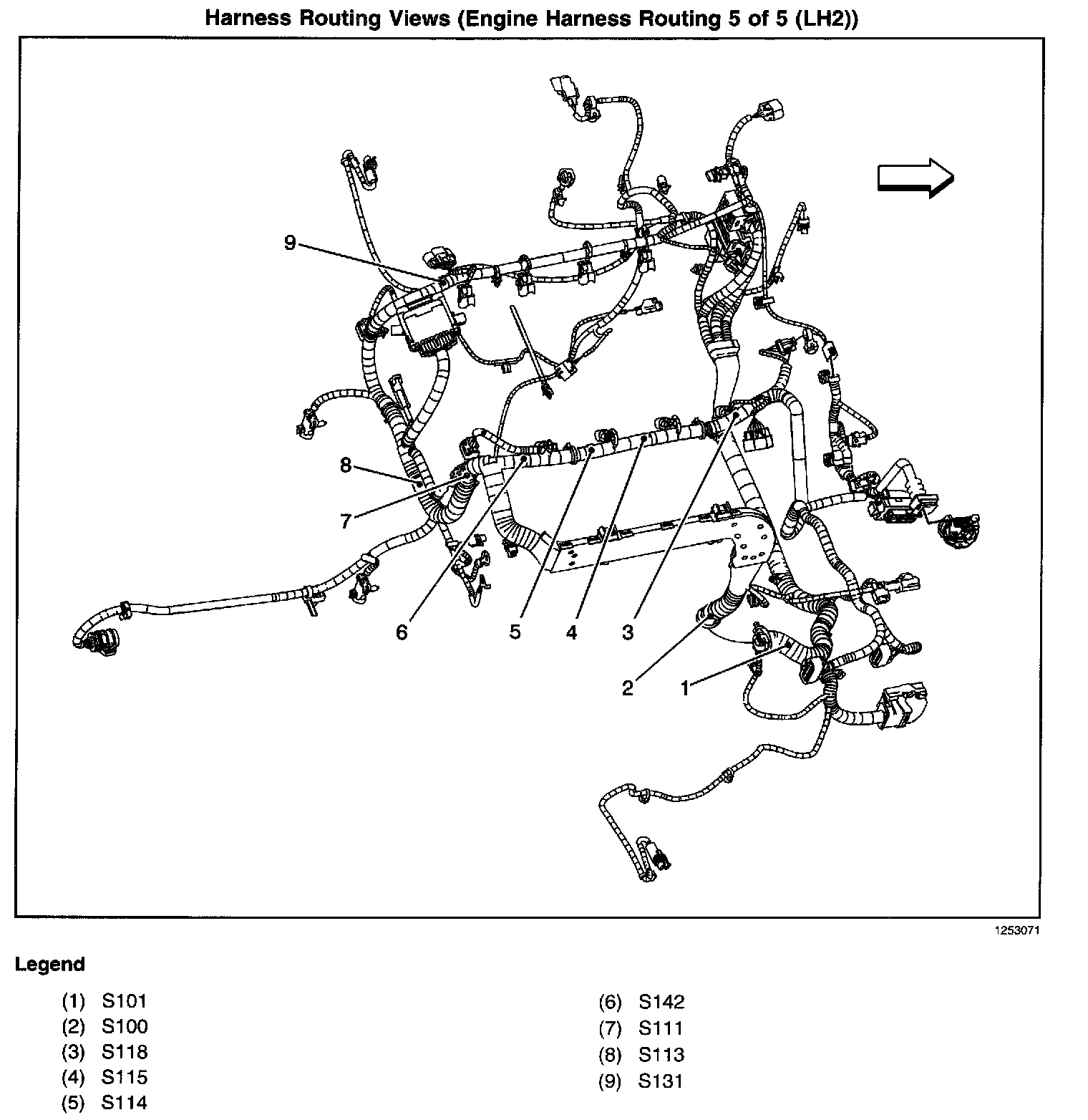

Harness Routing Views (Engine Harness Routing (LH2)):
