Parking Assist Control Module: Locations

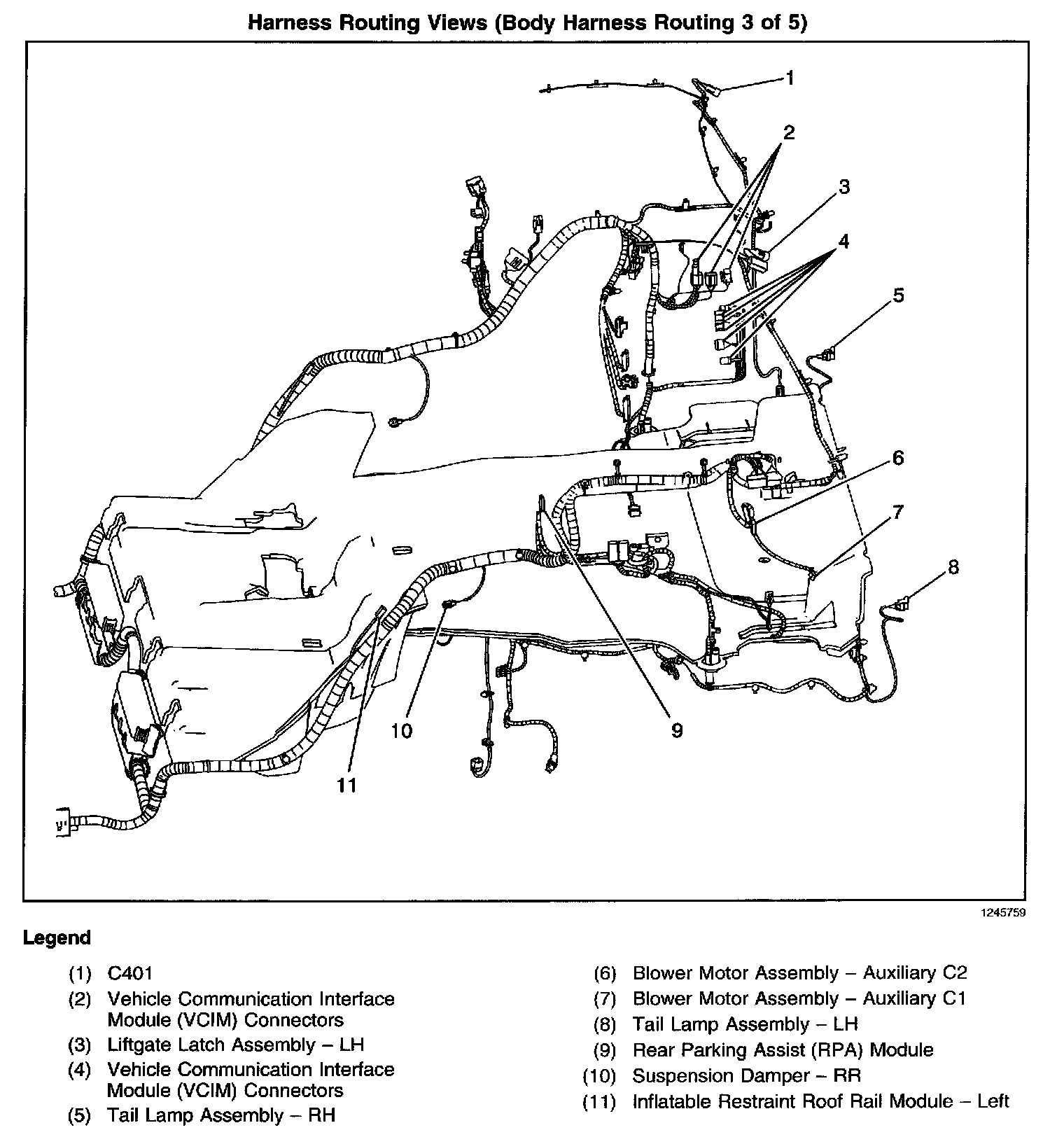

Harness Routing Views (Body Harness Routing):

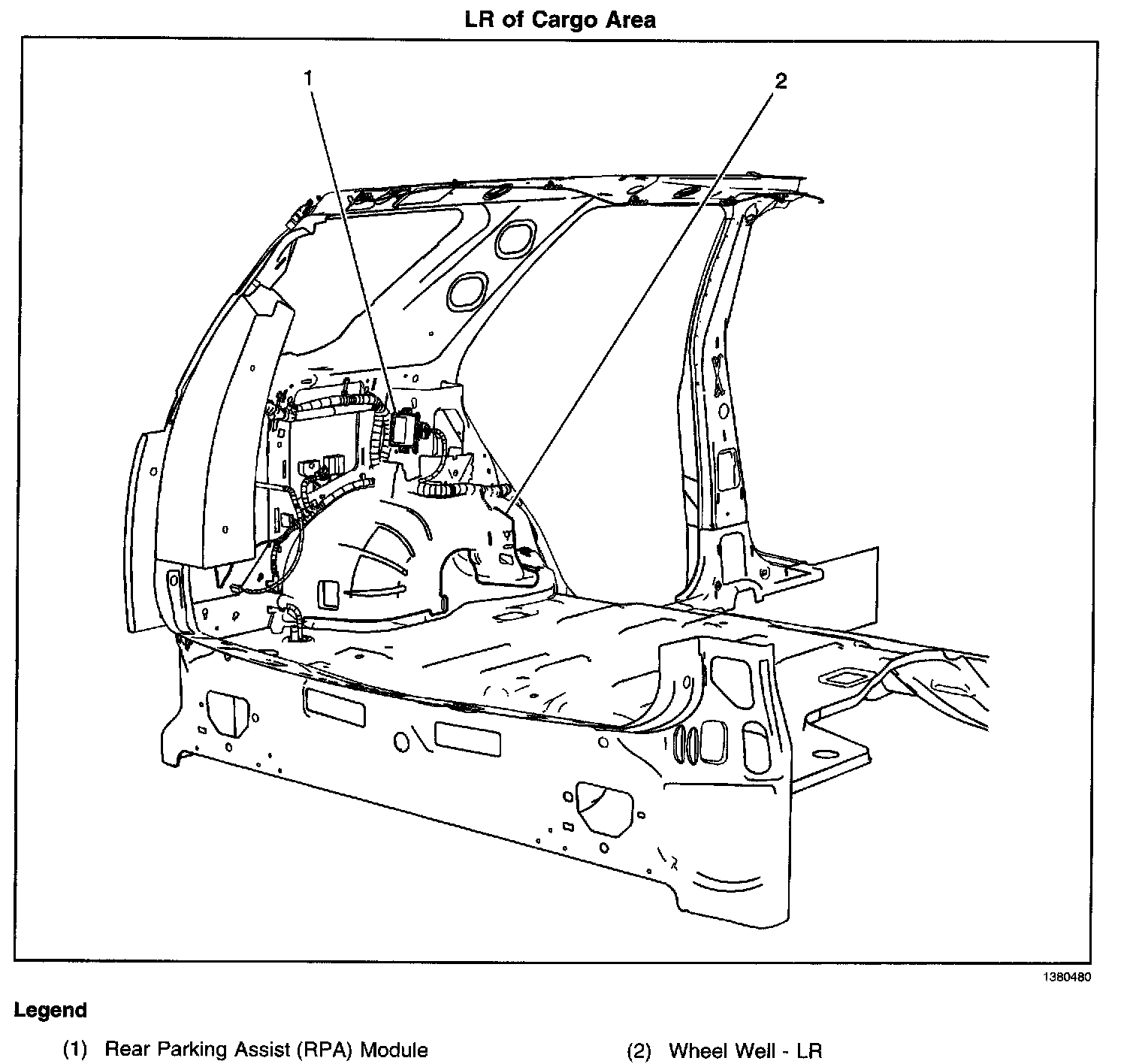

LR Of Cargo Area:
