Parking Assist Control Module: Service and Repair

REAR OBJECT ALARM DETECTION MODULE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the left rear body side trim.

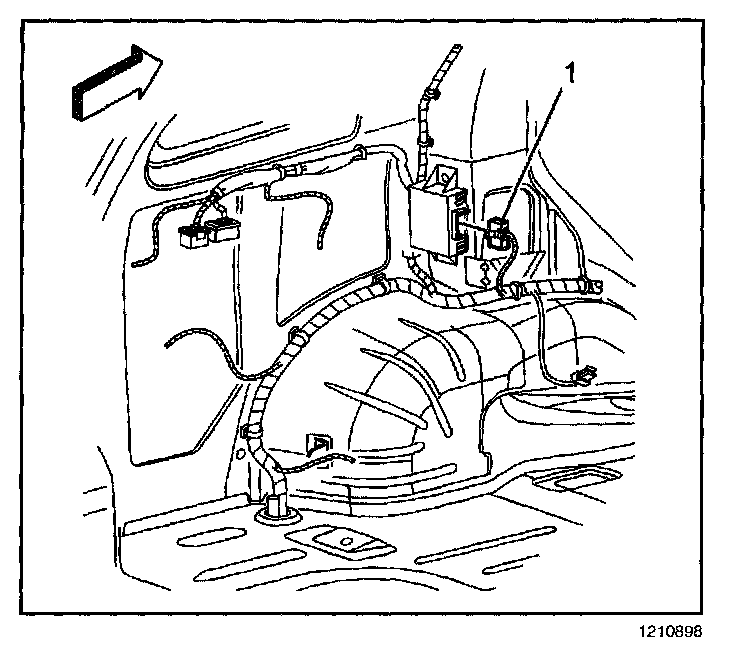

2. Disconnect the RPA module electrical connector (1).

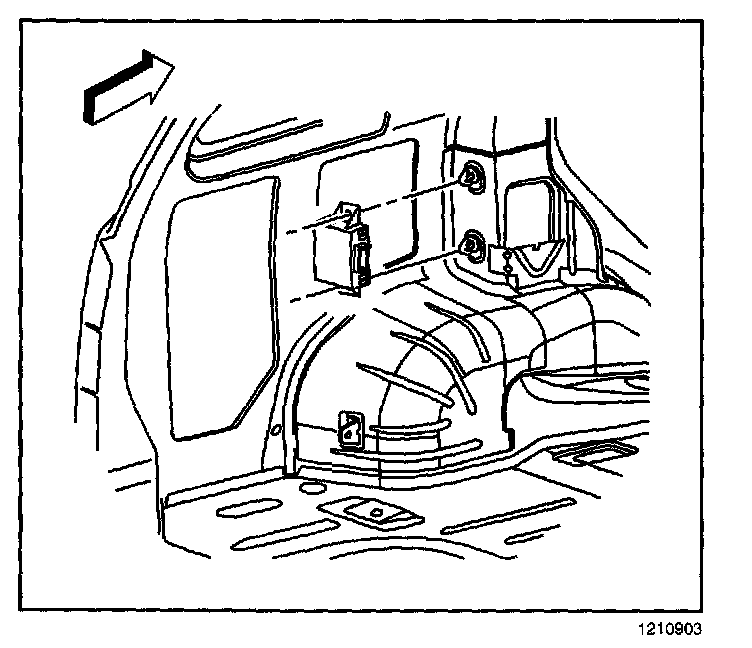

3. Remove the RPA module.

INSTALLATION PROCEDURE

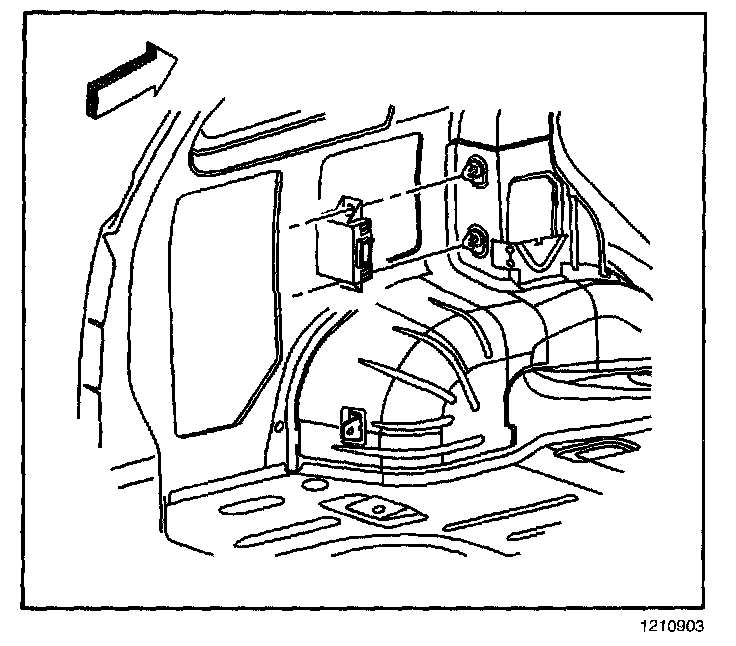

1. Install the RPA module to the retainers.

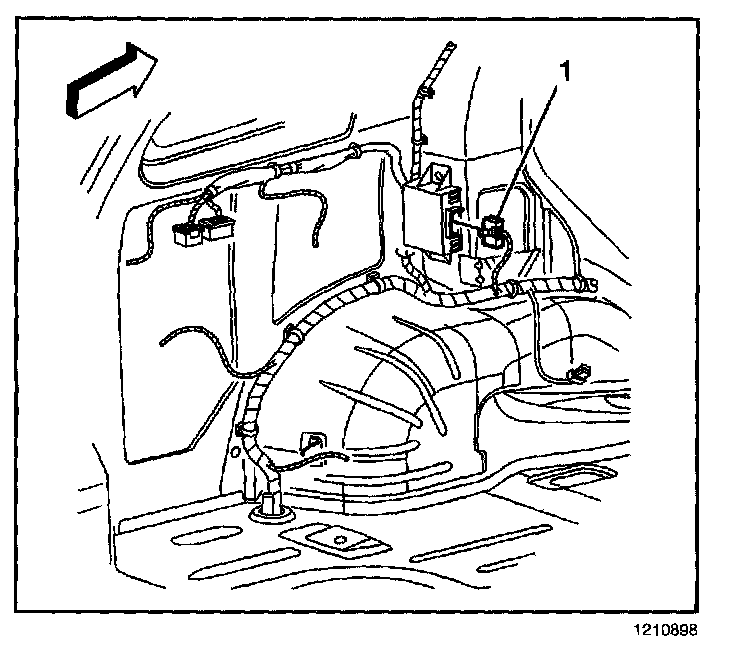

2. Connect the electrical connector (1).
3. Install the rear body side trim.
