Starter Motor: Service and Repair
STARTER MOTOR REPLACEMENTREMOVAL PROCEDURE
1. Disconnect the battery negative cable.
2. Remove the intake manifold.

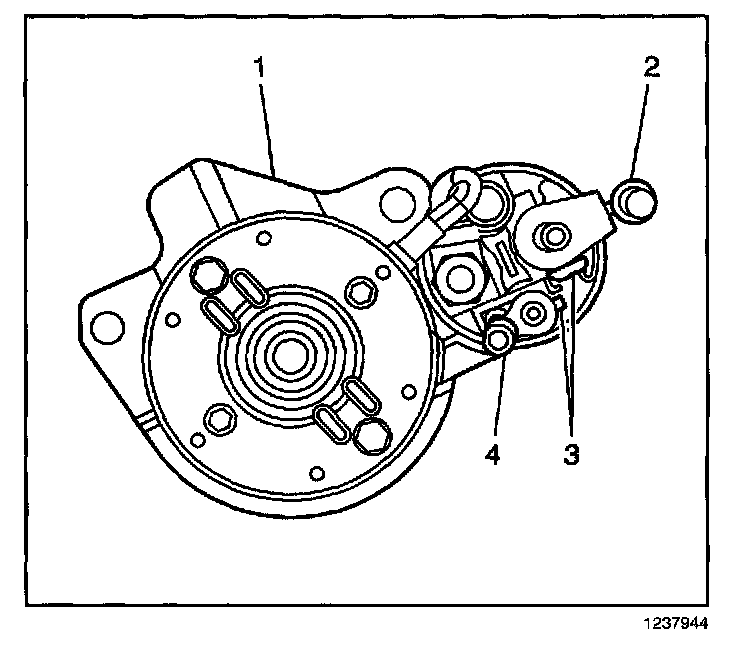

3. Disconnect the battery positive cable (2) from the starter.
4. Disconnect the wire (4) from the "S" terminal on the starter.

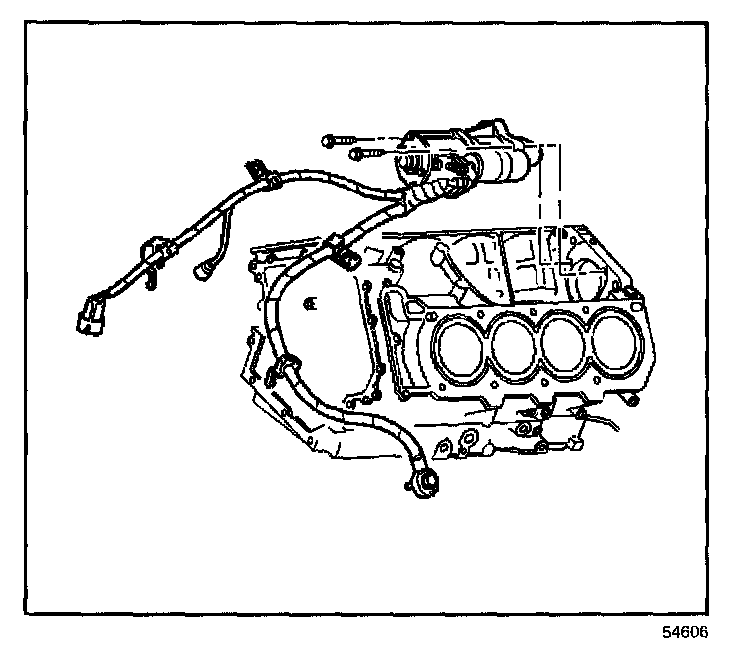

5. Remove the starter motor mounting bolts.
6. Remove the starter motor from the engine.
INSTALLATION PROCEDURE

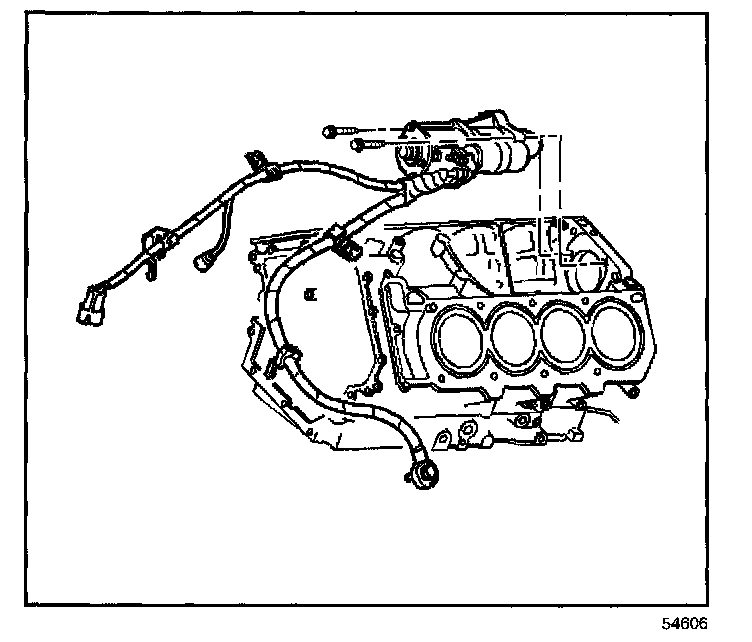

1. Install the starter motor to the engine.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the starter motor mounting bolts.
Tighten
Tighten the starter motor mounting bolts to 30 N.m (22 lb ft).

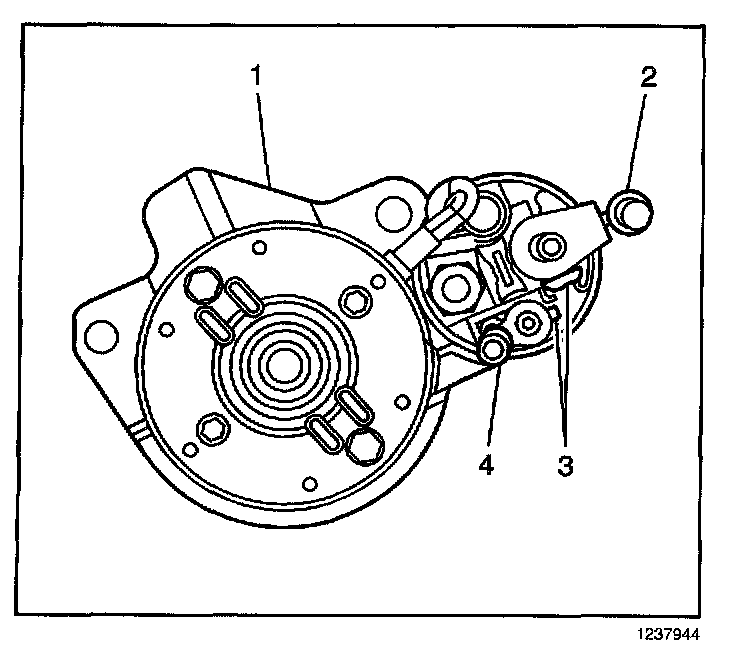

3. Connect the wire (4) and nut to the "S" terminal on the starter.
Tighten
Tighten the starter solenoid S terminal nut to 3.4 N.m (30 lb in).
4. Connect the battery positive cable (4) and nut to the starter terminal.
Tighten
Tighten the battery cable to starter terminal nut to 9.5 N.m (84 lb in).
5. Install the intake manifold.
6. Connect the battery negative cable.
