Theft Deterrent Exciter Module Replacement

THEFT DETERRENT EXCITER MODULE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the ignition lock cylinder.

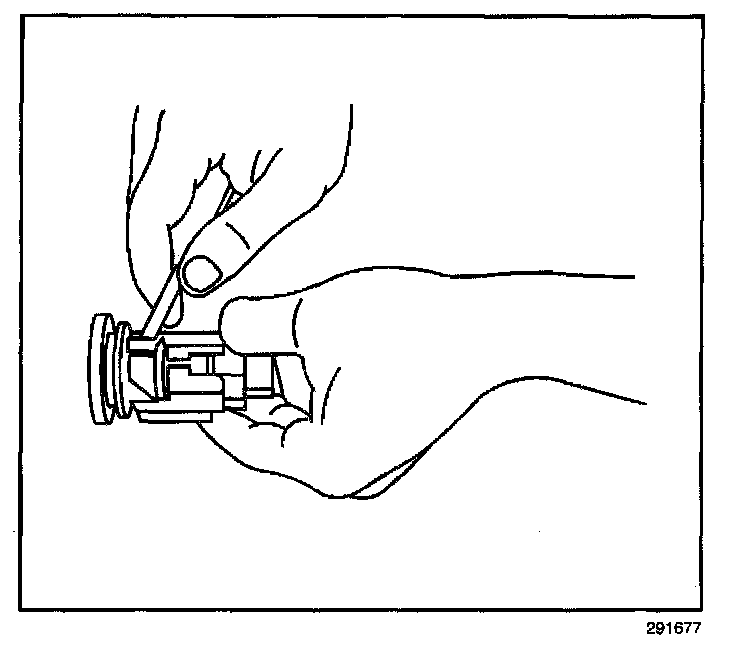

2. Remove the bezel from the ignition lock cylinder, by releasing the retainers.

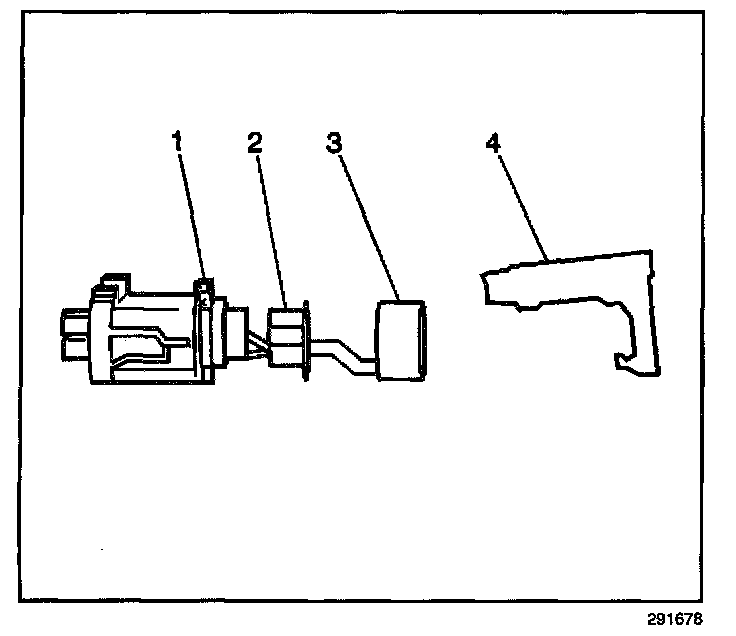

3. Slide the reader/exciter (4) from the ignition lock cylinder housing (1).

INSTALLATION PROCEDURE

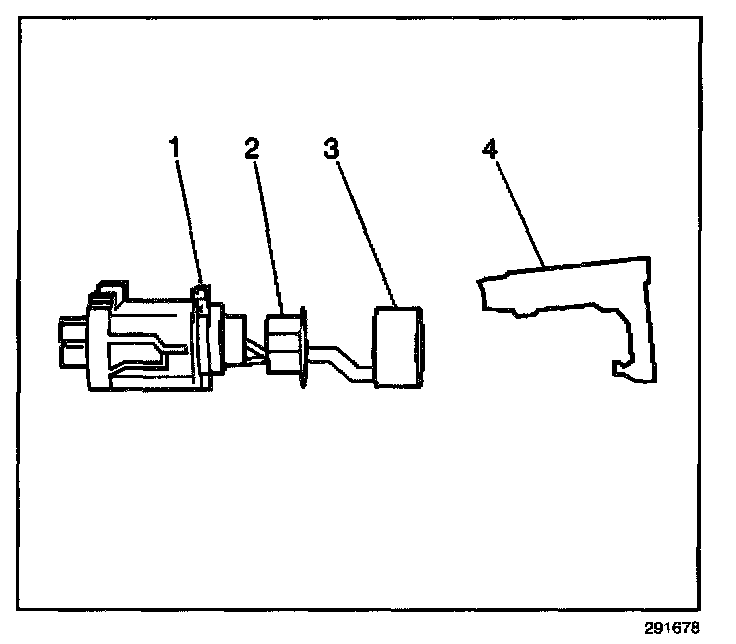

1. Align the reader/exciter (4) with the ignition lock cylinder housing (1) and install the cylinder bezel.
2. Install the ignition lock cylinder bezel.
3. Install the ignition lock cylinder.
