Navigation System: Service and Repair

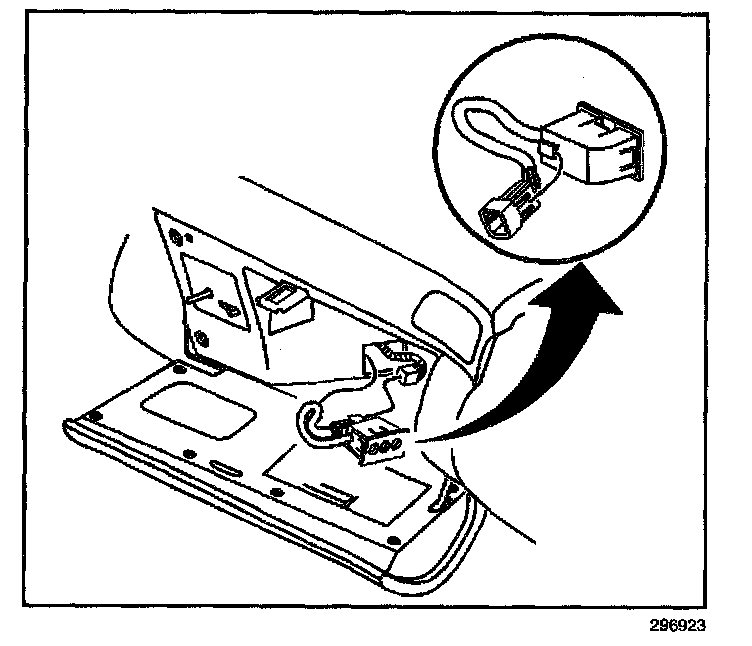

AUDIO/VIDEO WIRING HARNESS REPLACEMENT

REMOVAL PROCEDURE




1. Remove the IP compartment from the IP.
2. Release the tabs retaining the audio video wiring harness to the IP compartment.
3. Remove the audio video wiring harness from the IP compartment.

INSTALLATION PROCEDURE




1. Position the audio video wiring harness to the IP compartment.
2. Push the audio video wiring harness firmly into the opening in the IP compartment in order to engage the locking tabs.
3. Install the IP compartment.
