System Diagram

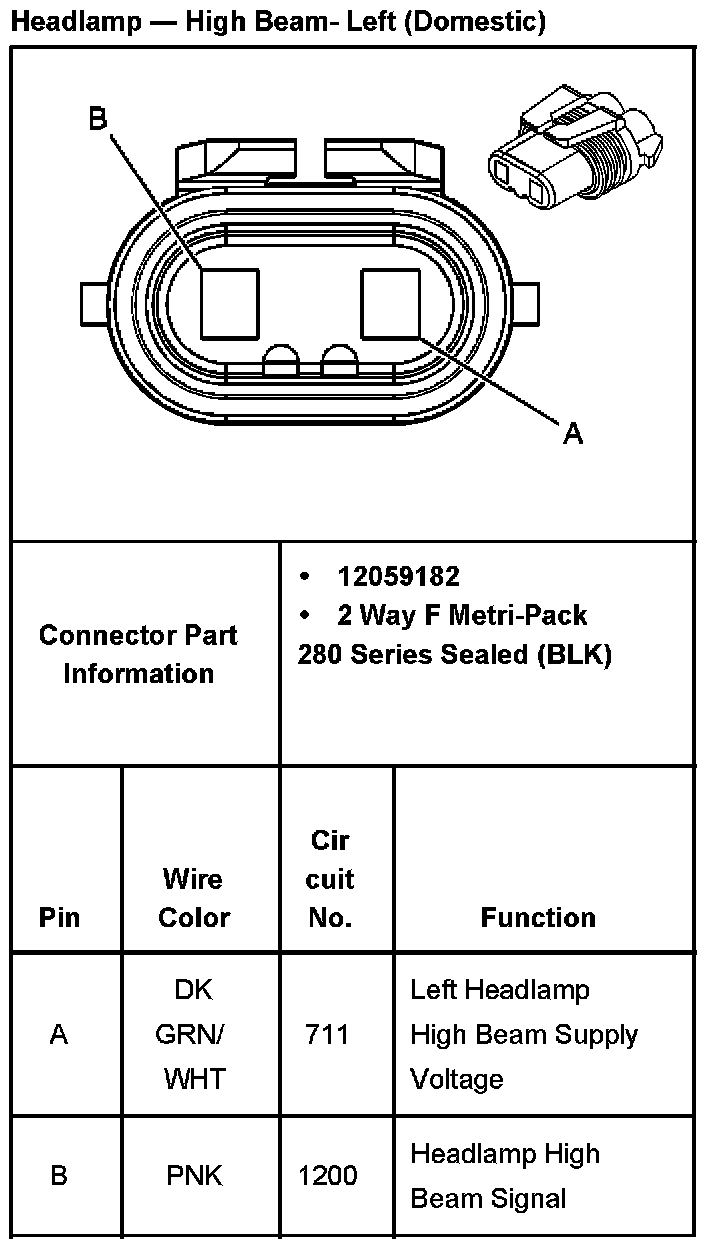

Headlamp - High Beam - Left (Domestic):

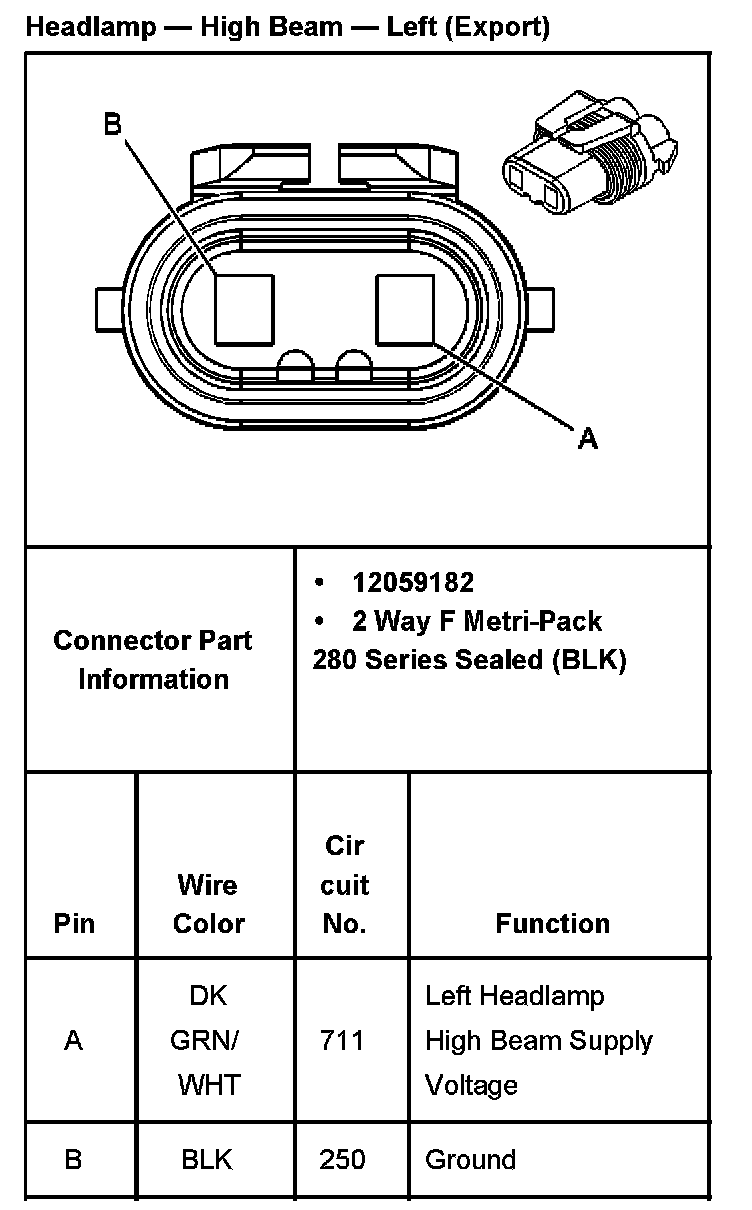

Headlamp - High Beam - Left (Export):




Headlamp - High Beam - Right (Domestic):

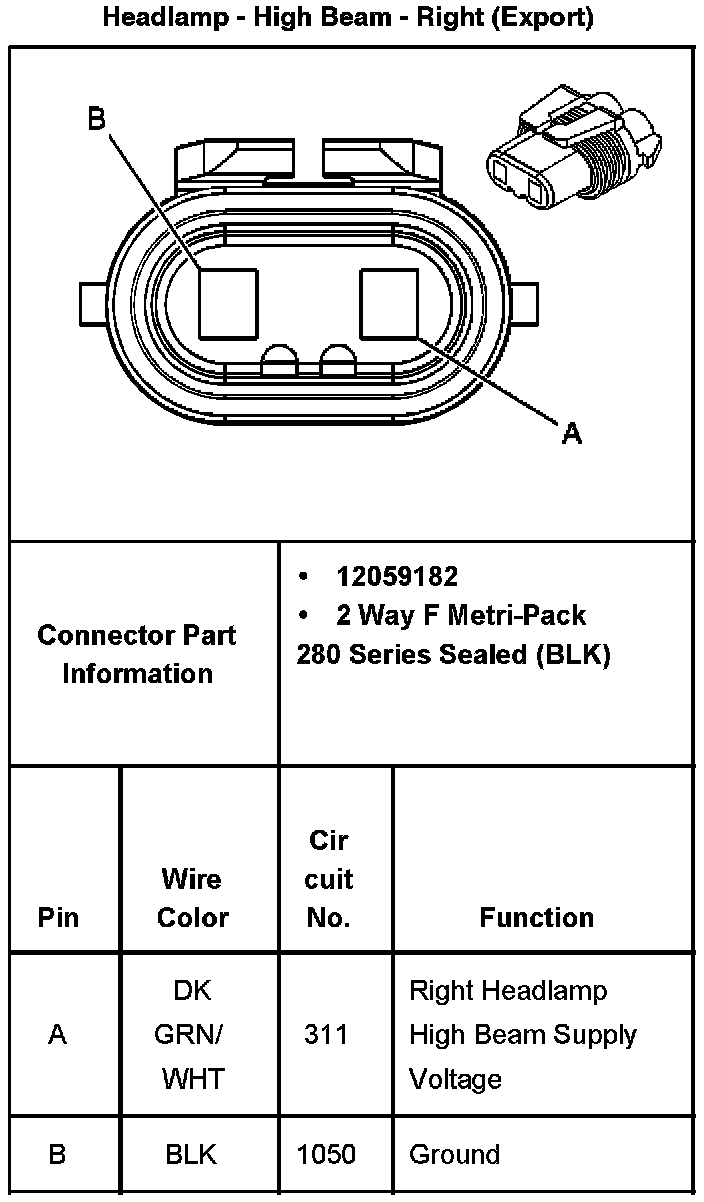

Headlamp - High Beam - Right (Export):

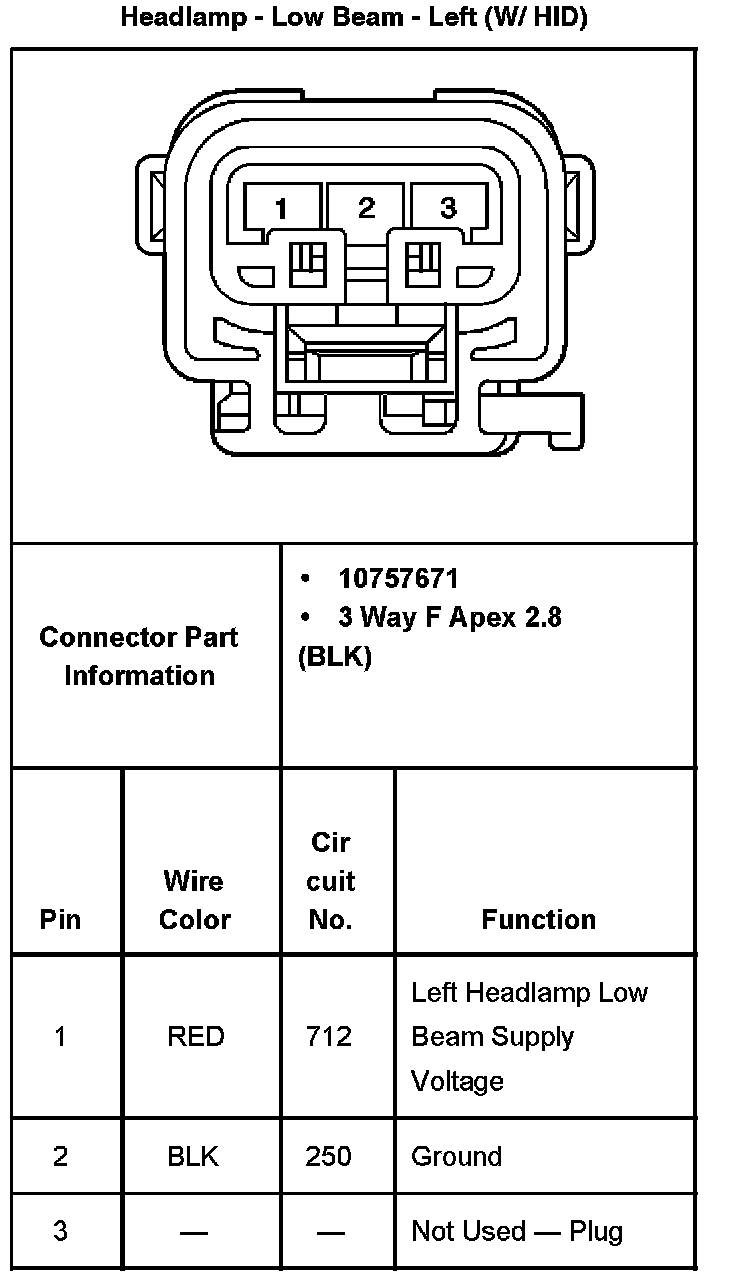

Headlamp - Low Beam - Left (W/ HID):

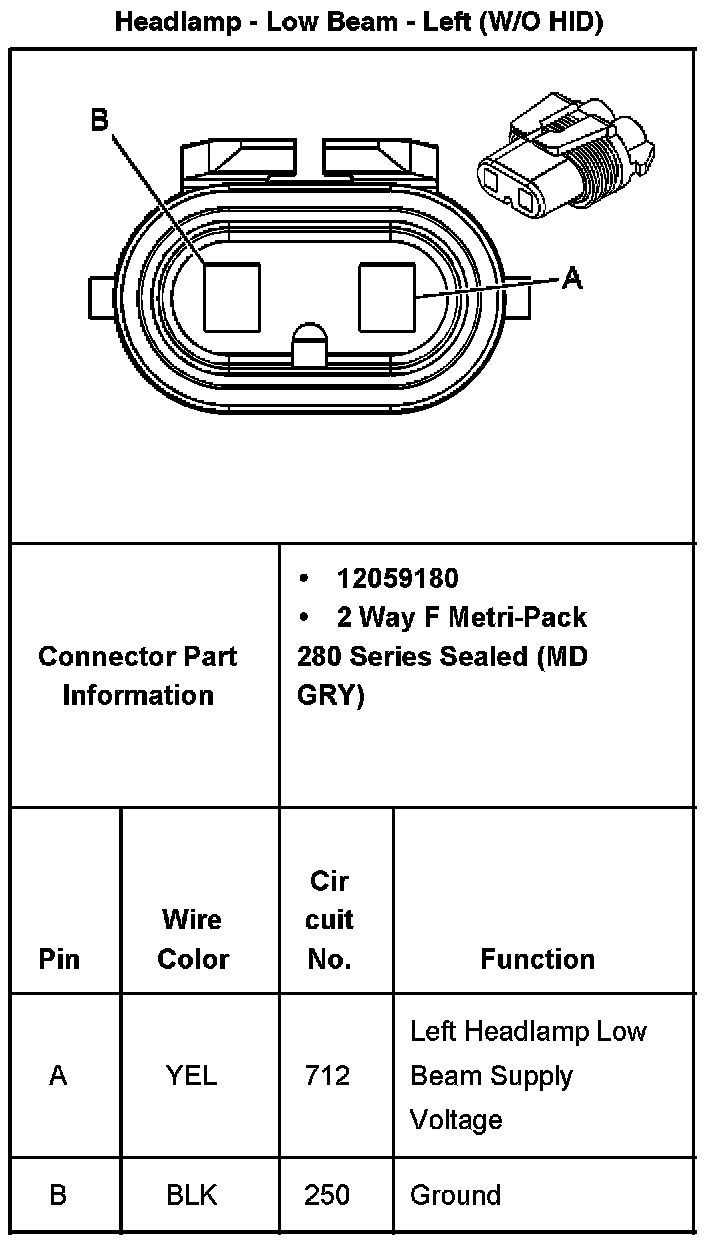

Headlamp - Low Beam - Left (W/O HID):




Headlamp - Low Beam - Right (W/HID):

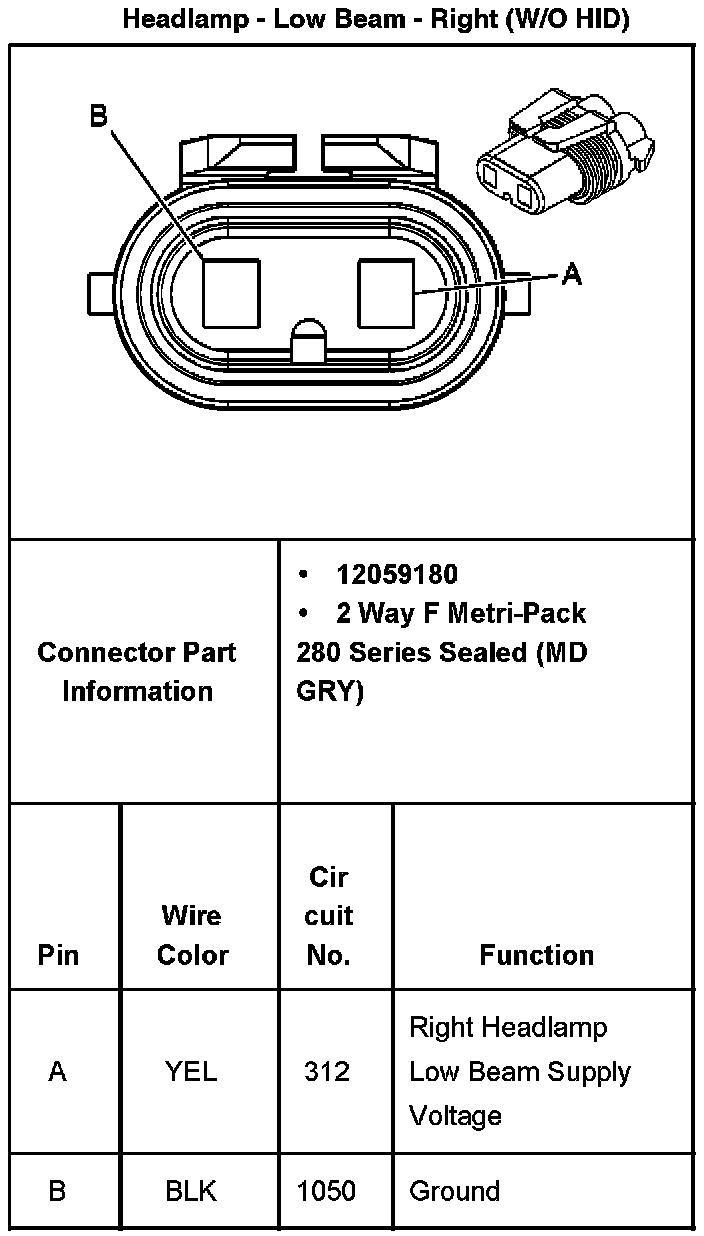

Headlamp - Low Beam - Right (W/O HID):
