Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION (CMP) SENSOR REPLACEMENT

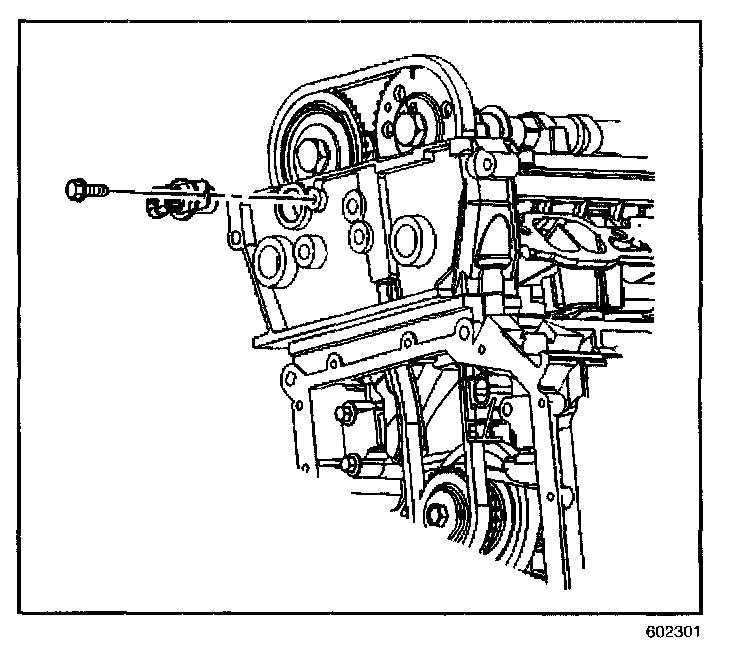

REMOVAL PROCEDURE




1. Remove the camshaft sensor electrical connector.
2. Remove the camshaft retaining bolt.
3. Remove the camshaft sensor.

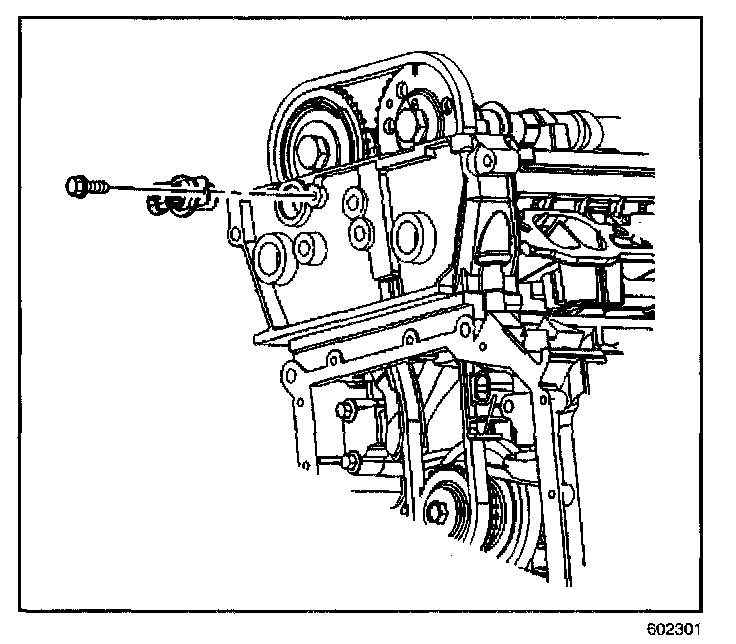

INSTALLATION PROCEDURE

IMPORTANT: Inspect the camshaft sensor 0-ring for wear or damage. If a problem is found, replace the 0-ring.




1. Lubricate the camshaft 0-ring with engine oil.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the camshaft sensor and retaining bolt.

Tighten
Tighten the retaining bolt to 10 Nm (89 lb in).

3. Reconnect the camshaft sensor electrical connector.
4. Operate the engine and inspect the camshaft sensor for engine oil leaks.
